TWIN1212
A 1280×1024/12µm uncooled infrared camera core that delivers ultra-clear images and accurate temperature data for demanding, high-performance applications.
Description
The TWIN1212 uncooled infrared camera core combines a ceramic-package infrared detector developed in-house by GSTiR with high-performance signal processing circuitry and an all-new image algorithm.
Together, these output ultra-clear images and accurate temperature data, making the TWIN1212 well suited to applications that call for high image quality and high performance.
Key Feature
Optimized Design
- Compact size: 33mm×33.4mm×17.6mm (bare module)
- Weighs as little as 20g (bare module)
- Power consumption from just 1W
Excellent Image Quality and Accurate Temperature Measurement
- All-new image algorithm for outstanding image presentation: NUC/3DNR/DNS/DRC/EE
- Temperature measurement ranges of -20℃~150℃ and 0~550℃ (customizable)
- Temperature measurement accuracy of ±2℃ or ±2%
- Android/Windows/Linux/ARM SDKs for video stream analysis and gray-to-temperature conversion
High Versatility
- Operates stably across a wide range of harsh environments
- Multiple image data output interfaces: CMOS/BT.1120
Specification
| Model | TWIN1212/R |
| IR Detector Performance | |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Range | 8~14μm |
| Typical NETD | ＜30mK |
| Image Processing | |
| Frame Rate | 25Hz/30Hz/50Hz |
| Start-up Time | 5s |
| Analog Video | / |
| Digital Video | YUV/BT.1120 |
| Image Display | 11 in Total (White Hot/Lava/Iron Red/Light Green/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Tint/Black Hot) |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Electrical Specifications | |
| Standard External Interface | 50pin_HRS |
| Communication Interface | RS232/USB2.0 |
| Supply Voltage | 5V±0.5V |
| Typical Power Consumption | 1W |
| Temperature Measurement | |
| Working Temperature Range | -10℃~50℃ |
| Temperature Measurement Range | -20℃~150℃, 0℃~550℃ |
| Temperature Measurement Accuracy | Greater of ±2℃ or ±2% |
| SDK | Android/Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Physical Characteristics | |
| Size (mm) | 33×33.4×17.6mm (Bare Module) |
| Weight | 20g (Bare Module) |
| Environmental Adaptability | |
| Working Temperature | -40℃～+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, 3-axis |
| Shock | Half Sine Wave, 40g/11ms, 3-axis, 6-direction |
| Optics | |

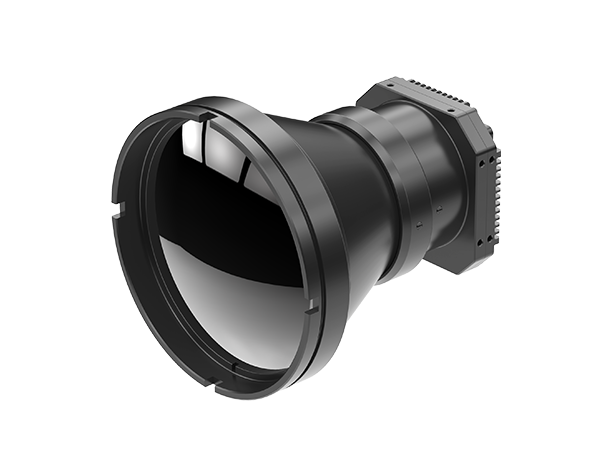

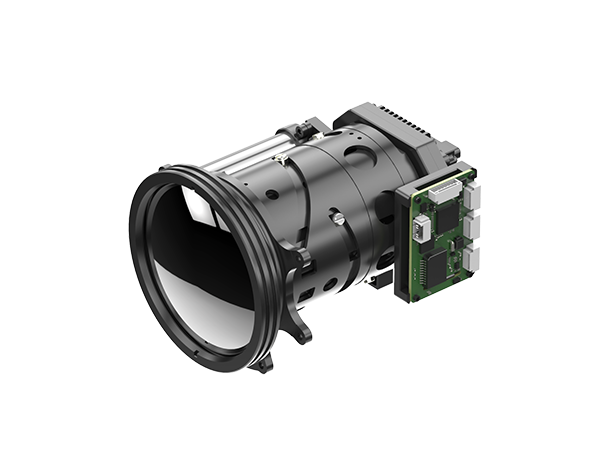

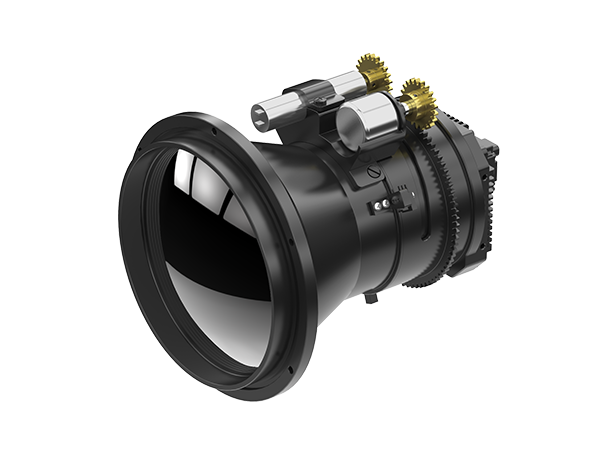

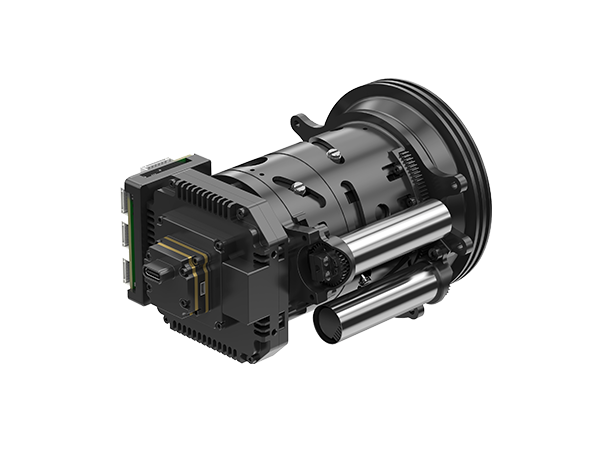

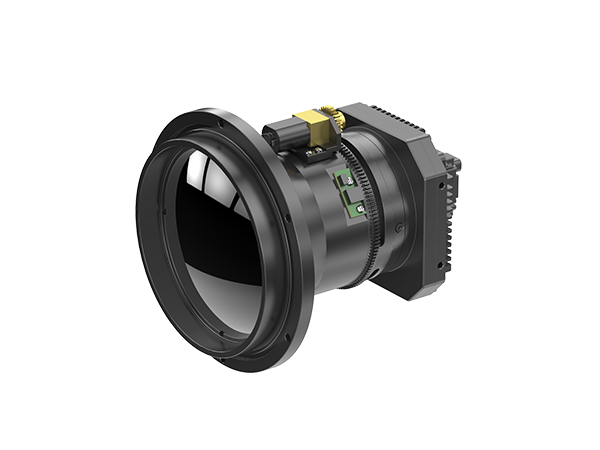

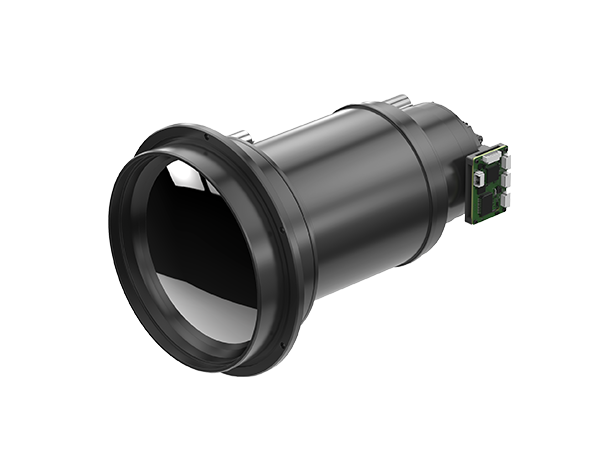

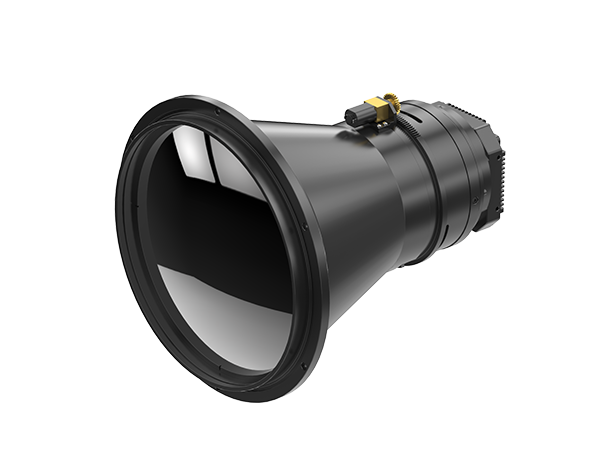

| Optical Lens | Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 28~90mm/30~180mm |
Application
UAV Payloads |
Robots |
Firefighting |
