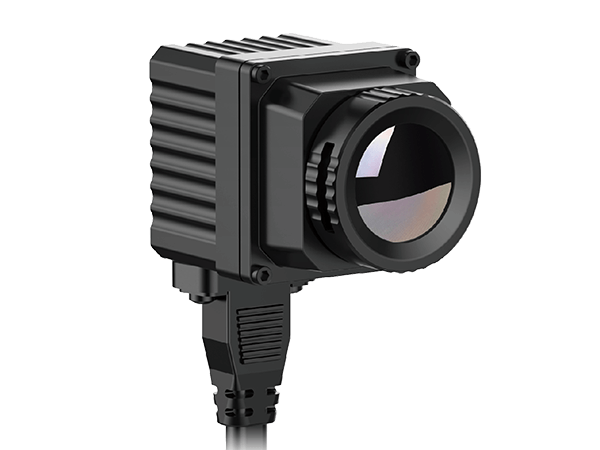

iDAS 384S
A vehicle-mounted 384×288/17μm LWIR thermal module with 300m viewing range and AI-based detection of pedestrians, cyclists and vehicles.
Description
The iDAS384S is one of the iDAS series of vehicle-mounted infrared modules developed by Global Sensor Technology (GST). It integrates a 384×288/17μm uncooled LWIR detector and enhances the driver’s vision in harsh conditions such as total darkness, rain, snow, fog and dust.
With the iDAS384S automotive thermal camera, drivers can see a clear image up to 300 meters ahead, beyond the reach of the vehicle’s headlights, and gain a wider field of view to avoid obstacles and identify targets more effectively. Its intelligent alarm, built on extensive model training and a proven set of AI algorithms, recognizes pedestrians, cyclists and vehicles and issues warnings in advance.
This vehicle-mounted thermal camera also effectively removes glare from the high beams of oncoming vehicles, improving the driver’s awareness of the surroundings and visibility in darkness or bad weather, which helps protect drivers, passengers, pedestrians and vehicles.
Key Feature
Long Viewing Distance
- Clear imaging up to 300 meters ahead, well beyond the reach of vehicle headlights
- Extends the driver’s field of view to help avoid obstacles and identify targets
Intelligent Alerts
- Built on extensive model training and a proven set of AI algorithms
- Detects pedestrians, cyclists and vehicles and issues early warnings
All-Weather Operation
- Resists glare from the headlights of oncoming vehicles at night
- Delivers clear images in harsh conditions such as rain, snow, fog and dust
Easy Integration
- Supports the UDSonCAN protocol (iDAS 384 S)
High Reliability and Stability
- IP67 protection rating
Specification
| Model | iDAS 384 S |
| IR Detector Performance | |
| Resolution | 384×288 |
| Pixel Size | 17μm |
| Spectral Response | 8~14μm |
| Typical NETD | ＜40mk |
| Image Display Performance | |
| Focal Length | 9.7mm |
| Field of View | 37°×28° |
| Video Output Format | FPD-Link Ⅲ |
| Output Image Frame Rate & Resolution | DV 384×288@50Hz |
| System Features | |
| Start-up Time | ≤8s (Room Temperature） |
| Heater | When the Window Temperature is Lower than 2℃±2℃, Start Heating by itself When the Window Temperature is Higher than 7℃±2℃, Turn off Heating by itself |
| Compensation Algorithm | Automatic Shutter Compensation |
| Image Algorithm | Automatic Brightness Contrast / Image Enhancement |
| Communication Interface | RS232, Baud rate: 115200bps |
| Pedestrian / Vehicle Detection | Pedestrian & Vehicle Detection (With Algorithm Control Box) |
| Electrical Features | |
| Supply Voltage | DC8V±0.5V |
| Overall Power Consumption | ≤2W@8V Power Supply, Window Heating is off ≤5W@24V Power Supply, Window Heating is on |
| Operating Range | |
| Identification Range | Person: 1.8m×0.5m ≥150m Car: 2.3m×2.3m ≥300m |
| Recognition Range | Person ≥80m Car ≥100m |
| External Cable Connection | |
| Cable Length | 4m |
| Standard External Interface | Power Supply+Video+Serial port: LKX 06003M-D-1 (HSD LVDS4+2P Assembly Straight Head) |
| Physical Characteristics | |
| Size (mm) | 36.0×36.0×52.0 (Without Cable) |
| Weight | 140g±3g (Without Cable) |
| Environmental Adaption | |
| Operating Temperature | -40°C~+85°C |
| Storage Temperature | -45°C~+90°C |
| Environmental Test | Salt Spray: ISO16750-4 Harsh Level IV Industrial Solvent: GB/T28046.5-2013 |
| Reliability Test | Vibration: ISO16750-3, Grade A Flame Retardant: GB8410, Grade B Stone Shock: ISO16750-3, Grade A ESD: Contact Discharge ± 8kV, Air Discharge ± 15kV |
| Package | Sealed Case IP67 |
| Certification | |
| EMC | / |
Application
ADAS |
