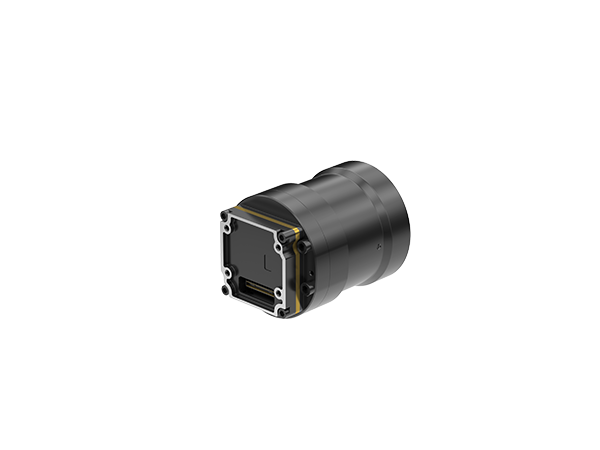

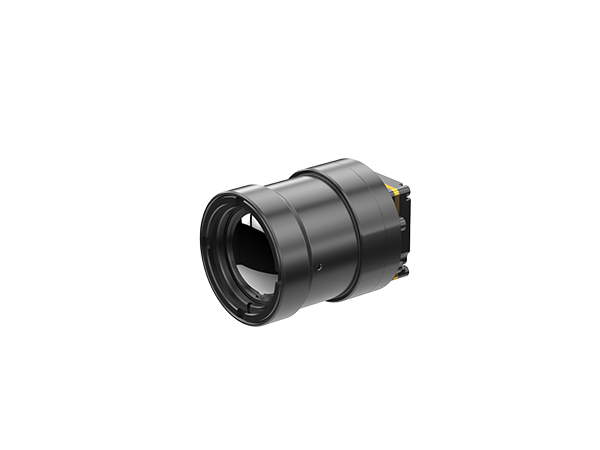

iGS612
A shutterless 640×512/12μm infrared camera core that needs no shutter correction, withstands 1500g@0.4ms impacts and fits within a φ36 outer diameter.
Description
The iGS612 is a 640×512/12μm shutterless infrared camera core from the iGS series. It needs no shutter correction while operating, can cope with strong impacts of 1500g@0.4ms, and avoids the image interruptions and noise that observers otherwise encounter.
To meet the individual needs of integrators, the iGS series supports functions such as a reticle, an external OLED display and keypads, and offers a variety of video interfaces and lens options for straightforward integration.
With a maximum outer diameter of φ36 and a bare-module weight of no more than 28.6g, this high-performance camera core delivers a first-class observation experience even where space and payload capacity are limited.
Key Feature
Shutterless Design
- No shutter correction required during operation
- Silent operation for excellent concealment
High Shock Resistance and Reliability
- Withstands impacts of up to 1500g for a duration of 0.4ms
Small and Lightweight
- Maximum outer diameter ≤φ36 and weight ≤28.6g (bare module)
Rich Functions, Simple Integration
- Supports reticle, picture-in-picture, keypads and more
- Compatible with a variety of video interfaces
- Choice of lenses for different applications: manual focus, motorized and continuous zoom
- Able to drive a range of Micro OLED displays
Specification
| Model | iGS612 | |
| IR Detector Performance | ||
| Resolution | 640×512/12μm | |
| Spectral Response | 8~14μm | |
| Typical NETD | ≤30mk@f1.0/25℃ | |
| Image Display Performance | ||
| Digital Video Format | RAW/YUV | |
| Frame Rate | 25Hz/30Hz/50Hz | |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE | |
| Pseudo Color | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) | |
| Digital Zoom | 1x/2x/4x/8x | |
| Mirror Image | Horizontal/Vertical/Diagonal | |
| Reticle | 10 Types | |
| Reticle Brightness | 10 Levels | |
| Reticle Color | Red, Blue, Yellow, Black, White | |
| Picture in Picture | Support Upper Left/Upper Middle/Upper Right/Picture-in-Picture with Reticle | |
| Zero Calibration | Support | |
| Approximate Ranging | Support | |
| Ranging Calibration | Support | |
| System Function | ||
| Peripheral Drive | Support I2C, 16bit Parallel Port, Datavalid and Other Drive Screen Signals Direct Drive MicroOLED MDP03/MicroOLED MDP02/Ored SVGA060/Sony ECX334A |
|
| Electrical Characteristics | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Digital Video Interface | DVP8/DVP16/USB2.0/LVDS/BT.656 | |
| Communication Interface | RS232-TTL/USB2.0 | |
| Working Voltage | DC: 2.7-5.3v | |
| Power Consumption | 0.5W@23±3℃ | |
| Keypads | ≥3 | |

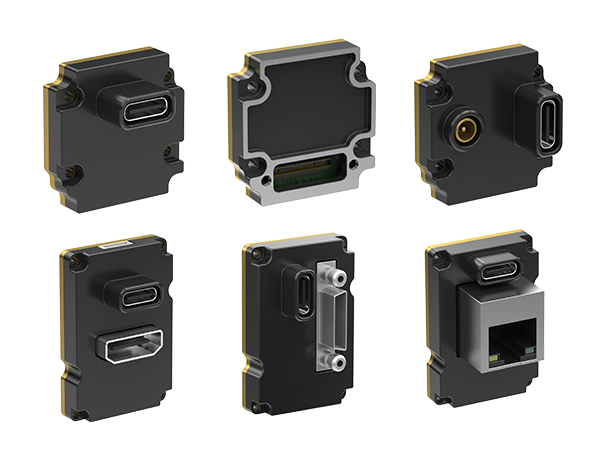

| Extension Components | CameraLink/HDMI/USB3.0/USB2.0/GigE/VPC/MIPI/XGA/HD-SDI/AHDL | |
| Physical Characteristics | ||
| Size (Bare Module) | ≤ φ36 (Max Outer Diameter) | |
| Weight (Bare Module) | ≤28.6g | |
| Environmental Protection | ROHS2.0/REACH | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃ ~ + 70℃ (Imaging) | |
| Storage Temperature | -45℃~+85℃ | |
| Vibration | Random Vibration, 5.35grms, 3-axis | |
| Shock | 1500g@0.4ms | |
| Optics | ||

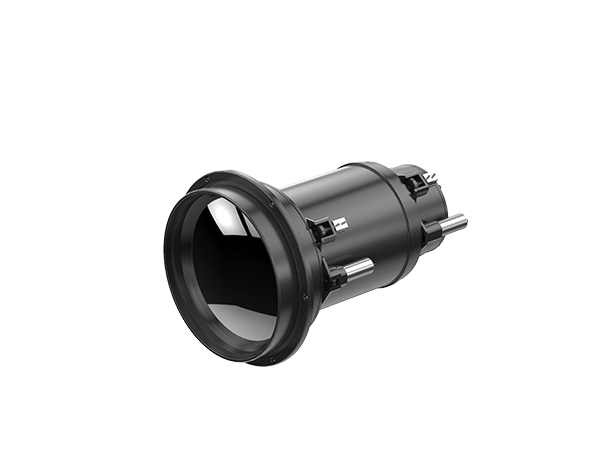

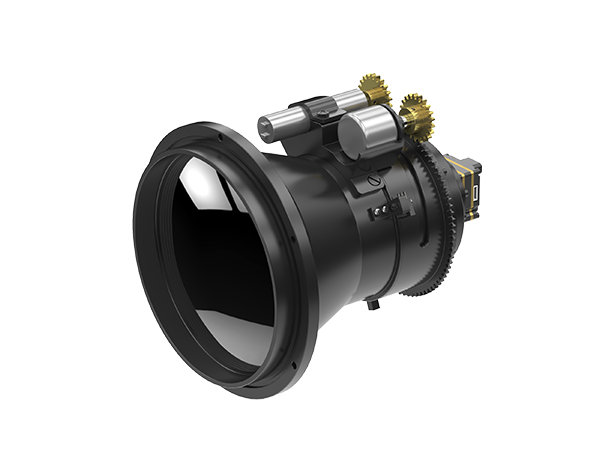

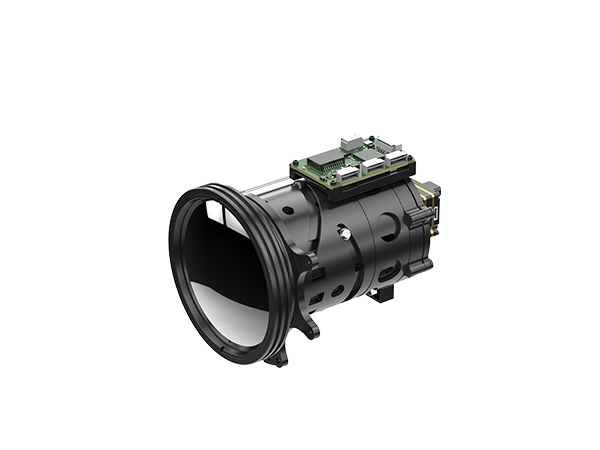

| Optical Lens | Manual Focus: 25mm/35mm/50mm Fixed Focus Athermal: 19mm/25mm/35mm/50mm/70mm/100mm Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 28~90mm/30~180mm |
|
Application

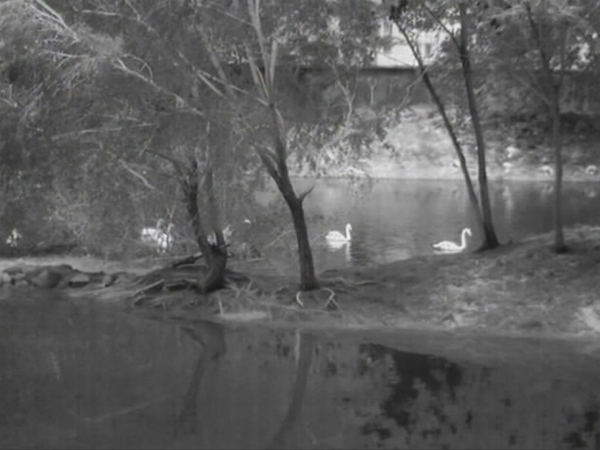

Outdoors |
UAV Payloads |

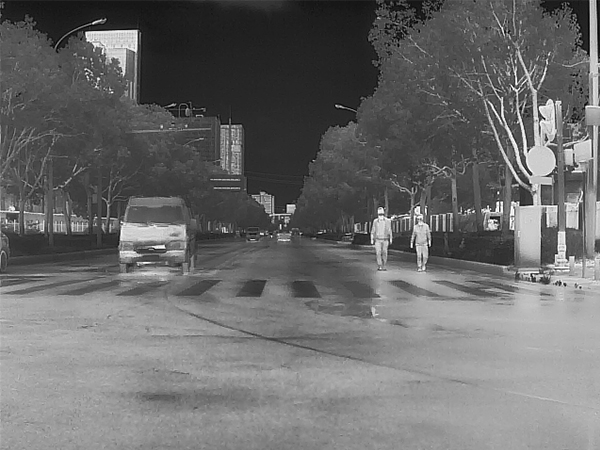

ADAS |
