PLUG417

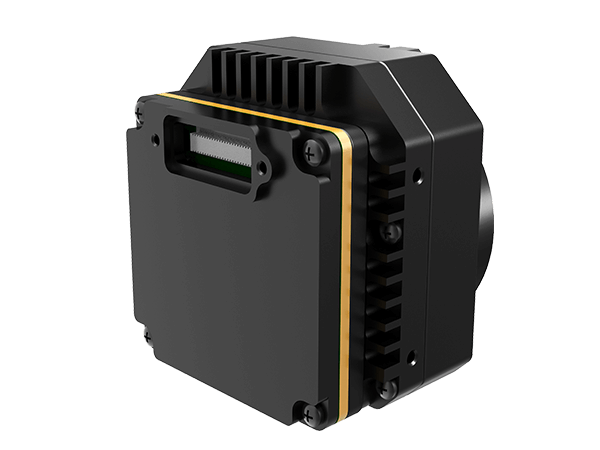

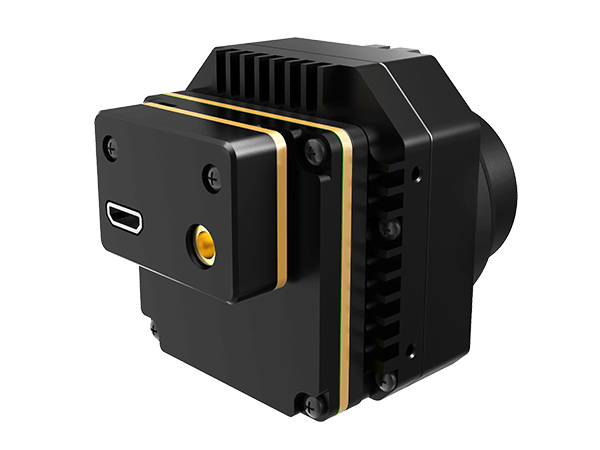

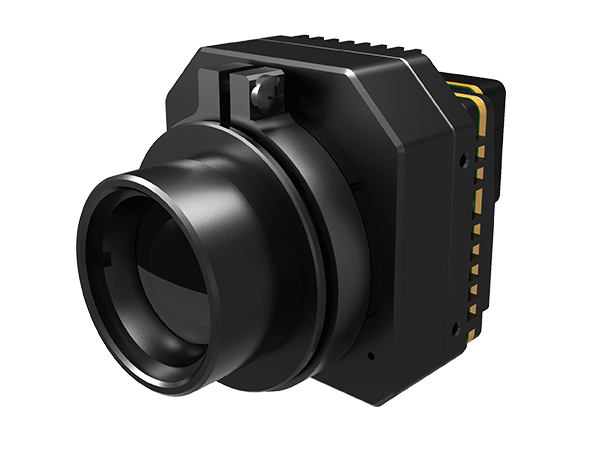

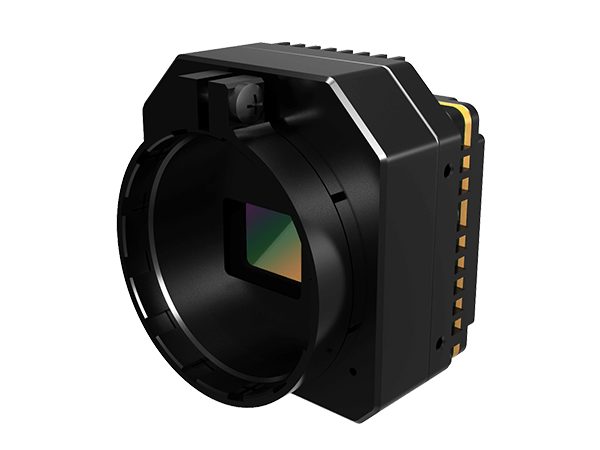

A PLUG-series 384×288/17µm uncooled thermal imaging module with a full set of optics and industry-standard interfaces for simple plug-in integration.
Description
The PLUG417 is one of the uncooled infrared camera modules in the PLUG series developed by Global Sensor Technology (GST).
Made up of a 384×288/17µm uncooled thermal imaging sensor, a full range of optical components, signal processing circuitry and proprietary image processing algorithms, the PLUG417 delivers clear images and superior performance.
The module offers a variety of common industry interfaces so it can be plugged into and integrated with OEM infrared cameras easily. In addition to these standard interfaces, GST provides personalized customization services so the module can be integrated smoothly into existing systems.
GST’s thermal imaging solutions have been applied successfully in many applications. The PLUG series is designed specifically for industrial observation, and its infrared thermal imaging technology benefits industries such as security and surveillance, outdoor activities, animal observation and rescue.
GST focuses on quality control and assurance across industrial operations, process control, optimization and monitoring to keep products flowing to customers and prevent production stoppages. A professional after-sales team supports customers, and a commitment to quality, performance and service is the cornerstone of GST’s business philosophy.
Key Feature
- High sensitivity with typical NETD <30mK
- Stable, reliable performance
- Clear images with fine detail
- Easy plug-in integration
- Strong adaptability to harsh environments
Specification
| Model | PLUG417 |
| IR Detector Performance | |
| Resolution | 384×288 |
| Pixel Size | 17μm |
| Spectral Range | 8~14μm |
| Typical NETD | <30mK |
| Image Processing | |
| Frame Rate | 9Hz/25Hz/30Hz/50Hz/60Hz |
| Start-up Time | 10s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656/LVDS |
| Extension Component | USB/VPC/Cameralink/Gig-E |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | Non-uniformity Correction (NUC) Auto Gain Control (AGC) Image Detail Enhancement (IDE) |
| Electrical Specification | |
| Standard External Interface | 50pin_HRS |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 4.5~6V |
| Typical Power Consumption | 1.4W |
| Physical Characteristics | |
| Size (mm) | 44.5×44.5×36.6 |
| Weight | 85g±3g |
| Environmental Adaptability | |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, Non-condensing |
| Vibration | Random Vibration 5.35grms, 3-axis |
| Shock | Half-sine Wave, 40g/11ms, 3-axis 6-direction |
| Optics | |

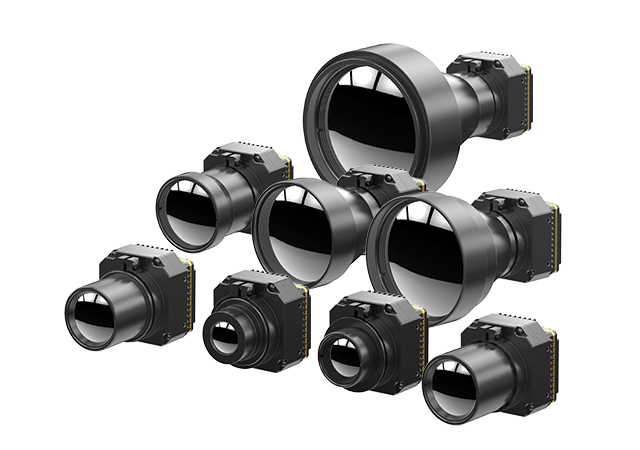

| Optional Lens | Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm |
Application
Security & Monitoring |
Outdoors |
Law enforcement & Rescue |
Firefighting&Rescue |
ADAS |
UAV Payload |
