iHA417
An infrared module purpose-built for IR fever screening systems, pairing a 384×288/17μm detector and 7mm lens with a dedicated body-temperature SDK.
Description

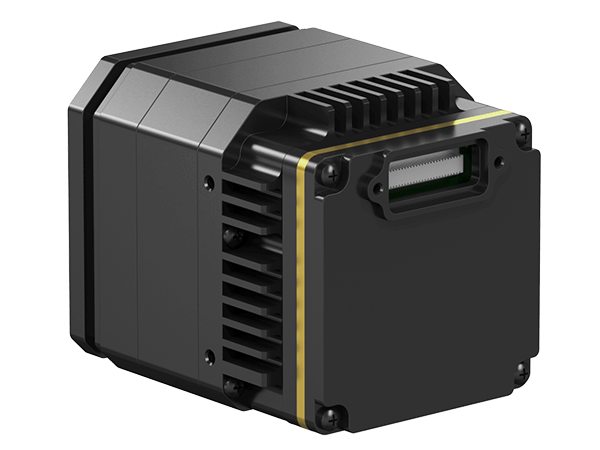

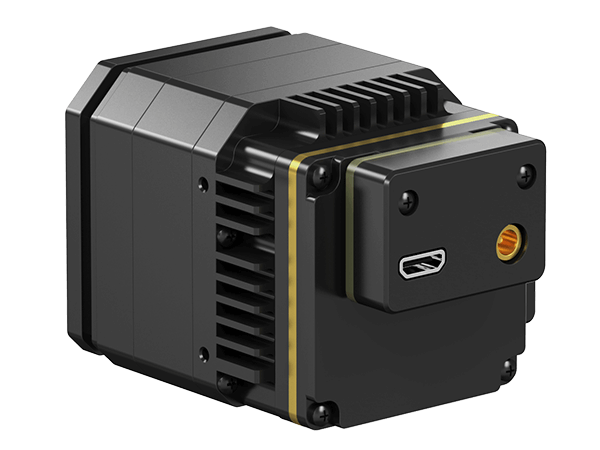

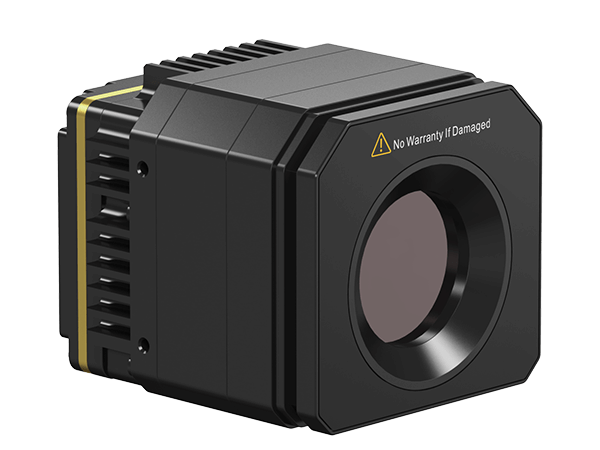

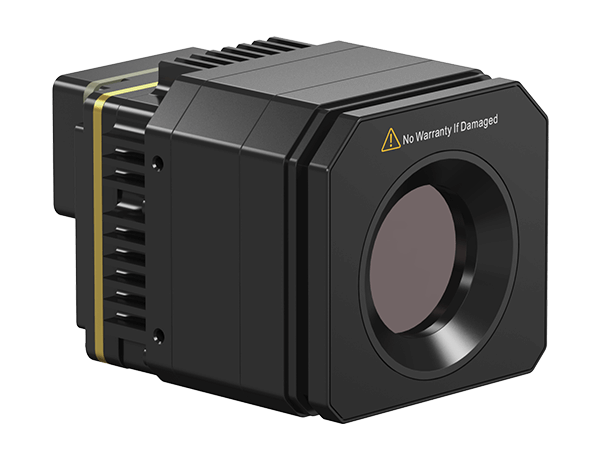

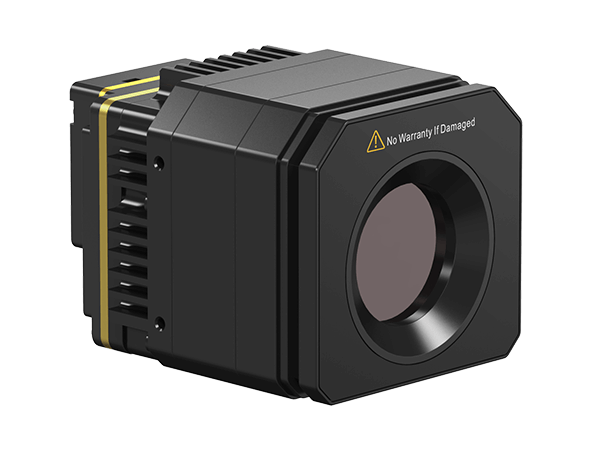

The iHA417 uncooled infrared thermal camera has been developed specifically for infrared (IR) fever sensing systems, allowing human body temperature to be measured anytime and anywhere. It consists of a 384×288/17μm infrared detector, a 7mm infrared optical lens and a dedicated SDK for human body temperature measurement.
Data captured by the iHA417 can be sent to a back-end integration platform through a 50-pin or USB3.0 interface to display full-screen temperature data and infrared thermal images, among other functions. This lets customers develop and integrate their own IR fever sensing systems quickly and efficiently.
Designed for elevated skin temperature screening, the iHA417 integrates easily into infrared thermographic systems that have been used in the fight against COVID-19. It can rapidly detect elevated body temperatures in high-traffic locations such as airports, subways, train stations, schools and shopping centers.
Key Feature
Non-Contact Temperature Measurement
- High-precision ±0.5℃ temperature measurement without an external blackbody
- Detection distance: 0.5m (medical diagnosis); 5m (epidemic prevention and animal thermography)
Fast System Integration
- All-in-one standard Type-C interface for power supply, data transmission and control
- Windows/Android/Linux SDKs for video stream analysis and gray-to-temperature conversion
Specification
| Model | iHA417 |
| IR Detector Performance | |
| Resolution | 384×288 |
| Pixel Size | 17μm |
| Spectral Range | 8~14μm |
| Typical NETD | ＜30mk |
| Image Processing | |
| Frame Rate | 25Hz |
| Start-up Time | 10s |
| Digital Video | RAW/YUV |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Algorithm | NUC/AGC/IDE |
| Electrical Specification | |

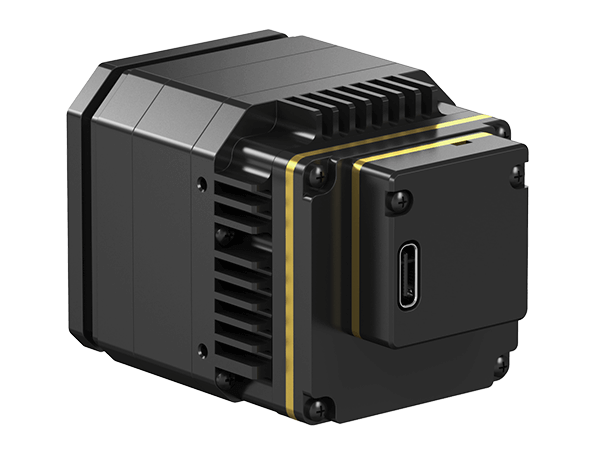

| Standard External Interface | Type-C |
| Communication Mode | USB |
| Supply Voltage | 5±0.5V |
| Typical Power Consumption | 1.5W |
| Temperature Measurement | |
| Operating Temperature Range | -10°C ~ +50°C |
| Temperature Measurement Range | 20℃ ~ 50℃ |
| Temperature Measurement Accuracy | ≤±0.5℃ (No wind indoor, target temperature range 32℃~42℃) |
| Measuring Distance | Two Modes: 0.5m or 5m |
| SDK | Support Windows/Android/Linux SDK, Realize Video Stream Analysis, Module Control, Comprehensive Array Temperature Measurement, Temperature Imaging, Temperature Window Setting, Multiple Integration |
| Physical Characteristics | |
| Size (mm) | 44.5×42.5×58.9 (with 7mm lens） 44.5×42.5×60.4 (with 9.7mm lens） |
| Weight | 123g（with 7mm lens ） 125g（with 9.7mm lens ） |
| Environmental Adaptability | |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 7mm/9.7mm |
| Certificate | |
| Standard | ROHS/REACH |
Application

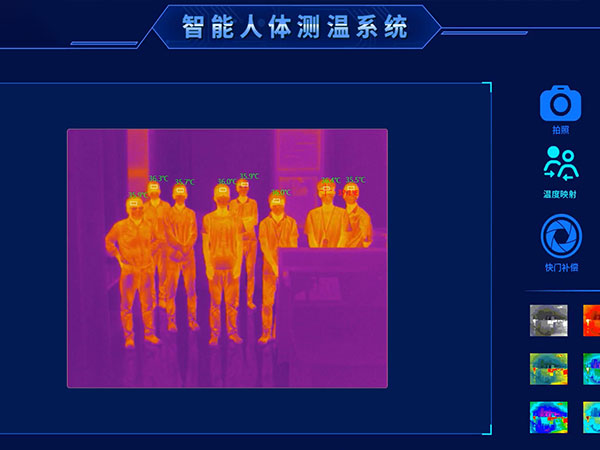

Epidemic Prevention |
Medical Diagnosis |
