COIN417G2
The new-generation COIN417 thermal module, combining a 384×288/17μm WLP detector with sharp imaging, a compact low-cost build and optional -20℃~550℃ industrial thermography.
Description

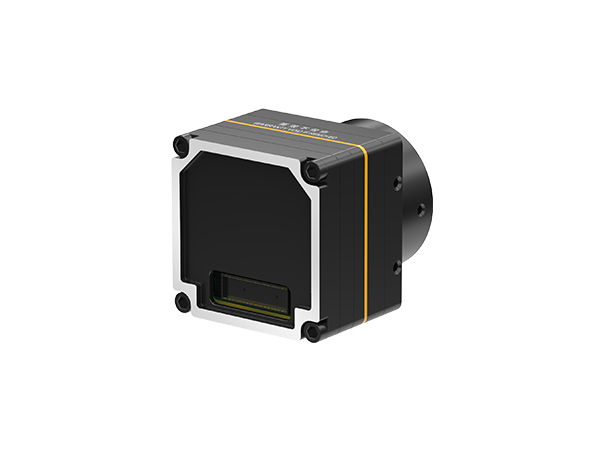

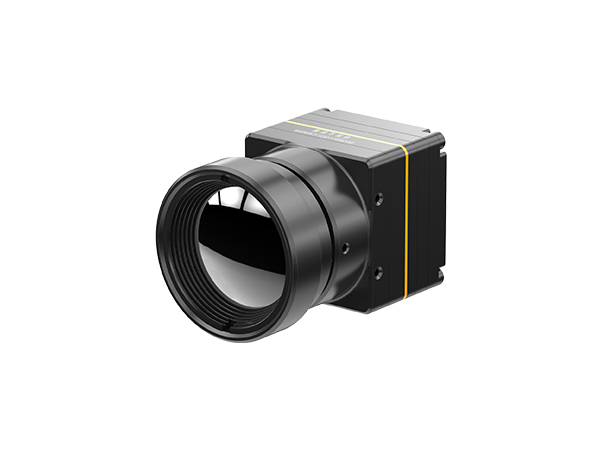

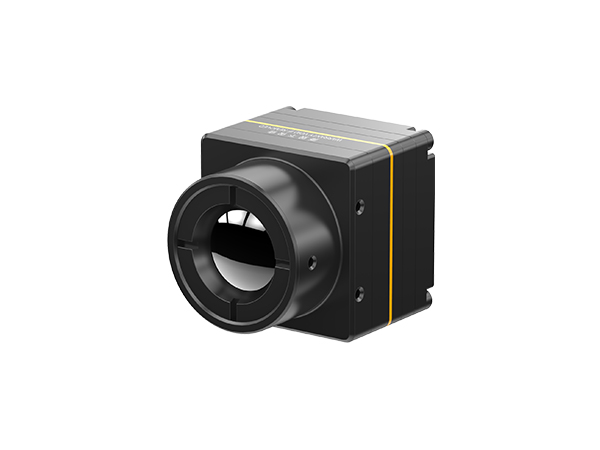

The COIN417G2 is the new-generation version of the COIN417 uncooled infrared module from Global Sensor Technology (GST). It integrates a 384×288/17μm wafer-level-package (WLP) infrared imaging detector, high-performance signal processing circuitry and image processing algorithms.
The module delivers sharp, crisp thermal images in a compact and cost-effective package. An optional thermography function covers -20℃ to 550℃ for industrial temperature measurement.
Building on GST’s portfolio of mature, stable thermal imaging solutions, the COIN series is designed to integrate easily into a wider range of end products while greatly reducing costs for customers.
Key Feature
Outstanding Performance
- Powerful image processing algorithms: NUC/3DNR/DNS/DRC/EE
- Temperature measurement ranges of -20℃～150℃ and 0~550℃, with support for customization and expansion
Greater Efficiency
- 3s start-up time and power consumption as low as 0.75W
Quicker Integration
- USB2.0/DVP/LVDS image output interfaces, RAW/YUV image data output and serial port control
Specification
| Model | COIN417G2/R |
| IR Detector Performance | |
| Sensitive Material | Vanadium Oxide |
| Resolution | 384×288 |
| Pixel Size | 17μm |
| Spectral Range | 8μm~14μm |
| Typical NETD | ≤40mK |
| Image Processing | |
| Frame Rate | 50Hz/30Hz/25Hz |
| Start-up Time | 5s |
| Analog Video | PAL/NTSC |
| Digital Video | YUV/BT.656/LVDS/USB2.0 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) De-noise (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | Black Hot/White Hot/Pseudo Color |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical Specifications | |
| Standard External Interface | 50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male） |
| USB Expansion Board | Type-C |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | CMOS8/CMOS16/LVDS/USB2.0 |
| Supply Voltage | 4~5.5V |
| Typical Power Consumption | 0.75W |
| Temperature Measurement | |
| Operating Temperature Range | -10℃~+50℃ |
| Temperature Measurement Range | -20℃~150℃, 0℃~550℃; Support Customization and Expansion |
| Temperature Measurement Accuracy | Greater of ±3℃ or ±3% |
| Regional Temperature Measurement | Support Maximum, Minimum and Average Value of the Output Regional Temperature |
| SDK | Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Physical Characteristics | |
| Size (mm) | 25.4×25.4×16 (Without Lens) |
| Weight | 12.8g (Without Lens) |
| Environmental Adaptability | |
| Operating Temperature | -40℃～+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, 3 Axis |
| Shock | Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction |
| Certificates | ROHS2.0/REACH |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 4.9mm/9.1mm/13mm/19mm/25mm |
| Protection Level | IP67 Rating (Front Lens) |
Application
Predictive Maintenance |
Security&Monitoring |
Outdoors |
Intelligent Hardware |
Smart Home |
UAV Payload |
Smart building |
AIoT |
ADAS |
Firefighting&Rescue |
