PLUG617
A PLUG-series 640×512/17μm VOx thermal imaging module with crisp imagery and a wide choice of fixed, motorized and continuous-zoom lenses.
Description
The PLUG617 is one of the uncooled thermal camera modules in the PLUG series developed by Global Sensor Technology (GST). It uses 17μm VOx microbolometer technology with a 640×512 resolution infrared thermal detector, providing precise visualization and crisp image presentation.
Made up of a 640×512/17µm uncooled thermal camera sensor, a full range of optical components, signal processing circuitry and proprietary image processing algorithms, the PLUG617 LWIR thermal imaging module delivers clear images and superior performance. A broad selection of infrared lenses, including fixed-focus athermal 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm, motorized 75mm/100mm/150mm and a 30–150mm continuous zoom, lets the PLUG617 meet almost any customer application.
The PLUG617 is designed for a wide variety of customized observation requirements. It supports multi-mode image data output interfaces (USB/VPC/Cameralink/Gig-E), serial port control and infrared lens options to meet specific integration needs. Professional thermal imaging solutions based on it are already in use, and it configures and integrates easily into many thermal imaging applications such as security and monitoring, firefighting and drones.
Key Feature
- High sensitivity with typical NETD <30mK
- Proven, mature technology
- Stable, reliable performance
- Clear images with fine detail
- Strong adaptability to harsh environments
Specification
| Model | PLUG617 |
| IR Detector Performance | |
| Resolution | 640×512 |
| Pixel Size | 17μm |
| Spectral Range | 8~14μm |
| Typical NETD | <30mK |
| Image Processing | |
| Frame Rate | 9Hz/25Hz/30Hz/50Hz |
| Start-up Time | 10s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656/LVDS |

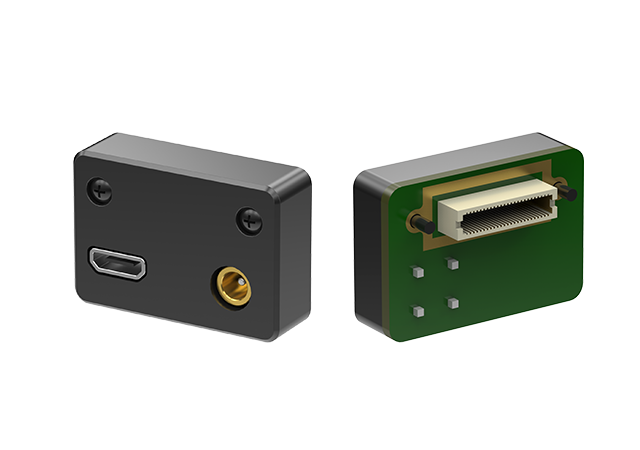

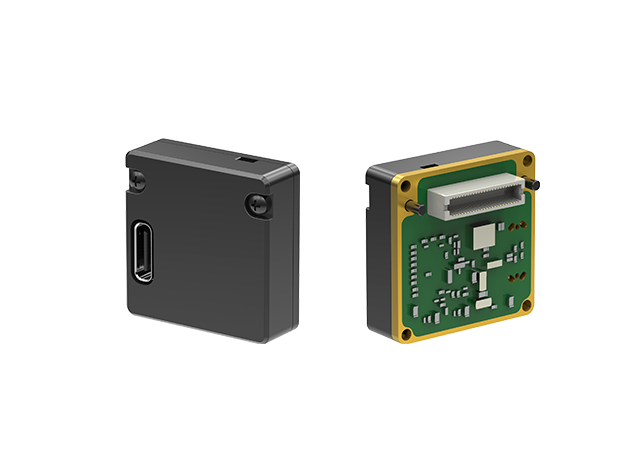

| Extension Component | USB/VPC/Cameralink/Gig-E |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | Non-uniformity Correction (NUC) Auto Gain Control (AGC) Image Detail Enhancement (IDE) |
| Electrical Specification | |
| Standard External Interface | 50pin_HRS |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 4~6V |
| Typical Power Consumption | 1.4W |
| Physical Characteristics | |
| Size (mm) | 44.5×45.95×37.3 |
| Weight | 90g±3g |
| Environmental Adaptability | |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, Non-condensing |
| Vibration | Random Vibration 5.35grms, 3-axis |
| Shock | Half-sine Wave, 40g/11ms, 3-axis 6-direction |
| Optics | |

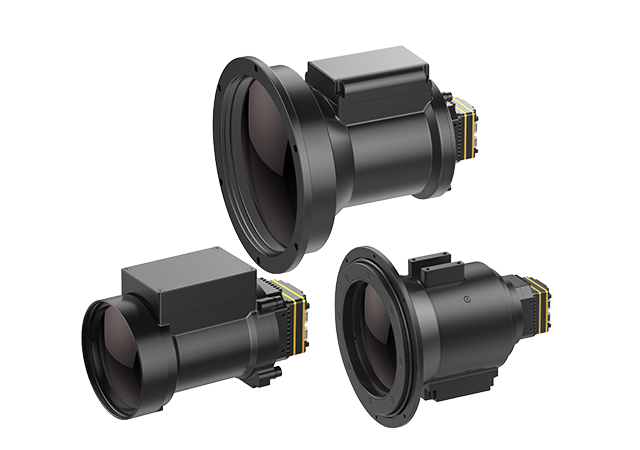

| Optional Lens | Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm

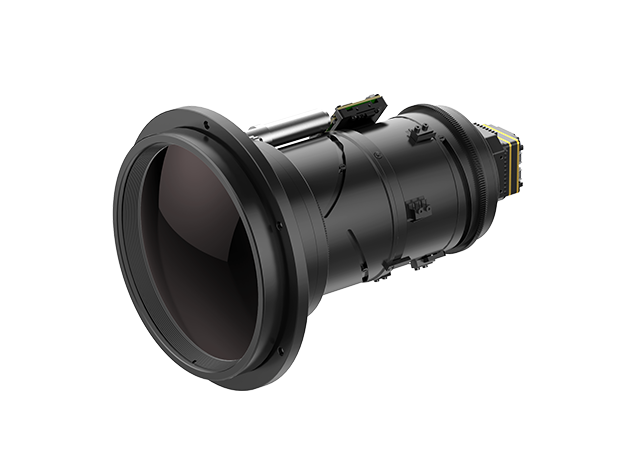

Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 30-150mm |
Application
Security & Monitoring |
Outdoors |
Law enforcement & Rescue |
Firefighting&Rescue |
ADAS |
UAV Payload |
