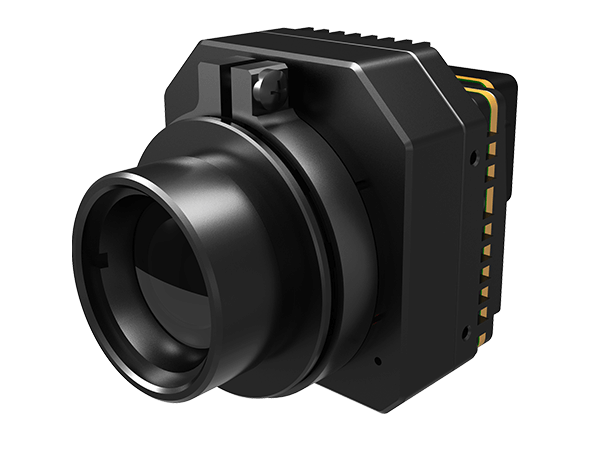

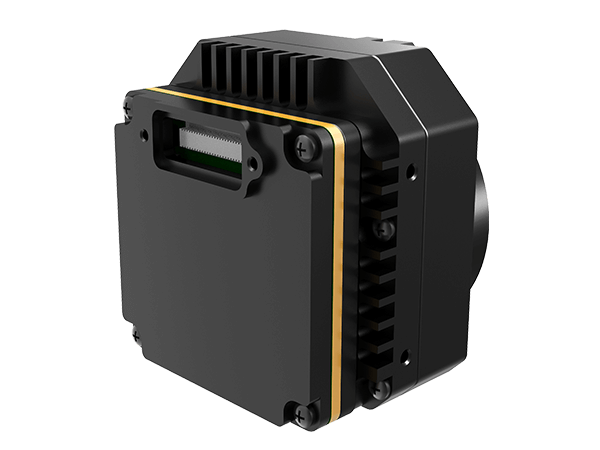

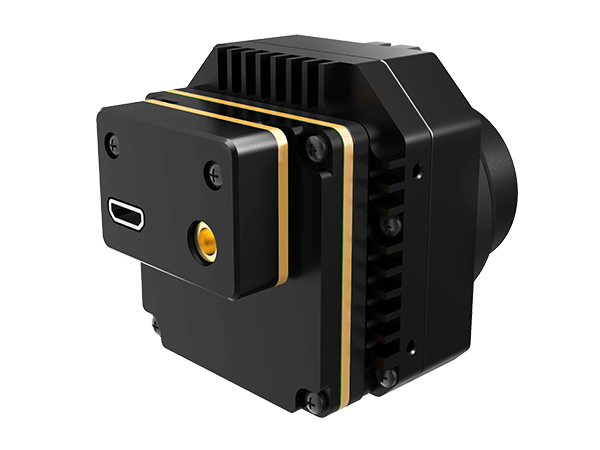

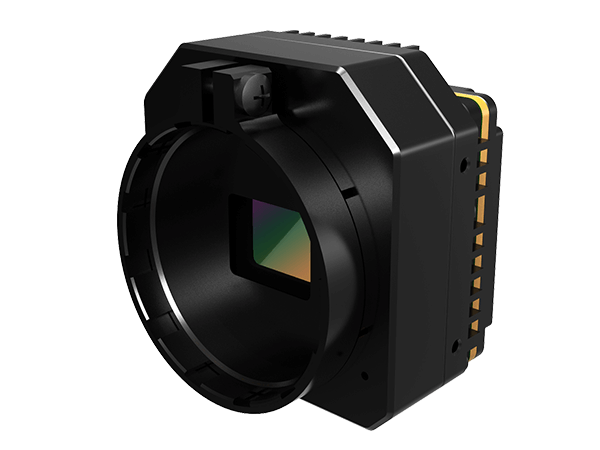

PLUG612R
A radiometric PLUG-R 640×512/12μm thermal module for industrial thermal imaging and temperature measurement, with a customizable temperature range.
Description
The PLUG612R is one of the uncooled infrared modules in the PLUG series developed by Global Sensor Technology (GST). It consists of a 640×512@12μm uncooled thermal infrared detector, a full range of optical components, professional signal processing circuitry and image processing algorithms.
Designed for industrial thermal imaging and temperature measurement, the PLUG612R offers a customizable temperature range to meet specific industrial thermography requirements while producing clear infrared thermal images.
GST is committed to bringing a new perspective to industrial temperature measurement. Through years of technical development and hands-on experience in infrared temperature measurement, it has delivered a complete range of machine thermal imaging vision solutions to its customers.
Key Feature
- High sensitivity with NETD <30mK
- Stable, reliable performance
- Easy plug-in integration
- Clear images with fine detail
- Customizable temperature range
- Strong adaptability to harsh environments
Specification
| Model | PLUG612R |
| IR Detector Performance | |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Spectral Range | 8~14μm |
| Typical NETD | <40mk |
| Image Processing | |
| Frame Rate | 25Hz/30Hz |
| Start-up Time | <10s |
| Analog Video | PAL/NTSC |
| Digital Video | Y16/YUV/BT656/LVDS |
| Extension Component | USB/Camerlink |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | NUC/AGC/IDE |
| Electrical Specification | |
| Standard External Interface | 50pin_HRS Interface |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 4~6V |
| Temperature Measurement | |
| Operating Temperature Range | -10℃~50℃ |
| Temperature Range | -20°C~150°C, 100°C~550°C |
| Temperature Accuracy | ±2°C or ±2% (Take the Maximum Value) |
| SDK | ARM/Windows/Linux SDK, Full Screen Thermography |
| Physical Characteristics | |
| Dimension (mm) | 44.5×44.5×36.6 |
| Weight | ≤85g |
| Environmental Adaptation | |
| Operation Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, Non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 13mm/19mm/24mm |
Application

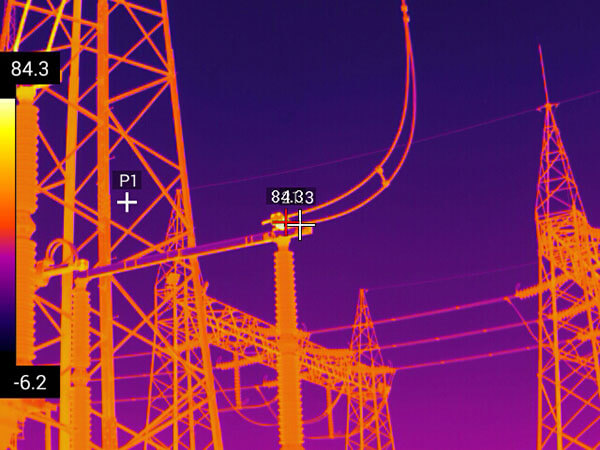

Predictive Maintenance |

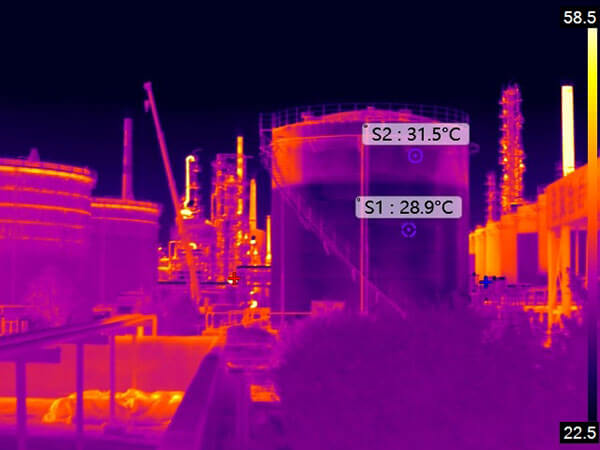

Metallurgical Petrochemical |

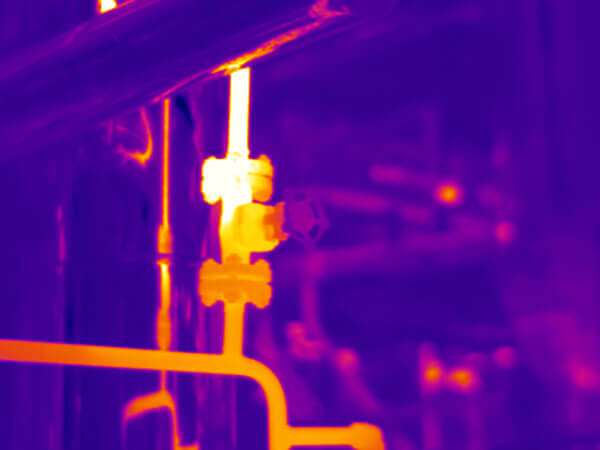

Machine Vision |

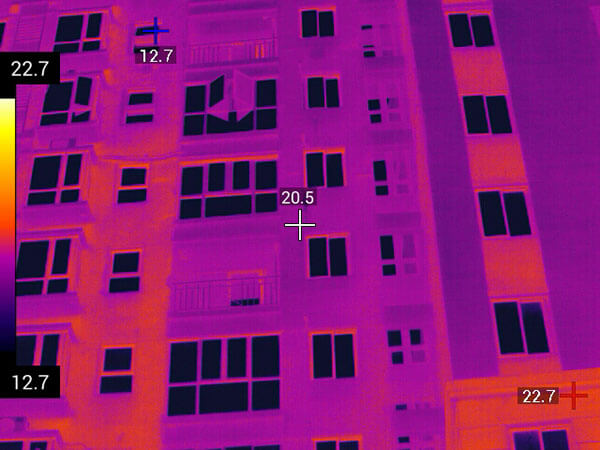

Building Inspection |

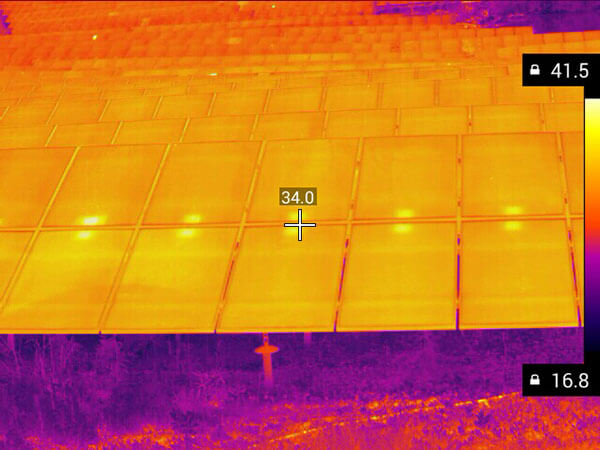

New Energy |

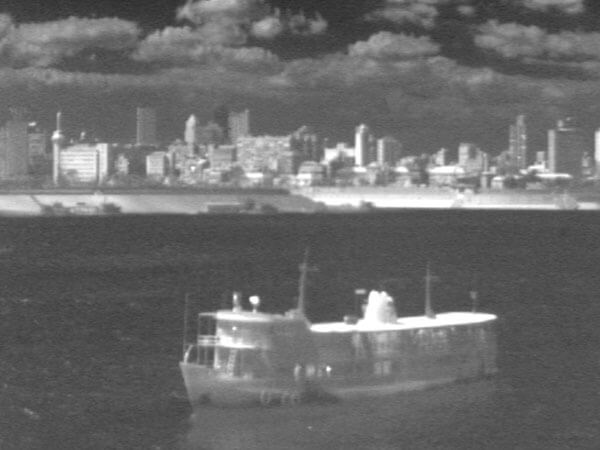

Rail Traffic |
