PLUG617R
A radiometric PLUG-R 640×512/17μm thermal module for industrial thermal imaging and temperature measurement, with a customizable temperature range.
Description

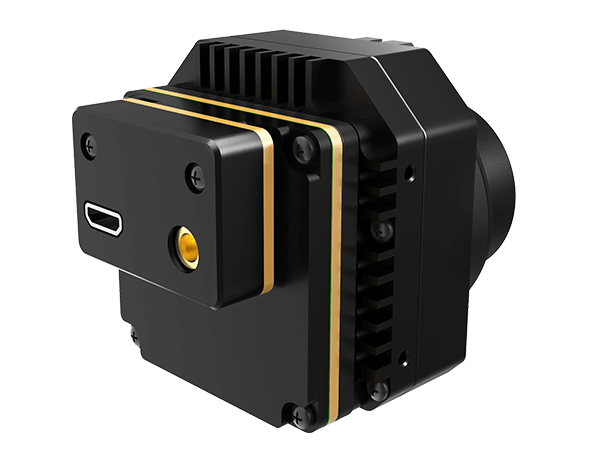

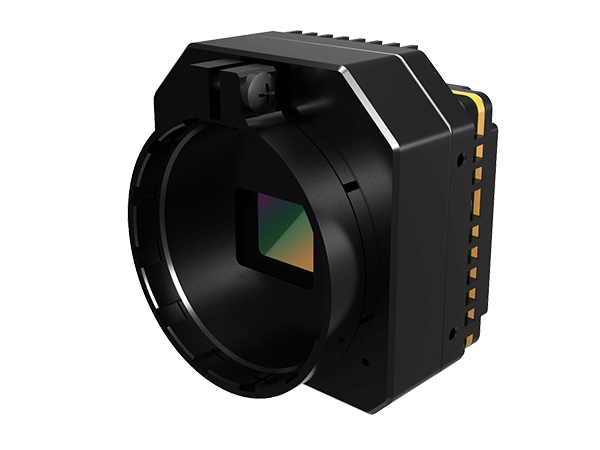

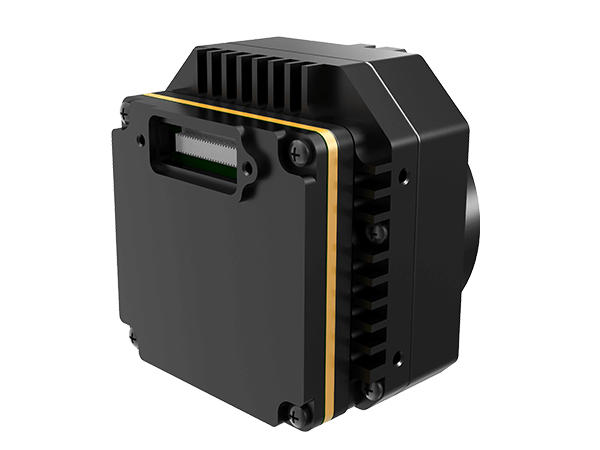

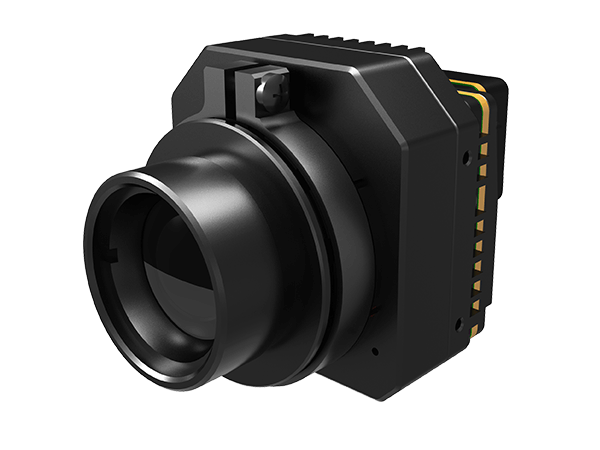

The PLUG617R is one of the uncooled thermal camera modules in the PLUG series developed by Global Sensor Technology (GST). It consists of a 640×512/17μm uncooled FPA infrared detector, a full range of optical components, professional signal processing circuitry and image processing algorithms.
The PLUG617R infrared thermal sensor module is an uncooled camera module designed for industrial thermal imaging and temperature measurement. Its customizable temperature range meets specific industrial thermography requirements while producing clear thermal images.
As a leading thermal camera module manufacturer, GST is committed to bringing a new perspective to industrial temperature measurement. Through years of technical development and hands-on experience in infrared temperature measurement, it has delivered a complete range of machine thermal imaging vision solutions to its customers.
Key Feature
- High sensitivity with typical NETD <30mK
- Stable, reliable performance
- Easy plug-in integration
- Clear images with fine detail
- Customizable temperature range
- Strong adaptability to harsh environments
Specification
| Model | PLUG617R |
| IR Detector Performance | |
| Resolution | 640×512 |
| Pixel Size | 17μm |
| Spectral Range | |
| Typical NETD | ＜30mK |
| Image Processing | |
| Frame Rate | 25Hz/30Hz |
| Start-up Time | 15s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656/LVDS |
| Expansion Component | USB/VPC/Cameralink/Gig-E |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | Non-uniformity Correction (NUC) Auto Gain Control (AGC) Image Detail Enhancement (IDE) |
| Electrical Specification | |
| Standard External Interface | 50pin_HRS Interface |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 4~6V |
| Typical Power Consumption | 1.5W |
| Temperature Measurement | |
| Operating Temperature Range | -10℃~50℃ |
| Temperature Range | -20℃~150℃，0℃~550℃ |
| Temperature Accuracy | Greater of ±2℃ or ±2% |
| SDK | Support ARM/Windows/Linux SDK, Achieve Full Screen Thermography |
| Physical Characteristics | |
| Size (mm) | 44.5×45.95×36.6 |
| Weight | 90g±3g |
| Environmental Adaptability | |
| Operating Temperature | -40°C~+70°C |
| Storage Temperature | -45°C~+85°C |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm |
Application
Predictive Maintenance |
Metallurgical Petrochemical |
Machine Vision |
Building Inspection |
New Energy |
Rail Traffic |
