iTL612
A compact 640×512/12μm WLP radiometric LWIR thermal module designed for drones, with optional -20℃~550℃ industrial temperature measurement.
Description

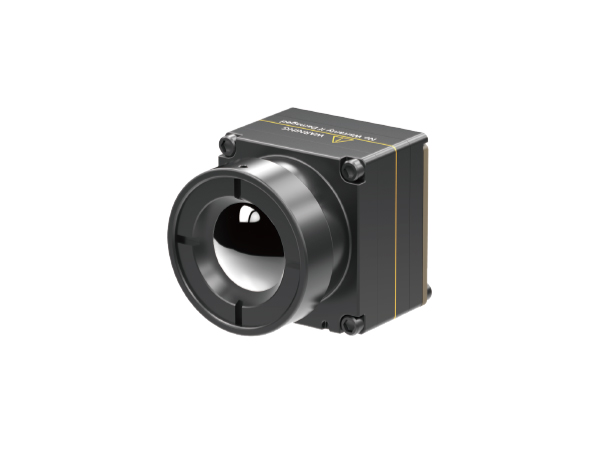

The iTL612R infrared camera core integrates a 640×512/12μm wafer-level-package (WLP) infrared thermal detector. It is an uncooled LWIR radiometric thermal imaging module for drones, with a spectral range of 8–14μm.
The iTL612 delivers sharp, crisp images in a compact, low-cost package. Designed around a fully optimized SWaP (size, weight and power), the iTL612R provides a dependable way to integrate infrared systems into limited spaces, and its compact structure ranks at the top among modules of the same specification. An optional thermography function measures from -20℃ to 550℃ for industrial temperature measurement.

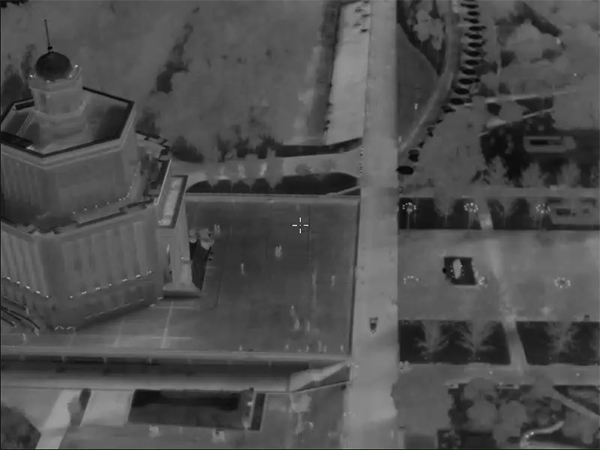

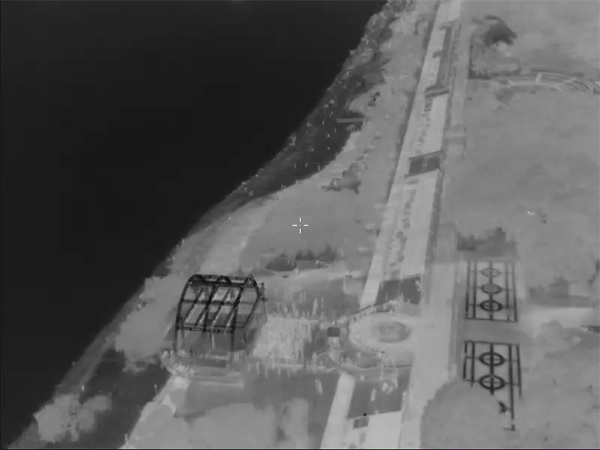

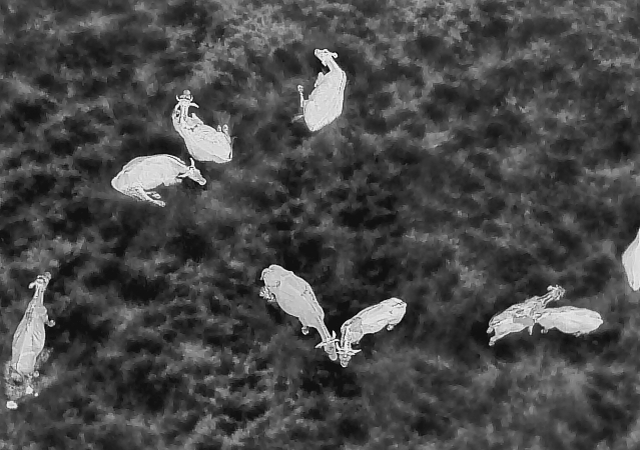

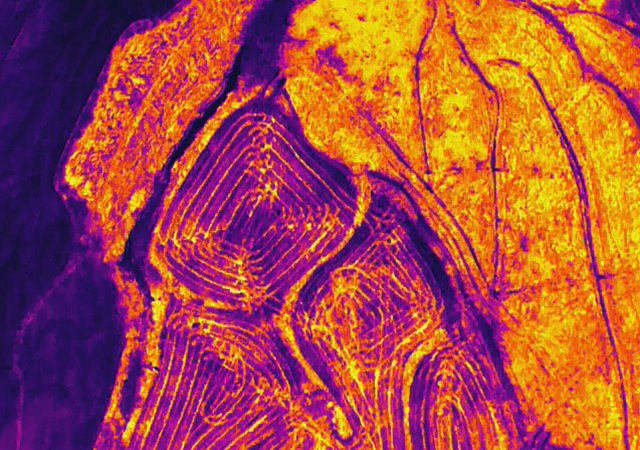

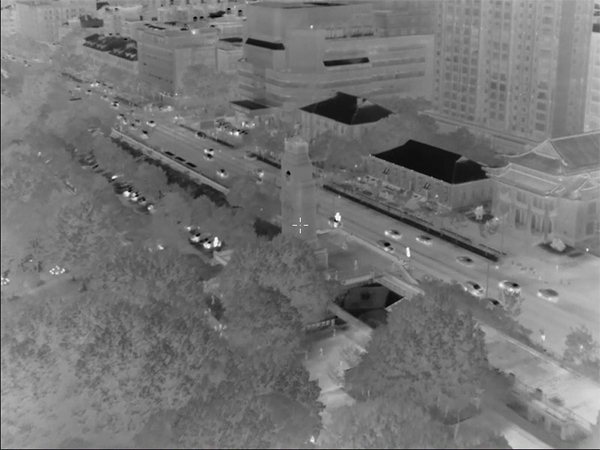

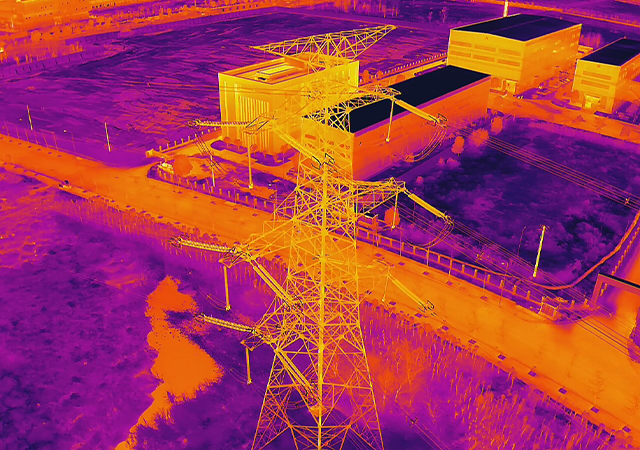

The iTL612 has been developed specifically for predictive maintenance, photovoltaic inspection, environmental protection, scientific research, aerial photography, relief and rescue, forest fire prevention, urban safety and similar fields.
Key Feature
Compact and Lightweight
- Size: 21mm×22.3mm×27.3mm (with 9.1mm lens)
- Weight: 20.8g±1.5g (with 9.1mm lens)
- Power consumption as low as 0.7W
Clear Images and Accurate Radiometry
- All-new image processing algorithms: NUC/3DNR/DNS/DRC/EE
- Windows/Linux SDK support
- Regional, point and isotherm temperature measurement
Multiple Interfaces for Easy Integration
- DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output and serial port control
Specification
| Model | iTL612/R |
| IR Detector Performance | |
| Sensitive Material | Vanadium Oxide |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Range | 8~14μm |
| Typical NETD | ≤40mk |
| Image Processing | |
| Frame Rate | 30Hz |
| Start-up Time | 5s |
| Digital Video | RAW/YUV/BT656 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) De-noise (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | Black Hot/White Hot/Pseudo Color |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical Specifications | |
| Standard External Interface | 30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male） |
| USB Expansion Board | Type-C |
| Communication Interface | RS232-TTL/USB2.0 |
| Digital Video Interface | CMOS8/USB2.0 |
| Supply Voltage | 3.3V±0.1V VDC |
| Typical Power Consumption | 0.7W |
| Temperature Measurement | |
| Operating Temperature Range | -10°C~+50°C |
| Temperature Measurement Range | -20°C~+150°C, 0°C~550°C; Support Customization and Expansion |
| Temperature Measurement Accuracy | Greater of ±2°C or ±2% (@23℃±3℃) |
| Regional Temperature Measurement | Support Maximum, Minimum and Average Value of the Output Regional Temperature |
| SDK | Support Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Physical Characteristics | |
| Size (mm) | 21×22.3×27.3 (With 9.1mm Lens) |
| Weight | 20.8g±1.5g (With 9.1mm Lens) |
| Environmental Adaptability | |
| Operating Temperature | -40°C~+70°C |
| Storage Temperature | -45°C~+85°C |
| Humidity | 5%~95%, Non-condensing |
| Vibration | 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Certificates | ROHS2.0/REACH |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 9.1mm |
