PLUG1212R

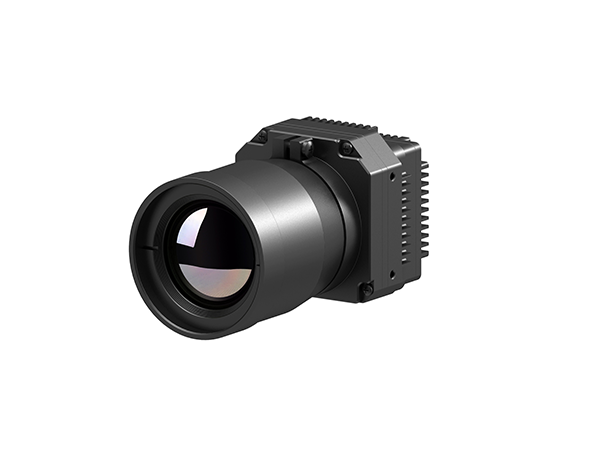

A large-array 1280×1024/12µm radiometric PLUG-R module that converts infrared radiation into temperature data, with a customizable measurement range.
Description
The PLUG1212R is one of the uncooled infrared camera modules in the PLUG series developed by Global Sensor Technology (GST). Based on the GST1212M uncooled infrared detector with professional signal processing circuitry and an image processing platform, it fully converts a target’s infrared radiation into temperature data. Temperature measurement is supported and the measurement range can be customized to meet specific industrial thermography requirements.

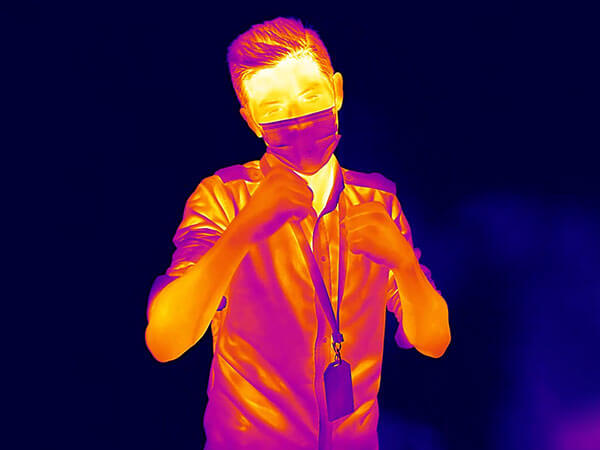

Its large 1280×1024 array presents more image detail and supports a wider field of view. The smaller 12µm pixel pitch improves spatial resolution and allows a shorter-focal-length lens to achieve the same range.
It is widely used in predictive maintenance, metallurgy and petrochemicals, machine vision, building inspection, new energy, rail transit and other industries.
Key Feature
- Pixel size: 12μm
- Resolution: 1280×1024
- Spectral range: 8μm–14μm
- High sensitivity: typical NETD <50mK
- Temperature ranges: -20℃~150℃ and 0℃~550℃
- Temperature accuracy: greater of ±3℃ or ±3%
- High reliability and strong environmental adaptability
Specification
| Model | PLUG1212R |
| IR Detector Performance | |
| Resolution | 1280×1024 |
| Pixel Size | 12μm |
| Spectral Range | 8~14μm |
| Typical NETD | <50mK |
| Image Processing | |
| Frame Rate | 25Hz |
| Start-up Time | 25s |
| Analog Video | / |
| Digital Video | RAW/YUV/BT1120 |
| Expansion Component | USB 3.0/Cameralink/HDMI |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | Non-uniformity Correction (NUC) Auto Gain Control (AGC) Image Detail Enhancement (IDE) |
| Electrical Specification | |
| Standard External Interface | 50pin_HRS Interface |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 5V±0.3V |
| Typical Power Consumption | 2W/5V (@23±5℃) |
| Temperature Measurement | |
| Operating Temperature Range | -10℃~50℃ |
| Temperature Range | -20℃~150℃，0℃~550℃ |
| Temperature Accuracy | Greater of ±3℃ or ±3% |
| SDK | Support ARM/Windows/Linux SDK, Achieve Full Screen Thermography |
| Physical Characteristics | |
| Size (mm) | 56×56×44 (Without Lens) |
| Weight | 220g±5g (Without Lens) |
| Environmental Adaptability | |
| Operating Temperature | -40°C~+70°C |
| Storage Temperature | -45°C~+85°C |
| Humidity | 5%~95%, non-condensing |
| Vibration | Random Vibration 5.35grms, 3-axis |
| Shock | Half-sine Wave, 40g/11ms, 3-axis 6-direction |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 14mm/25mm |
