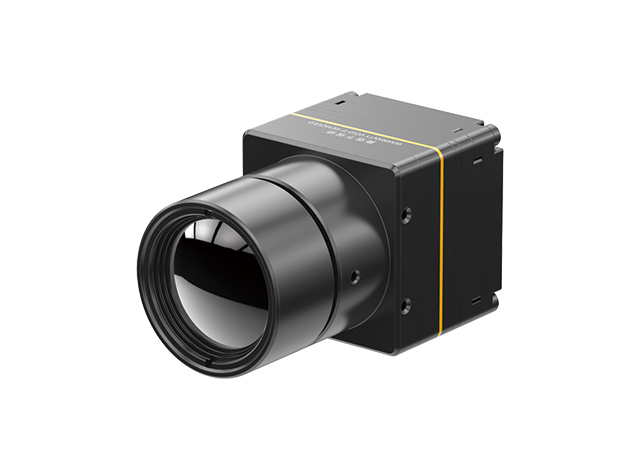

TWIN612
A 640×512/12µm ceramic-package thermal module with typical NETD <30mK, delivering detailed images and ±2℃/±2% temperature measurement at as little as 0.8W.
Description
The TWIN612 is a newly released thermal module from Global Sensor Technology (GST) that integrates a 640×512/12µm ceramic-package uncooled infrared detector. With a typical NETD of <30mK, it produces clearer, sharper and more detailed images.
A temperature measurement range of -20℃~150℃/0~550℃, accuracy of ±2℃ or ±2% and frame rates of up to 30Hz ensure smooth thermal imaging and accurate temperature readings.
The module is compact and lightweight, with power consumption as low as 0.8W. Enhanced image algorithms and built-in temperature measurement provide more stable images and precise temperature data.
Ceramic packaging is a mature infrared detector packaging process similar to metal packaging, but it makes the packaged detector considerably smaller and lighter. This allows the TWIN612 to serve industries with strict requirements on size, weight and power consumption.
Key Feature
Optimized SWaP-C (Size, Weight, Power and Cost)
- Compact 25.4mm×25.4mm×22.0mm body (without lens)
- Weighs as little as 20g (without lens)
- Power consumption from just 0.8W
Excellent Performance
- Advanced image processing algorithms: NUC/3DNR/DNS/DRC/EE
- Temperature measurement ranges of -20℃~150℃ and 0~550℃ (customizable)
- Temperature measurement accuracy of ±2℃ or ±2%
High Versatility
- Operates stably across a wide range of harsh environments
- USB2.0/DVP/LVDS image data output
- Windows/Linux SDK for video stream analysis and gray-to-temperature conversion
Specification
| Model | TWIN612/R |
| IR Detector Performance | |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Range | 8~14μm |
| Typical NETD | ＜30mK |
| Image Processing | |
| Frame Rate | 25Hz/30Hz |
| Start-up Time | 5s |
| Analog Video | PAL/NTSC |
| Digital Video | YUV/BT.656/LVDS/USB2.0 |
| Image Display | 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot) |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Electrical Specifications | |
| Standard External Interface | 50pin_HRS |
| Communication Interface | RS232/USB2.0 |
| Supply Voltage | 4~5.5V |
| Typical Power Consumption | 0.8W |
| Temperature Measurement | |
| Operating Temperature Range | -10℃~50℃ |
| Temperature Measurement Range | -20℃~150℃, 0℃~550℃ |
| Temperature Measurement Accuracy | Greater of ±2℃ or ±2% |
| SDK | Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Physical Characteristics | |
| Size (mm) | 25.4×25.4×22.0mm (Without Lens) |
| Weight | 20g (Without Lens) |
| Environmental Adaptability | |
| Operating Temperature | -40℃～+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, 3 Axis |
| Shock | Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction |
| Optics | |
| Optional Lens | Fixed Athermal: 13mm/19mm/25mm/35mm/50mm/70mm (TWIN612) Fixed Athermal: 13mm/19mm/25mm (TWIN612R) |
Application

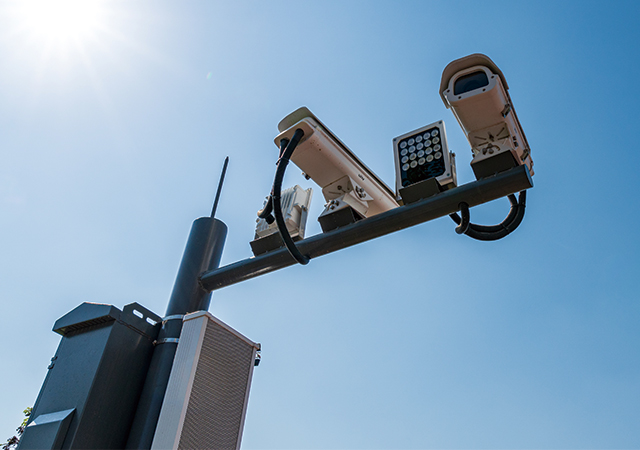

Security Monitoring |
UAV Payloads |

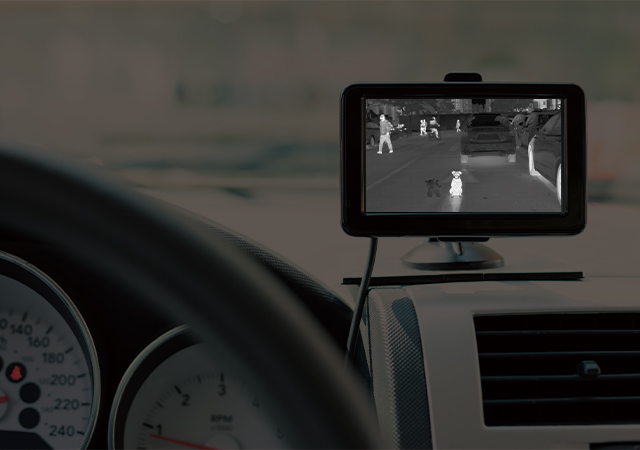

ADAS |
