COIN212
A COIN-series thermal camera core pairing a 256×192/12μm WLP VOx detector with onboard processing, plus optional -20℃~150℃ thermography for industrial or body temperature measurement.

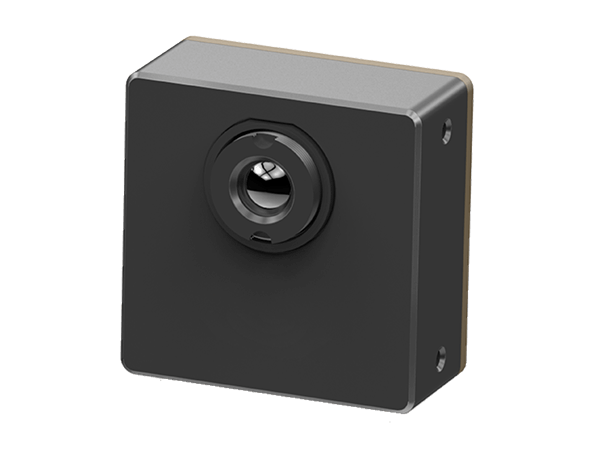

Description

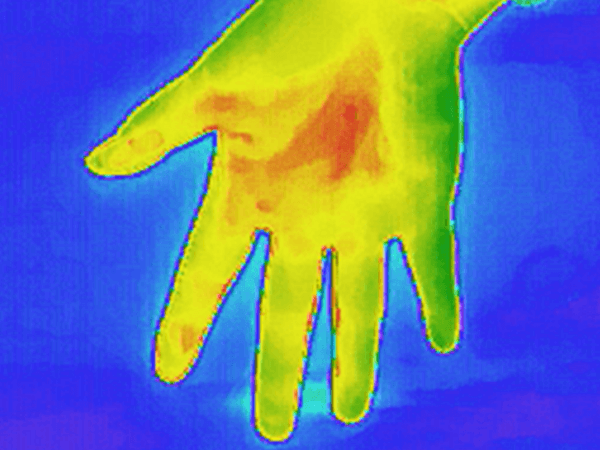

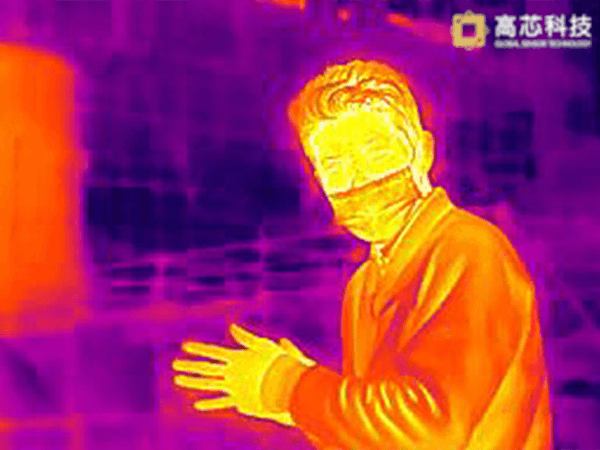

The COIN212 is part of the COIN series of thermal imaging camera cores developed by Global Sensor Technology (GST). It brings together a 256×192/12μm wafer-level-package (WLP) uncooled VOx infrared detector, high-performance signal processing circuitry and image processing algorithms. An optional thermography function measures from -20℃ to 150℃, making it suitable for industrial or body temperature measurement.
Its rugged, compact design and range of industry-standard interfaces allow this small infrared camera module to be used widely in thermal imaging applications such as thermography, smart hardware, drones and advanced driver assistance systems (ADAS). Being lightweight and flexible, it helps OEM customers with secondary development and with integration into all kinds of thermal imagers and infrared thermographic cameras.
GST has already supplied customers with a wide range of mature, stable infrared thermal module integration solutions. The COIN series is designed to be integrated into more end products with ease while significantly reducing customer costs.

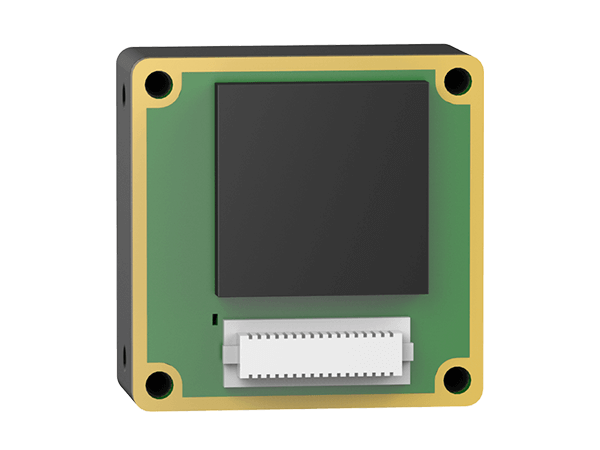

Key Feature
- Compact size: 20×20×10.4mm
- High sensitivity: NETD <40mK
- Lightweight: under 8g
- Low power consumption
- Fast development and integration
Specification
| Model | COIN212/R |
| IR Detector Performance | |
| Resolution | 256×192 |
| Pixel Pitch | 12μm |
| Spectral Range | 8~14μm |
| NETD | ＜ 40mk |
| Image Processing | |
| Frame Rate | 25Hz/30Hz/50Hz/60Hz |
| Start-up Time | <3s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656 |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | NUC/AGC/IDE/DNR |
| Electrical Specification | |
| Standard External Interface | 30pin_HRS |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 3.5~5.5V |
| Typical Power Consumption | <0.4W |
| Temperature Measurement | |
| Operating Temperature Range | -10℃~50℃ |
| Temperature Measurement Range | -20℃~150℃, 100℃~550℃ |
| Temperature Accuracy | ±3°C or ±3% (Take the Maximum Value) |
| SDK | Support ARM/Windows/Linux SDK, Full Screen Thermography |
| Physical Characteristics | |
| Size (mm) | 20×20×10.4 (With Lens) |
| Weight | 7.5g±0.5g (With Lens) |
| Environmental Adaptation | |
| Operation Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, Non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 3.2mm |
Application

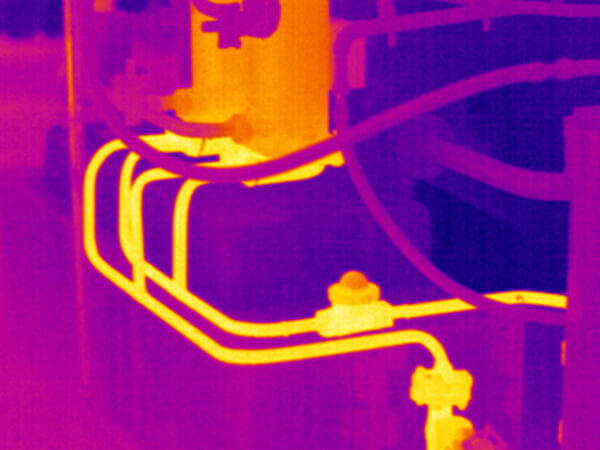

Predictive Maintenance |
Security & Monitoring |
Outdoors |
Intelligent Hardware |
Smart Home |
UAV Payload |
Smart building |
AIoT |
ADAS |
Firefighting&Rescue |
