TWIN412

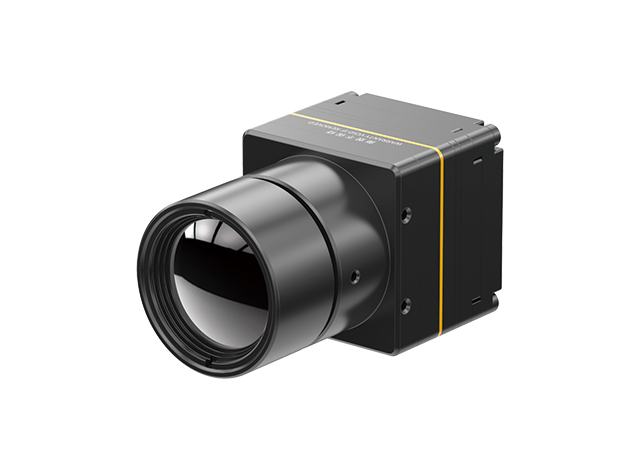

A TWIN412/R thermal module built around a 384×288/12μm ceramic-package detector, producing clear, sharp images with 11 selectable pseudo-color palettes.
Description
The TWIN412/R is a newly released thermal module from Global Sensor Technology (GST), built around a 384×288/12μm ceramic-package infrared detector. It supports 11 pseudo-color palettes in total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot), so users in different industries can choose the palette that suits their work.
Ceramic packaging is currently the most widely used packaging technology on the market, and it allows the size, weight and power consumption of the detector to be reduced significantly.

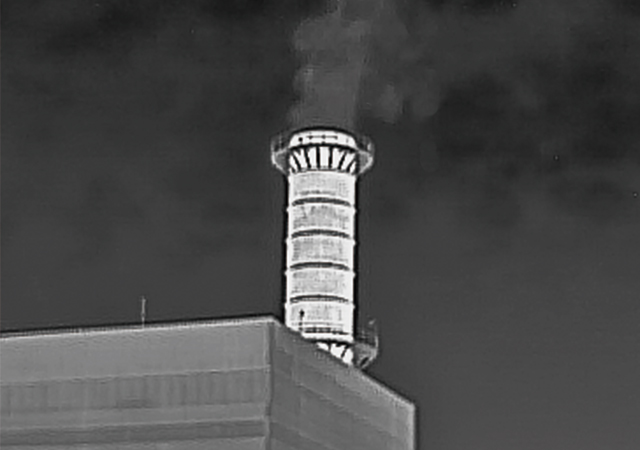

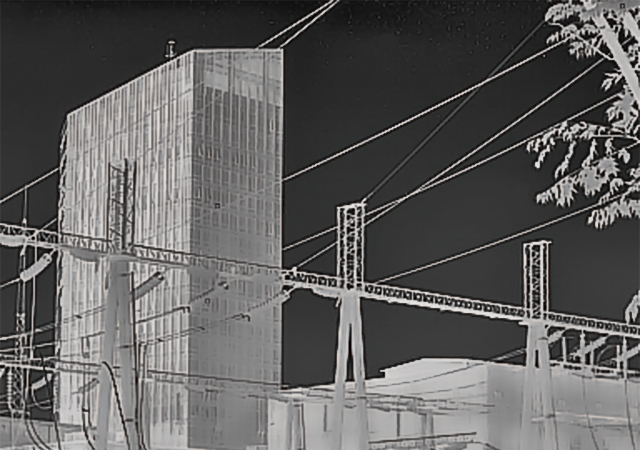

Thanks to its integrated ceramic-package infrared detector, the TWIN412/R delivers clear, sharp images.
The TWIN412 widens the choice available to customers in industries such as industrial automation, intelligent security, unmanned platforms, robotics, intelligent hardware, advanced driver assistance systems (ADAS) and firefighting.
Key Feature
Optimized SWaP-C (Size, Weight, Power and Cost)
- Compact 25.4mm×25.4mm×22.0mm body (without lens)
- Weighs as little as 20g (without lens)
- Power consumption from just 0.8W
Excellent Performance
- Advanced image processing algorithms: NUC/3DNR/DNS/DRC/EE
- Temperature measurement ranges of -20℃~150℃ and 0~550℃ (customizable)
- Temperature measurement accuracy of ±2℃ or ±2%
High Versatility
- Operates stably across a wide range of harsh environments
- USB2.0/DVP/LVDS image data output
- Windows/Linux SDK for video stream analysis and gray-to-temperature conversion
Specification
| Model | TWIN412/R |
| IR Detector Performance | |
| Resolution | 384×288 |
| Pixel Size | 12μm |
| Spectral Range | 8~14μm |
| Typical NETD | ＜30mK |
| Image Processing | |
| Frame Rate | 25Hz/30Hz/50Hz |
| Start-up Time | 5s |
| Analog Video | PAL/NTSC |
| Digital Video | YUV/BT.656/LVDS/USB2.0 |
| Image Display | 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot) |
| Image Algorithm | NUC/3DNR/DNS/DRC/EE |
| Electrical Specifications | |
| Standard External Interface | 50pin_HRS |
| Communication Interface | RS232/USB2.0 |
| Supply Voltage | 4~5.5V |
| Typical Power Consumption | 0.8W |
| Temperature Measurement | |
| Operating Temperature Range | -10℃~50℃ |
| Temperature Measurement Range | -20℃~150℃, 0℃~550℃ |
| Temperature Measurement Accuracy | Greater of ±2℃ or ±2% |
| SDK | Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Physical Characteristics | |
| Size (mm) | 25.4×25.4×22.0mm (Without Lens) |
| Weight | 20g (Without Lens) |
| Environmental Adaptability | |
| Operating Temperature | -40℃～+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, 3 Axis |
| Shock | Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction |
| Optics | |

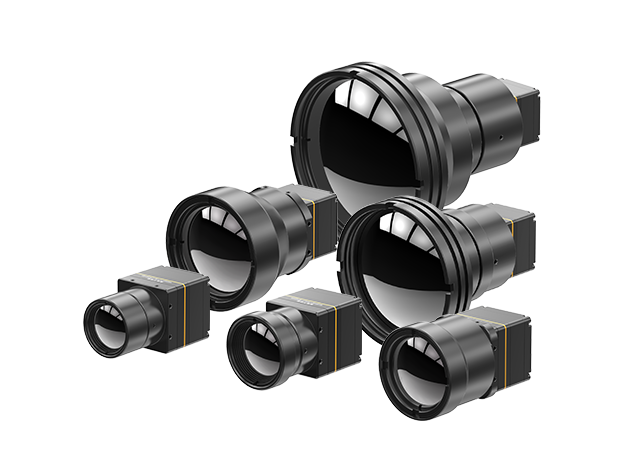

| Optional Lens | Fixed Athermal: 13mm/19mm/25mm/35mm/50mm/70mm (TWIN412) Fixed Athermal: 13mm/19mm/25mm (TWIN412/R) |
Application
UAV Payloads |
Robots |
Firefighting |
