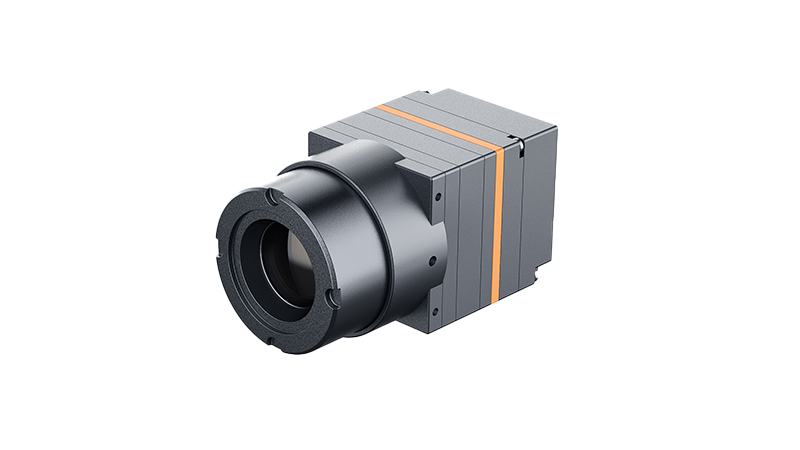

XHCC3 / XHCC3-R
A precision industrial thermography core and algorithm module with built-in NUC/3DNR/DDE image enhancement and temperature-measurement algorithms, weighing under 23g with up to 8 lens options.
Description
The XHCC3 / XHCC3-R is a precision industrial thermography core and algorithm module. It integrates NUC, 3DNR and DDE image enhancement together with temperature-measurement algorithms, weighs less than 23g, and can be paired with up to 8 different lenses.
With a 640 × 512 resolution at 12 μm pixel pitch, it measures temperatures from -20°C to +600°C with an accuracy of ±2°C or ±2%, and outputs data over CVBS, USB or BT.656.
Key Feature
- Precision industrial temperature measurement
- Resolution / pixel pitch: 640×512 / 12μm
- Temperature range: -20°C ~ +600°C
- Temperature accuracy: ±2°C or ±2%
- Data interfaces: CVBS / USB / BT.656
Specification
| Model | XHCC3 / XHCC3-R |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| NETD | ≤ 40 mK |
| Temperature Range | -20°C ~ +150°C, 0°C ~ +600°C |
| Temperature Accuracy | ±2°C or ±2% |
| Module Weight | < 23g |
| Video Interface | CVBS / USB 2.0 / BT.656 |
| Built-in Algorithms | NUC (non-uniformity correction) / 3DNR (noise reduction) / DDE (detail enhancement) |
| Lens Options | Up to 8 athermalized and continuous-zoom lenses available |
