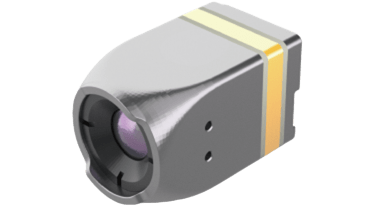

XH009
A multi-function infrared core that outputs PAL analog and UVC digital video at the same time, fitted with a 9.1mm F1.0 lens and widely used in vehicle-mounted and surveillance systems.
Description
The XH009 is a multi-function infrared camera core that can output PAL analog video and UVC digital video simultaneously. It comes fitted with a 9.1mm F1.0 lens and is widely used in vehicle-mounted and surveillance applications.
The core has a 640 × 512 resolution (960 × 768 with Pixel Pump), accepts a wide 4.5V to 24V supply, and measures 22 × 22 × 28.43 mm.
Key Feature
- Simultaneous PAL + UVC output
- Resolution / Pixel Pump: 640×512 (960×768)
- Video output: PAL + UVC, synchronized
- Supply voltage: 4.5V ~ 24V
- Module size: 22 × 22 × 28.43mm
Specification
| Model | XH009 |
| Resolution | 640 × 512 (up to 960 × 768 with Pixel Pump) |
| Pixel Pitch | 12 μm |
| Standard Lens | 9.1mm F1.0 fixed-focus lens |
| Video Output Interface | PAL analog video + UVC digital video (simultaneous output) |
| Power Supply Range | Wide voltage 4.5V ~ 24V DC |
| Module Dimensions | 22 × 22 × 28.43 mm |
| Power Consumption | < 1.5W |
| Housing Material | Aluminum alloy, high-protection structure |
