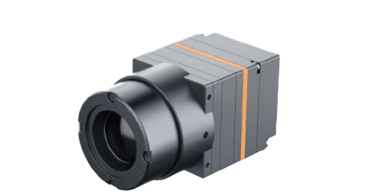

XH120
A high-pixel, multi-channel infrared imaging module whose extended high-resolution output improves small-target recognition for night-vision security and reconnaissance.
Description
The XH120 is a high-pixel, multi-channel infrared imaging module. Its extended high-resolution output improves the recognition of small targets, so it can meet demanding night-vision security and reconnaissance requirements.
It provides a 1280 × 1024 resolution at 12 μm pixel pitch with a thermal sensitivity of ≤ 30 mK, offers UVC, CameraLink and SDI video interfaces, and runs on 5V to 12V with power consumption below 1.5W.
Key Feature
- Extended high-resolution output
- Resolution / pixel pitch: 1280×1024 / 12μm
- NETD: ≤ 30 mK
- Video interfaces: UVC / CameraLink / SDI
- Supply and power: 5V~12V / <1.5W
Specification
| Model | XH120 |
| Resolution | 1280 × 1024 |
| Pixel Pitch | 12 μm |
| NETD | ≤ 30 mK |
| Video Interface | UVC / CameraLink / HD-SDI (optional) |
| Dimensions | 32 × 32 mm |
| Input Voltage | 5V ~ 12V DC |
| Power Consumption | < 1.5W |
| Featured Functions | Multi-target tracking, rich pseudo-color palettes, high-definition night vision |
