iTL160
A lightweight long-wave infrared core optimized for drones and handheld terminals, offering low power consumption and high stability.
Description

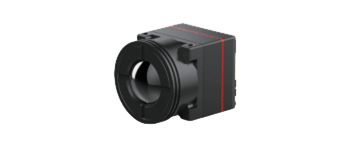

The iTL160 is a lightweight long-wave infrared camera core intended for drone payloads. Its lightweight design is optimized for drones and handheld terminals, and it combines low power consumption with high operating stability.
The core provides a 640 × 512 resolution at 12 μm pixel pitch with a thermal sensitivity of ≤ 30 mK, weighs less than 15g and draws less than 0.7W.
Key Feature
- Designed for drone payloads
- Resolution / pixel pitch: 640×512 / 12μm
- NETD: ≤ 30 mK
- Core weight: < 15g
- Power consumption: < 0.7W
Specification
| Model | iTL160 |
| Detector Type | Uncooled VOx focal plane array |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| NETD | ≤ 30 mK |
| Weight | < 15g |
| Power Consumption | < 0.7W |
| Video Interface | CVBS / DVP / USB |
| Control Interface | RS232-TTL |
| SDK Support | Windows / Linux / Android |
