Goodtech SMS RC Vibration meter - NAX

Goodtech SMS RC Vibration meter

$0.00

Key Features

  • Rotor Quality: ISO 20816, 10816 health indicator, FFT, vibration value
  • Dynamic Balance: ISO 1940 result of G level
  • Spectrum Analysis: TWF & FFT for root cause analysis
  • Vibration Meter: Triple-algorithm of Real-time, Average, Maximum vibration values, views in between Acceleration, Velocity, and Displacement

Description

  • Predictive maintenance. Rotor Care Solution
    All sectors rotating machinery: pump, compressor, motor, gearbox, belt, fan, etc.
      Easy to carry: Light-weighted portable analyzer
      Easy to operate: 2-step simple setting
      Easy to understand: Result in color signals display
      Root cause analysis
    Key Features
      Rotor Quality: ISO 20816, 10816 health indicator, FFT, vibration value
      Dynamic Balance: ISO 1940 result of G level
      Spectrum Analysis: TWF & FFT for root cause analysis
    Vibration Meter: Triple-algorithm of Real-time, Average, Maximum vibration values, views in between Acceleration, Velocity, and Displacement

Highlights

Rotor is the heart and workhorse of the production line. To ensure every process proceeds properly, an inspection is a must to do. By doing root cause analysis, you can avoid unscheduled machine shut down. By performing maintenance based on a reliable scientific basis, you can extend machine lifetime and meanwhile ease maintenance costs. Even after a third-party repair process, you can’t skip the acceptance review mechanism for incoming quality checks.

SMS-RC, a NEW generation of vibration analyzer, features button-free operation. 10″ full touch panel enables the most intuitive user experience than ever.
Industrial graded IP65 display monitor withstands the demanding working environment, dust-tight, water jet proof.

Built-in ISO regulations 20816 & 1940 eliminate the technical threshold of users. The in-house algorithm will automatically tell machine rotor quality and dynamic G level and show in color signals.

10k lines resolution on FFT give you on clear view onsite, with no need for post analysis.

Triple algorithm vibration meter functionality enables a quick switch between max., average, and real-time vibration values.

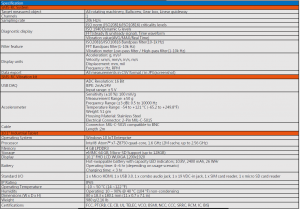

Specification

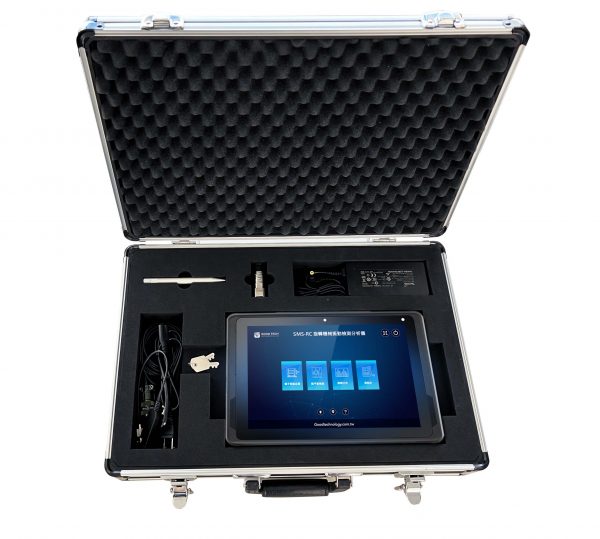

Delivery Scope

Delivery Contents
1 X AIM-68 10″ tablet(Advantech)
1 X SMS-RC SW license

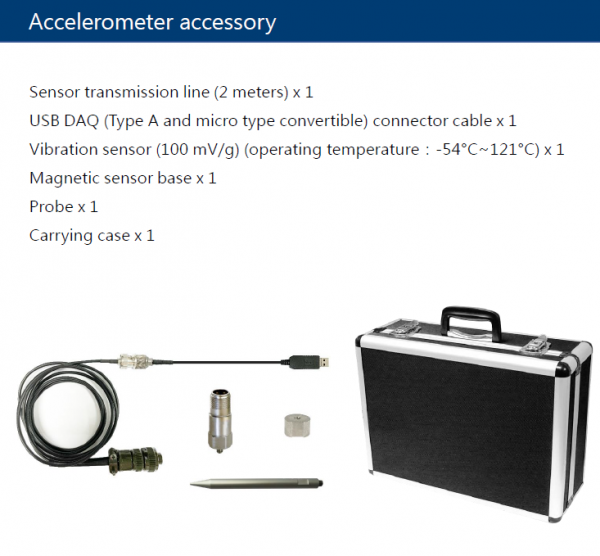

1 X Accelerometer sensor
1 X Accelerometer Magnetic base
1 X Accelerometer cable
USB DAQ cable
Probe
Box

Downloads

SMS-RC data sheet(EN)

SMS-RC flyer (EN)
