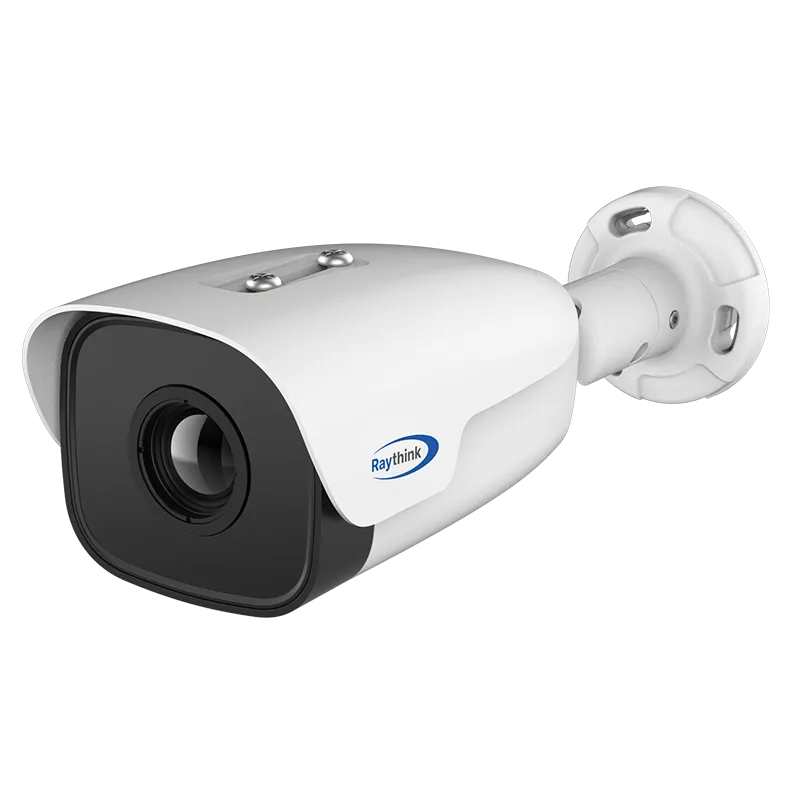

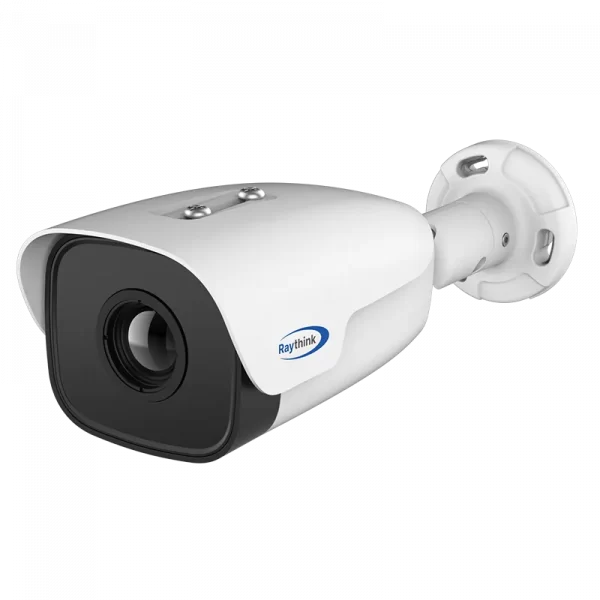

FC4 Series Thermal Bullet Camera
Views: 589
$0.00
- FC4T thermal bullet camera equipped a high-resolution, 12μm pixel pitch thermal detector with various lens options.
- It supports tripwire/intrusion detection and it integrated temperature analysis methods and fire detection function.
- It can be used for perimeter protection and fire prevention in residential areas and commercial facilities.
Description
1. 12 Mm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
2. Intelligent Video Analysis
Support tripwire/intrusion detection, as well as intelligent detection of fire point.
3. Accurate Temperature Measurement
Measurement range from -20°C to 550°C, accuracy ±2°C or 2%.
4. Platform Integration
Support ONVIF, provide SDK and DEMO for development; provide NVR and VMS software for application.
Specifications
| Category | Specifications |
|---|---|
| Thermal Module | |
| Detector Type | VOx detectors, uncooled FPA |
| Spectral Range | 8 ~ 14 μm |
| NETD (GRID) | ≤40 mK (@25 °C, F#1.0, 25 Hz) |
| Resolution | 384 × 288 |
| Pixel Pitch | 12 μm |
| Focal Length | 9.1 mm / 13 mm / 19 mm / 25 mm |
| Temperature Measurement | |
| Temperature Range | -20℃~+550℃ |
| Temperature Accuracy | ±2℃ or ±2% |
| Temperature Measurement | Supports 4 temperature measurement rules (full frame, point, line, area) |
| Smart Function | |
| Fire Detection | Support (Apoyo) |
| ACV | Line crossing and intrusion detection |
| Two-Way Audio | Support (Apoyo) |
| Linking Action | Video/Snapshot/Email/Alarm output/Sound and light alarm |
| System Interface | |
| Power | DC 12V ±25% / POE (802.3at) |
| Network | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio | 1 input / 1 output |
| Alarm | 2 inputs / 1 output |
| Storage | Micro SD memory (maximum 256G) |
| Reboot | Support (Apoyo) |
| Serial Port | 1 RS485 channel, compatible with Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃; <95%RH |
| Protection | IP66 |
| Energy Consumption | ≤4 W |
| Dimension (mm) | 319.5 × 121.5 × 103.6 |
| Weight | ≤1.5 kg |
Applications
Charging Pile

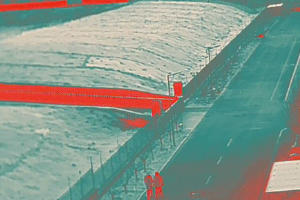

Perimeter Protection
Warehouse
Deposit
