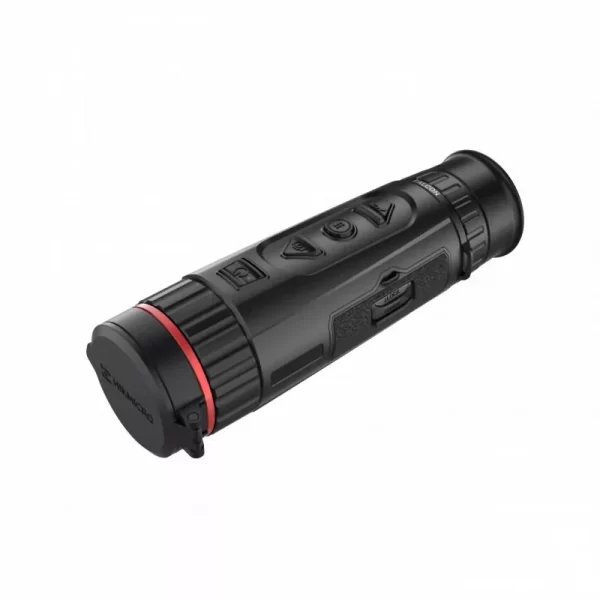

HIKMICRO FALCON
Views: 1030
$0.00
Compact Size, Easy to Carry
Light Weight Design of 310 g/0.68 lb only.
- Additional information
- Description
- Specification
- Advantages
- Video
- Download
- ADDITIONAL INFORMATION
- Reviews (0)
Additional information
| Model | FH25, FH35, FQ25, FQ35, FQ50 |
|---|
Description

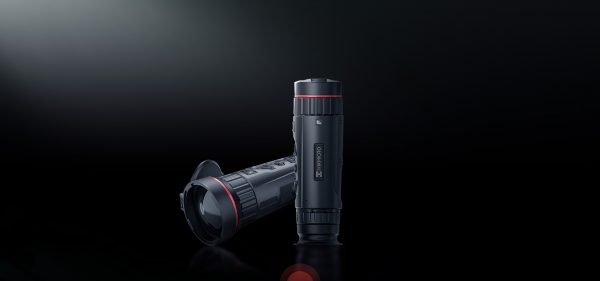

Ultra Clear Image. Impressive Detail Recognition
The higher sensitivity in combination with high definition sensor and larger aperture optics provides the best quality, most detailed & high-contrast, informative image in all weather conditions.
1. Extremely high thermal sensitivity, NETD<20mK
High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves sensitivity. The smallest details of objects and backgrounds can be identified clearly.

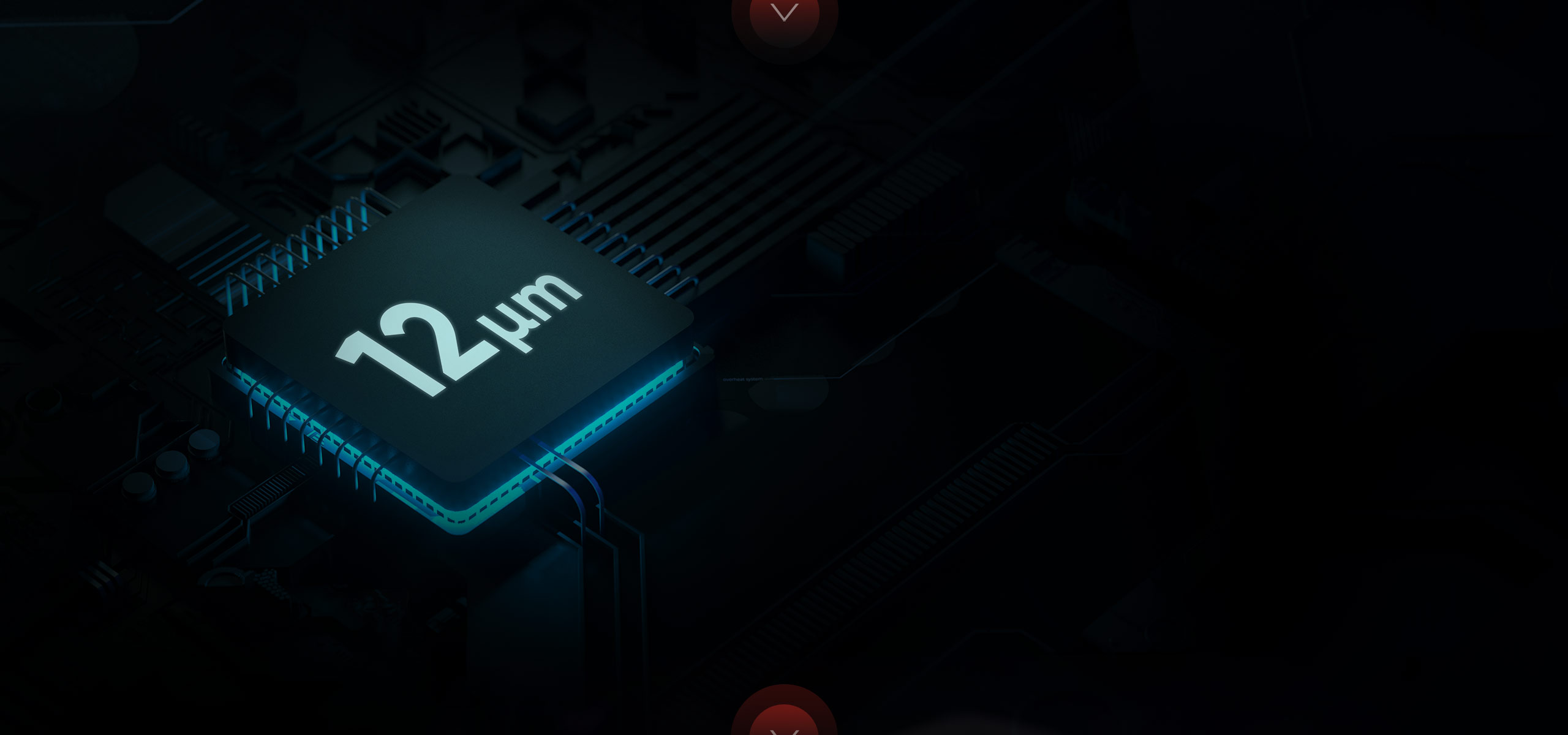

2. High definition thermal detector, up to 640×512 @12μm
Equipped with 12μm high-end thermal detector and up to 640×512 pixel resolution offer an excellent temperature resolution to ensure the thermal image significantly sharp and richly contrasted.

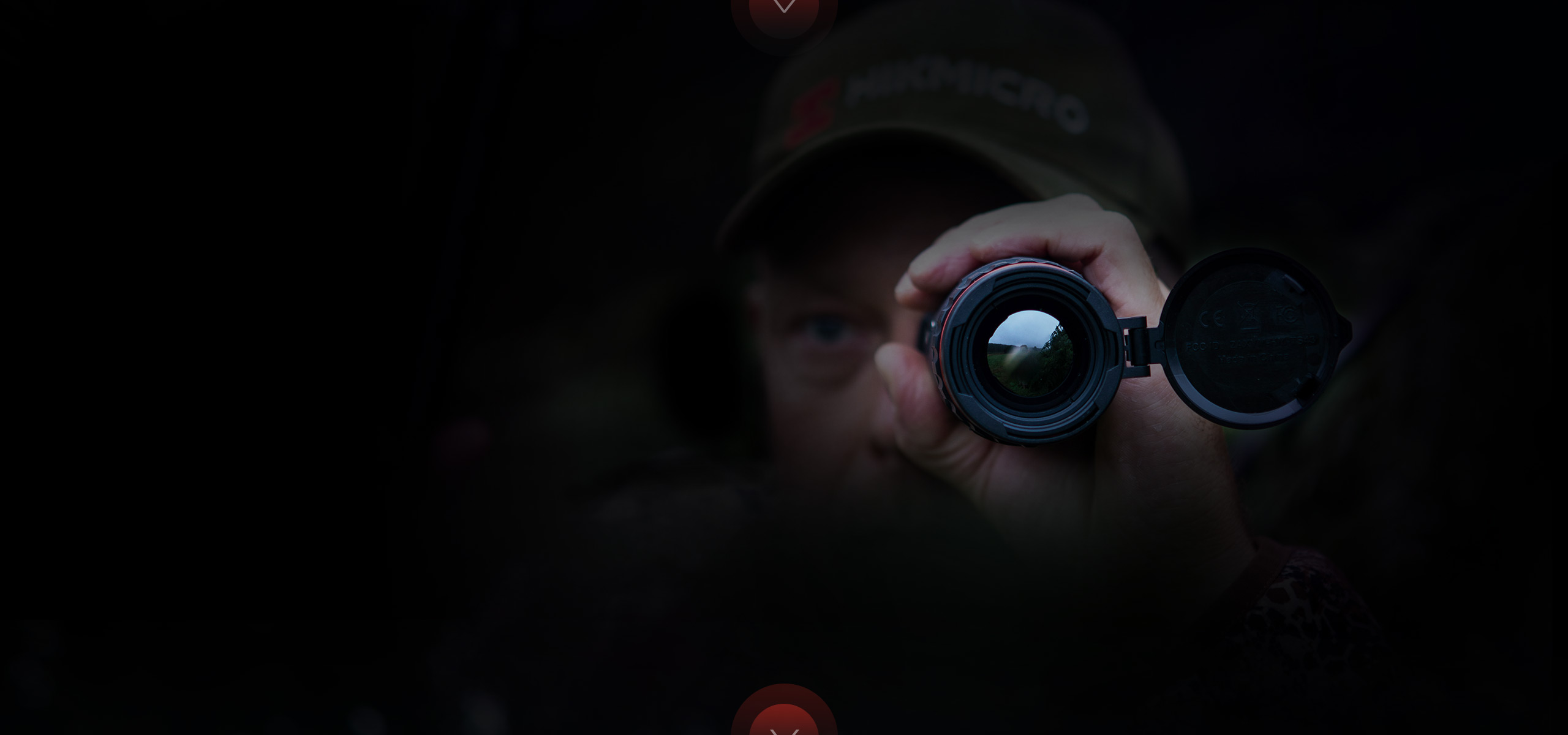

3. Super large aperture f/0.9 lens, 19% improvement
With a high-performance aspheric germanium lens, the super large aperture f/0.9 offers better temperature radiation capturing capability. Compared with the f/1.0 aperture, the capturing of temperature radiation level is increased by 19%. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.
4. Image Pro, enhanced self-developed image processing algorithm
Image Pro, HIKMICRO’s self-developed image processing algorithm, ensures the maximum digital image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.
Significantly Improved Design. Exceptional Ease-to-use.

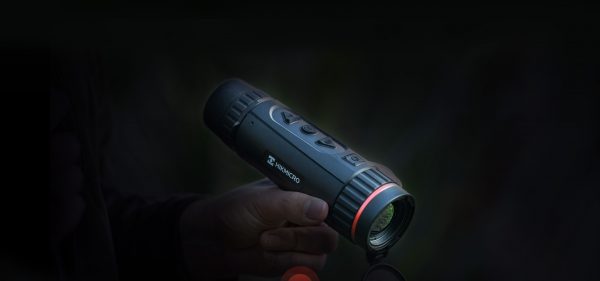

1. Ergonomic cylindrical shape design for better operation experience
The compact and premium cylindrical shape design offers the perfect operation experience. It allows for one-handed operation,and is also optimized for both left-handed and right-handed users. Besides, the device adopts soft and skin-friendly material for a better hand feel.

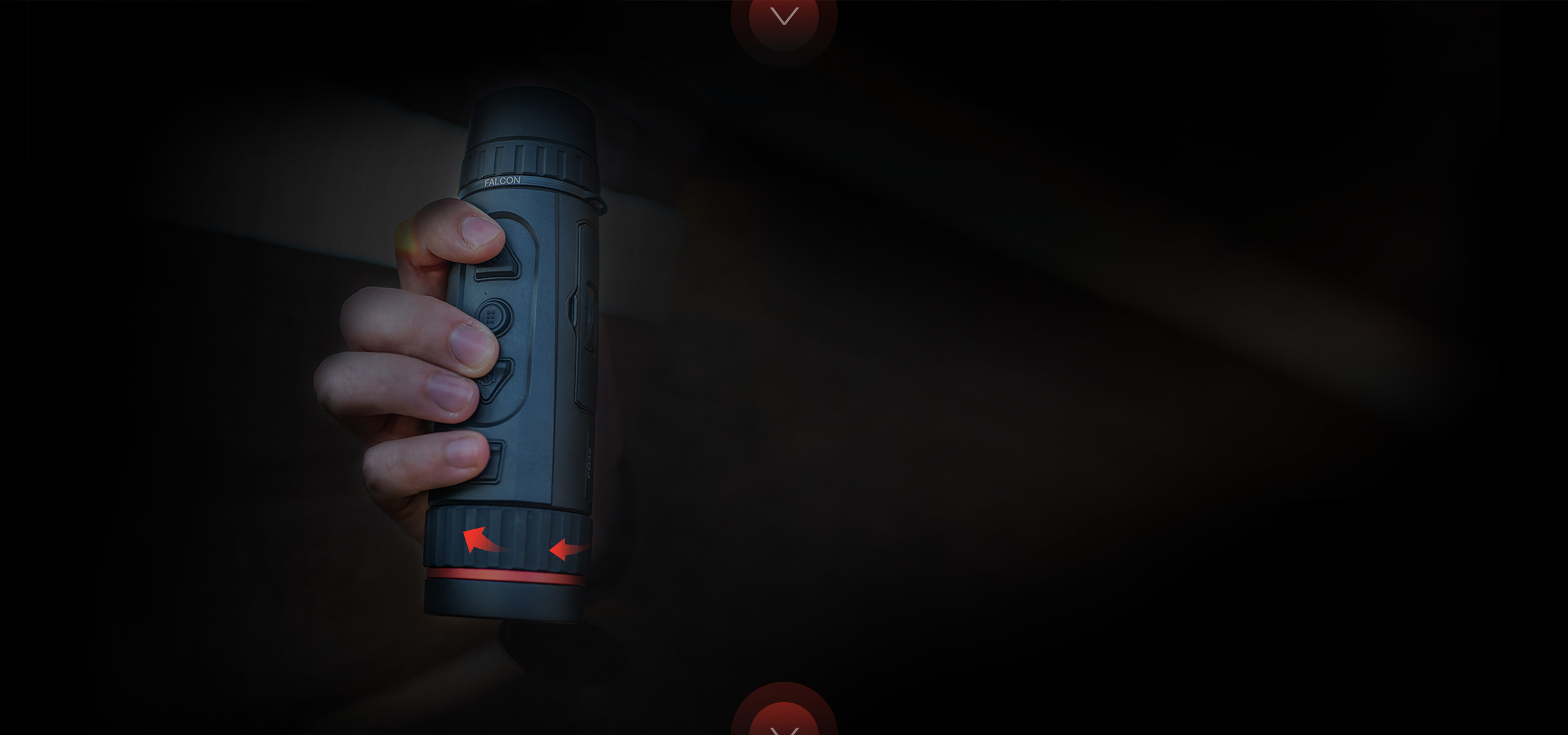

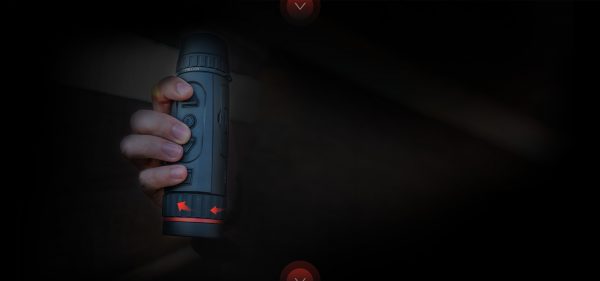

2. Perfect component for intuitive operation
The component design has been greatly improved, which is more in line with the needs of users‘ real use scenarios. The buttons arrangement is very user-friendly and with the different shapes, each function can be identified and controlled intuitively and quickly–even when wearing gloves or under complete darkness.

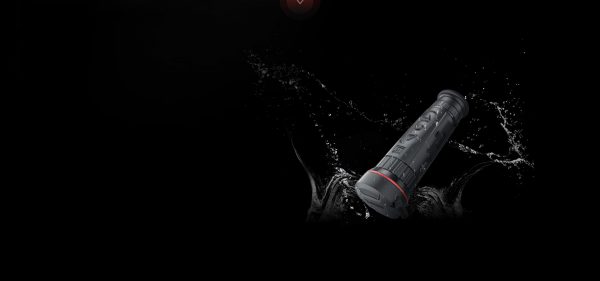

3. Robust magnesium housing and lens coating material for long-time use
The rugged magnesium housing material prevents sweat, rain, mist and dew from corroding. The objective lens adopts SDLC coating technology, which can effectively prevent scratches. With IP67 waterproof-rated, the device can be immersed in up to 1 meter of water for up to 30 minutes. It’s perfect for constant and often hard use.
Replaceable and Rechargeable High Capacity Battery, Not-stop Observation
On one battery pack the device can run up to 7 hours. With the convenient replaceable feature, another battery unit can be used as the spare one for non-stop operation. Besides, power banks connected via a Type-C interface can be used as an external power supply.
See Further or Wider. Catch More Details

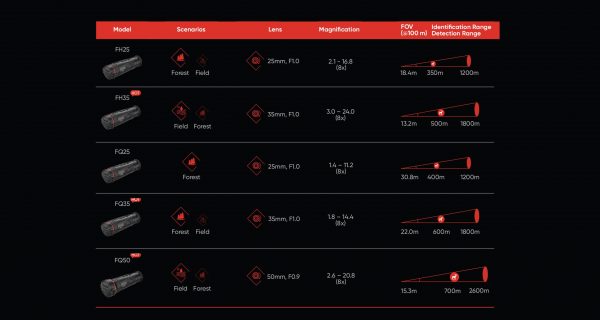

1. Long detection range up to 2600m and very large field of view up to 22m@100m
Suitable for different observation scenes, giving a considerable advantage when stalking at night over long distances from a raised hide in a field, or providing a perfect overview in wooded area over short distances.

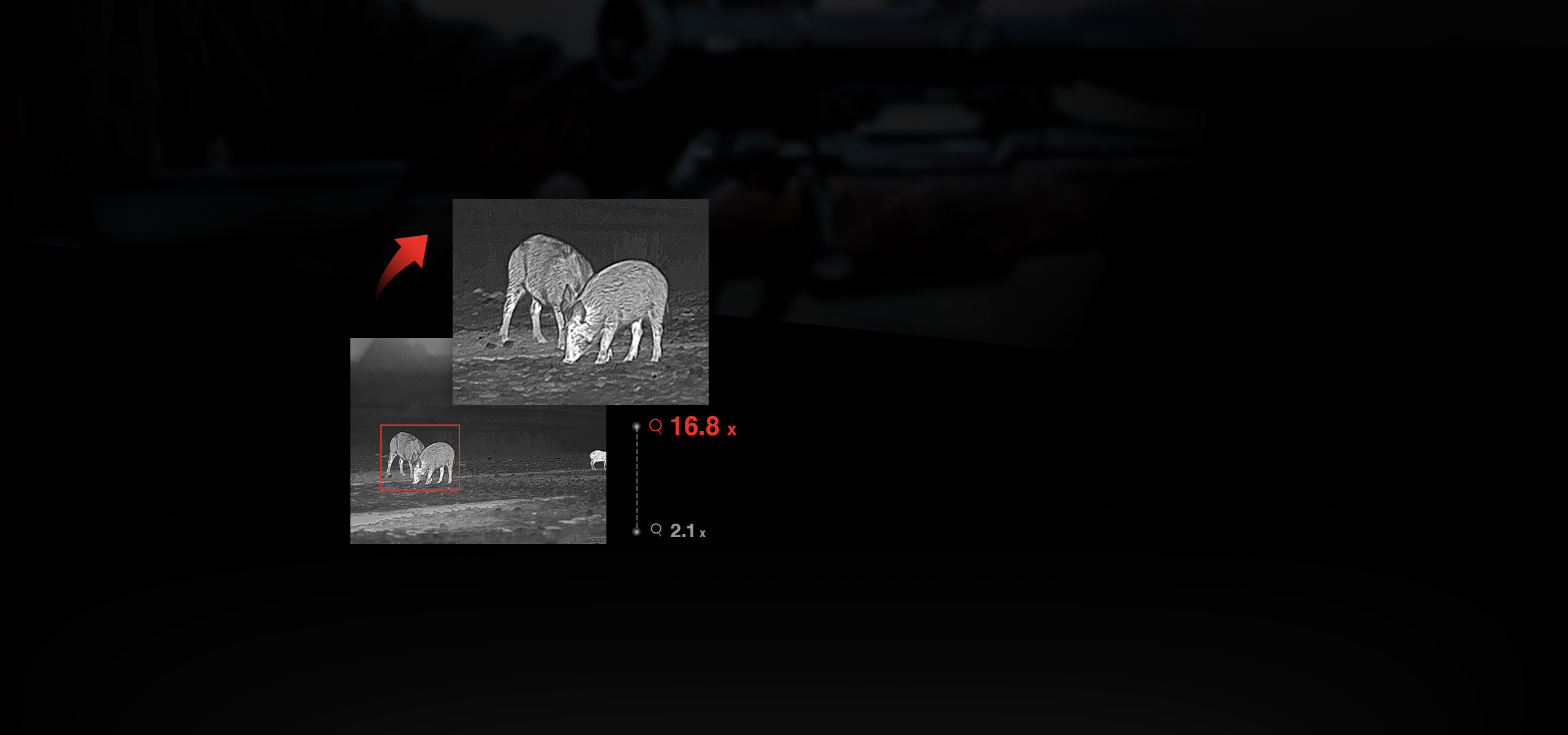

2. Powerful digital zoom, up to 8x
With 8x digital zoom, objects can be reliably identified and recognized at any time, no details remain hidden, even at great distances.
Specification

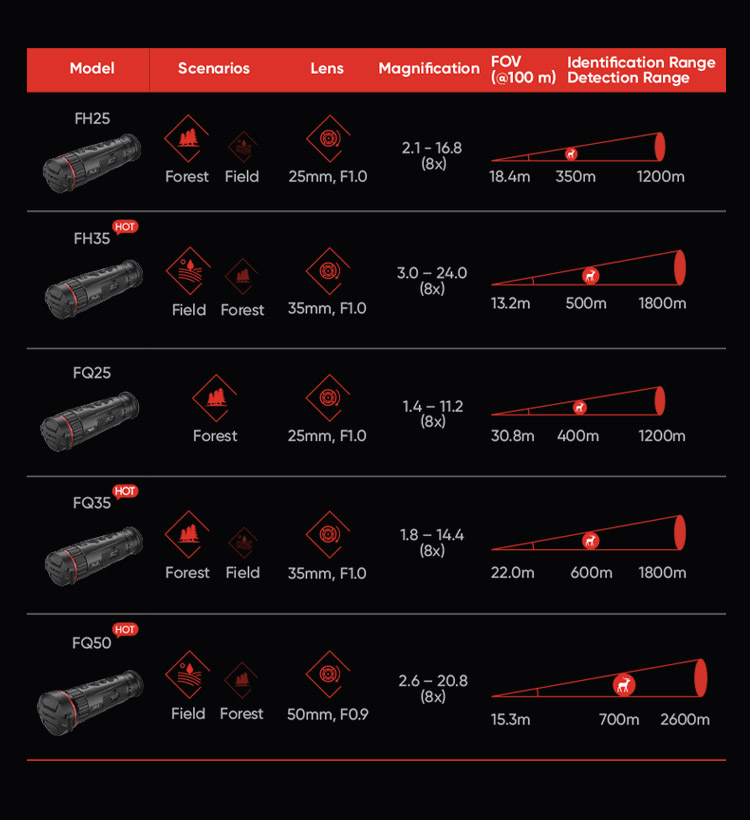

| Product Module | FH25 | FH35 | FQ25 | FQ35 | FQ50 |
|---|---|---|---|---|---|
| Thermal Module | |||||
| Image Sensor | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384×288 | 384×288 | 640×512 | 640×512 | 640×512 |
| Frame Rate | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Pixel Interval | 12μm | 12μm | 12μm | 12μm | 12μm |
| Response Waveband | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm |
| NETD | <20 mK (@25°C), F#=1.0 | <20 mK (@25°C), F#=1.0 | <20 mK (@25°C), F#=1.0 | <20 mK (@25°C), F#=1.0 | <20 mK (@25°C), F#=1.0 |
| Lens (Focal Length) | 25mm, F1.0 | 35mm, F1.0 | 25mm, F1.0 | 35mm, F1.0 | 50mm, F0.9 |
| Detection Range | 1200m | 1800m | 1200m | 1800m | 2600m |
| Focus Mode | Focus Ring | Focus Ring | Focus Ring | Focus Ring | Focus Ring |
| Field of View (H × V) | 10.5°×7.9°/18.4m×13.8m | 7.5°×5.7°/13.1m×10.0m | 17.5°×14.0°/30.8m×24.6m | 12.5°×10.0°/21.9m×17.5m | 8.8°×7.0°/15.4m×12.2m |
| Min. Focusing Distance | 2.5m | 3.5m | 2.5m | 3.5m | 5.0m |
| Magnification | 2.2×-17.6x (8x) | 3.0×-24.0x (8x) | 1.4×-11.2x (8x) | 1.8×-14.4x (8x) | 2.6×-20.8x (8x) |
| Image Display | |||||
| Display | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED |
| Contrast Adjustment | Yes | Yes | Yes | Yes | Yes |
| Brightness Adjustment | Yes | Yes | Yes | Yes | Yes |
| Palettes | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Exit Pupil | 4mm | 4mm | 4mm | 4mm | 4mm |
| Eye Relief | 15mm | 15mm | 15mm | 15mm | 15mm |
| Diopter (Range) | -5D to +3D | -5D to +3D | -5D to +3D | -5D to +3D | -5D to +3D |
| Image Pro | Yes | Yes | Yes | Yes | Yes |
| General | |||||
| Protection Level | IP67 | IP67 | IP67 | IP67 | IP67 |
| Weight | 450g without Battery | 455g without Battery | 450g without Battery | 455g without Battery | 586g without Battery |
| Dimension | 193.8mm x 66.9mm x 58.3mm | 193.8mm x 66.9mm x 58.3mm | 193.8mm x 66.9mm x 58.3mm | 190.3mm x 58.3mm x 65.2mm | 206.5mm x 80.2mm x 68.2mm |
| Work Temperature/Humidity | -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less | -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less | -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less | -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less | -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less |
| System | |||||
| Record Video | Yes | Yes | Yes | Yes | Yes |
| Capture Snapshot | Yes | Yes | Yes | Yes | Yes |
| Hotspot | Yes | Yes | Yes | Yes | Yes |
| Standby Mode | Yes | Yes | Yes | Yes | Yes |
| Storage | Built-in Memory Module (64 GB) | Built-in Memory Module (64 GB) | Built-in Memory Module (64 GB) | Built-in Memory Module (64 GB) | Built-in Memory Module (64 GB) |
| PIP | Yes | Yes | Yes | Yes | Yes |
| Hot Track | Yes | Yes | Yes | Yes | Yes |
| Distance Measurement | Yes | Yes | Yes | Yes | Yes |
| Audio Recording | Yes | Yes | Yes | Yes | Yes |
| Power Supply | 5 | ||||
| Battery Type | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | ≥7h (25°C, with Hotspot Off) | ≥7h (25°C, with Hotspot Off) | ≥5h (25°C, with Hotspot Off) | ≥5h (25°C, with Hotspot Off) | ≥5h (25°C, with Hotspot Off) |
| Type-C Power Supply | 5V DC, 2A Supports External Power Supply |
5V DC, 2A Supports External Power Supply |
5V DC, 2A Supports External Power Supply |
5V DC, 2A Supports External Power Supply |
5V DC, 2A Supports External Power Supply |
Advantages
- Full Color 1024 x 768 HD OLED Display
- Hot tracking mode
- Photo/Video recorder with 64GB built-in memory
- 4 Color Palettes
- HIKMICRO Sight App sharing wonderful moments
Video
Download
ADDITIONAL INFORMATION
| Model | FH25, FH35, FQ25, FQ35, FQ50 |
|---|
