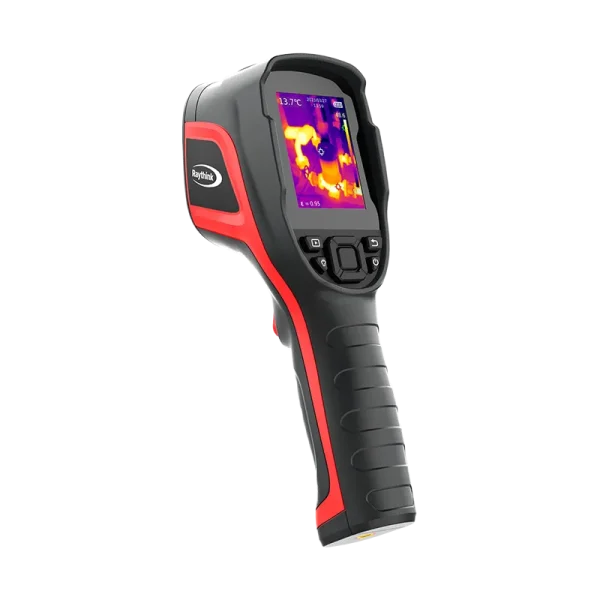

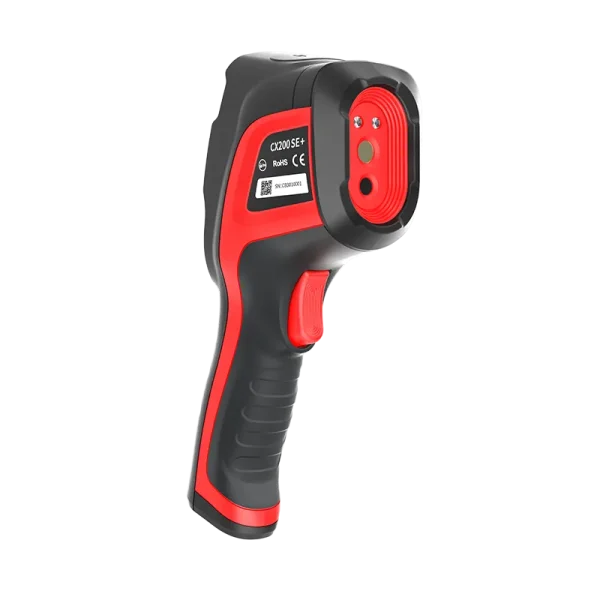

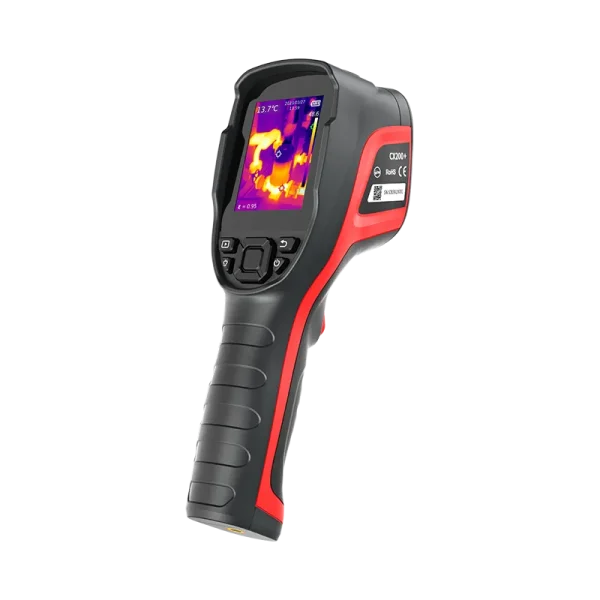

CX200 SE+ Handheld Thermal Camera
Views: 594
$0.00
- Equipped with a high-sensitivity infrared detector with a resolution of 256×192, based on an intelligent image algorithm, the CX200 SE+ handheld thermal camera can generate clearer and sharper thermal images.
- The product has been completely upgraded to give users a better experience.
Description
Image+：distinguish smaller temperature differences and more details
- Equipped with a self-developed 12μm 256×192 uncooled infrared detector.
- NETD as low as 40mK, capturing smaller temperature differences.
- Intelligent image algorithm applied, displaying clearer details of temperature measurement targets and sharper images.
Feature+: professional grade, full services based on thermal sensors, catering to all industrial control scenarios
- Shorter startup duration of 6s and smooth operation response.
- Support automatic switching of temperature measurement modes for efficient operations.
- Support built-in video taking to facilitate analysis and recording.
Performance+: rugged, easy to use, and quick to deploy
- IP54 waterproof and dustproof, and 2m drop protection
- A battery life of 9 hours.
- Built-in 32GB memory card, expandable to 128GB
Software+: complete software ecosystem
- Support complete secondary analysis software for PC
Specifications
| Category | Specifications |
|---|---|
| Thermal Imaging Parameters | |
| Detector Type | Uncooled infrared detector |
| Infrared Resolution | 256×192 |
| Pixel Size | 12μm |
| Spectral Band | 7.5-14μm |
| Thermal Sensitivity (NETD) | ＜40mK (25°C, F1.0) |
| Frame Rate | 25Hz |
| Lens Focal Length | 3.2mm |
| Field of View (FOV) | 56°×42° |
| Spatial Resolution (IFOV) | 3.75mrad |
| Focusing Mode | Fixed focus |
| Minimum Imaging Distance | 0.3m |
| Measurement Range | -20°C ~ +150°C, 100°C ~ +400°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Imaging Display | |
| Display | 2.8 inch, 320×240 |
| Digital Zoom | 1×, 2×, 4× |
| Palettes | 4 options |
| Image Mode | Infrared |
| Temperature Width Stretch | Auto |
| Measurement and Analysis | |
| Analysis Functions on Device | Central temperature point, Highest temperature point, Lowest temperature point |
| Supporting Software | PC (Infrared Analysis Software) |
| Image Storage | |
| Storage Medium | Standard 32GB MicroSD, up to 128GB |
| System Functions | |
| Alarm Type | Highest/Lowest temperature alarm in full frame, image pop-ups, flash prompts, auto image capture at alarm time (with temperature data) |
| Power Management | Auto shut-down setting |
| Others | |
| Battery | Built-in rechargeable lithium-ion battery |
| Charging Mode | USB Type-C |
| Battery Life | About 9h |
| Interface | USB Type-C, SD card |
| Tripod Socket | UNC 1/4-20 interface for tripod |
| Operating Temperature | -10°C ~ +50°C |
| Operating Humidity | 10%~95% (non-condensing) |
| Storage Temperature | -20°C ~ +60°C |
| Ingress Protection Rating | IP54 |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); Vibration: 2.5g (IEC60068-2-6) |
| Weight and Dimensions | About 520g, 237×75×92mm |
| Certifications | CE/RoHS/CMA, etc. |
| Packing List | Infrared camera, USB cable, 32GB SD card, user manual, storage bag, certificate of qualification, calibration certificate |
Applications
Power Maintenance

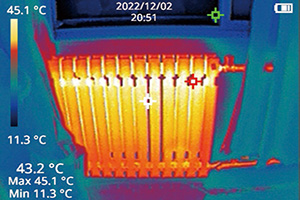

HVAC Leak Detection

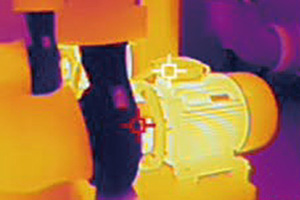

Equipment Inspection
Circuit Board Repairing
