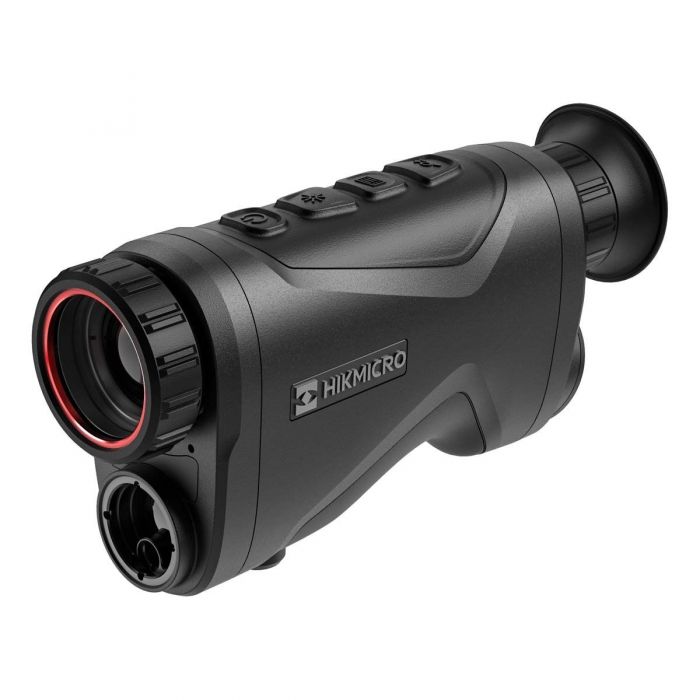

HIKMICRO CONDOR LRF
Views: 1004
$0.00
Image Quality Exploration. Precise Distance Measurement
Vivid, Informative, and Layered Images
- Additional information
- Description
- Specification
- Advantages
- Video
- Download
- ADDITIONAL INFORMATION
- Reviews (0)
Additional information
| Model | CH25L, CH35L, CQ35L, CQ50L |
|---|
Description
Ultra clear image, impressive detail recognition
Powerful high sensitivity (NETD＜20mK) thermal detector of HIKMICRO CONDOR thermal imaging monocular helps small details of objects and backgrounds to be identified easily and clearly in different weather and light conditions.
Purpose-built image algorithm brings stunning image quality
| HIKMICRO’s self-developed image algorithms give HIKMICRO CONDOR thermal monocular highly optimized images and remarkable details. These algorithms are developed based on extensive analysis of diverse hunting scene images and thermal imaging features. |
- HIKMICRO Image Pro ensures the maximum digital image optimization and provides high-quality rendering of both target objects and background, especially in the original magnification.
- HIKMICRO Zoom Pro can help present ultra-clear images with a higher signal-to-noise ratio and impressive details, especially when using digital zoom.
Accurate Distance Measurement
Distance from the game is essential to ensure a safe shot. The integrated laser rangefinder in HIKMICRO CONDOR thermal monocular allows the user to measure a distance up to 1,000m with an accuracy of ±1 meter in various scenarios, enjoying the most precise measurement of the situation.
Perfect Ergonomics, Premium Reliability

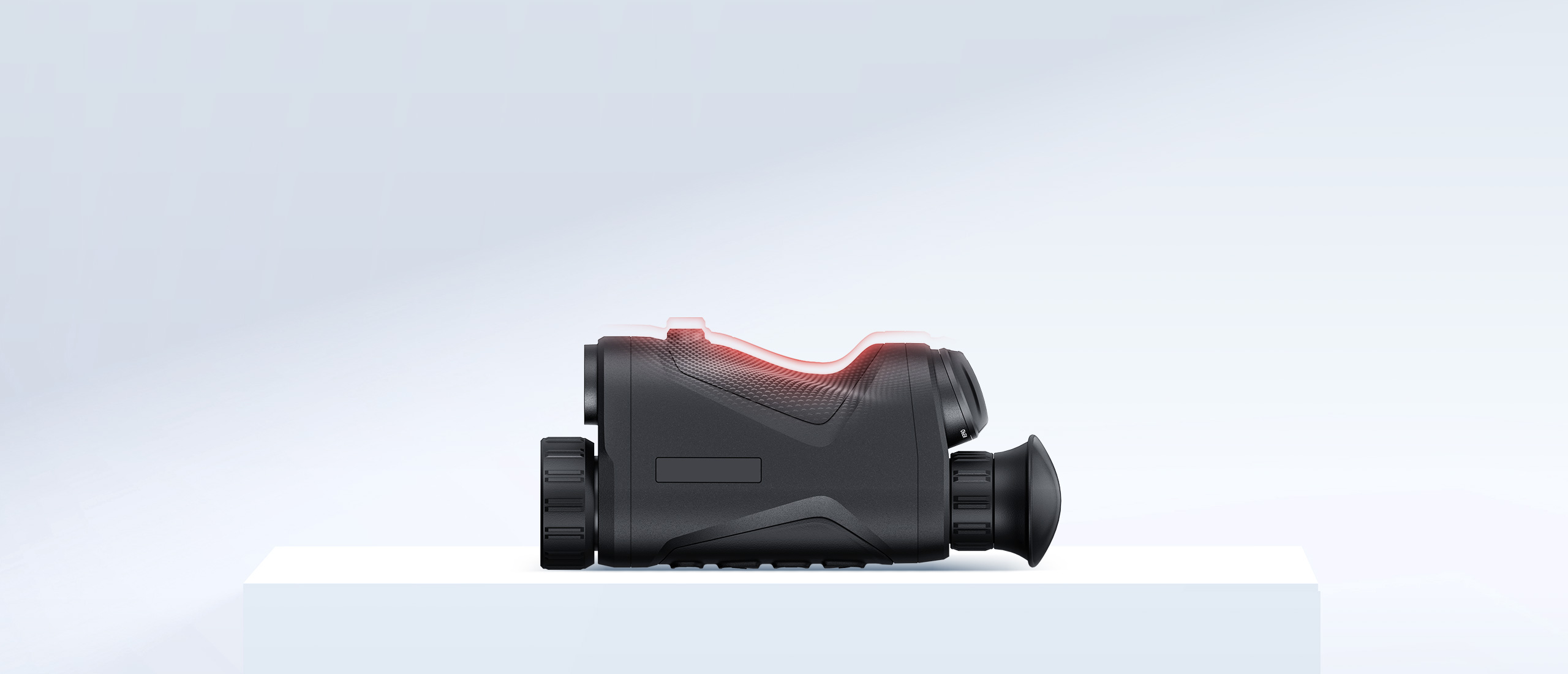

Ergonomic grasping shape design for better operation experience
HIKMICRO CONDOR’s compact and easy-grasp shape design perfectly fits human hands’ purlicue. It adopts soft and skin-friendly material to guarantee better operation for both left- and right- hand users.

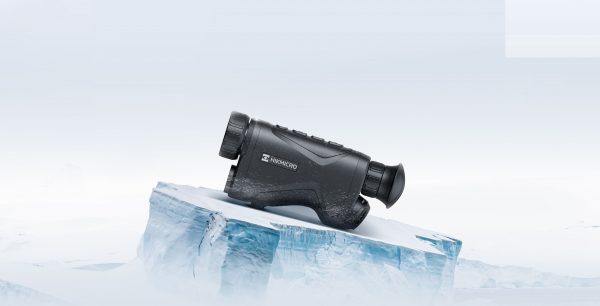

Robust magnesium alloy housing design for long-time use
Magnesium alloy design retains HIKMICRO CONDOR thermal monocular a robust structure with light weight and improves stability to meet long-lasting use under any harsh environmental condition.

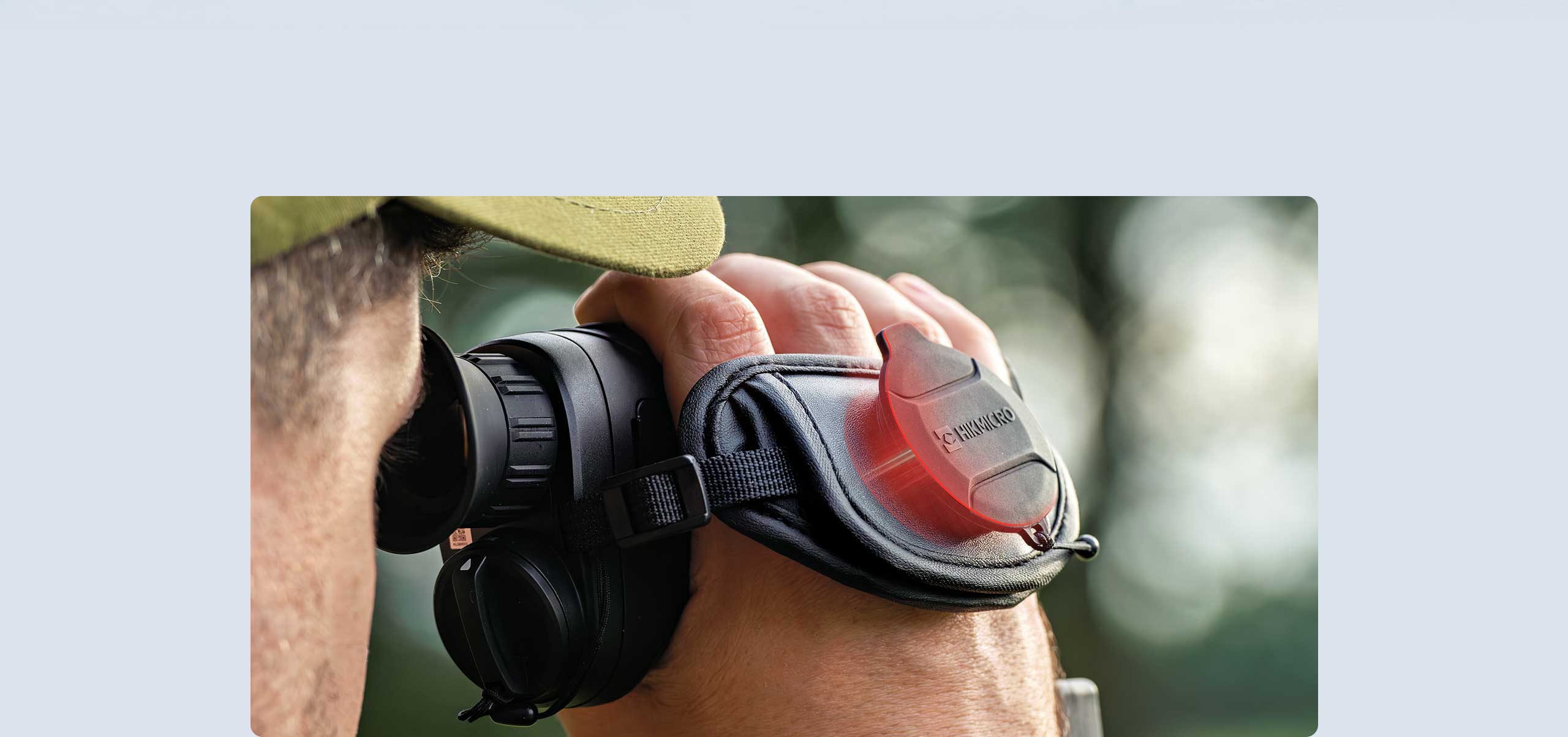

Magnetic lens cover, easily take and collect
Loss-proof magnetic lens cover realizes easy and silent installation and collection, ensuring better protection of the HIKMICRO CONDOR SDLC lens.
Purpose-Built Features Come For Ease-To-Use
Fast boot on function and replaceable batteries bring more lasting use

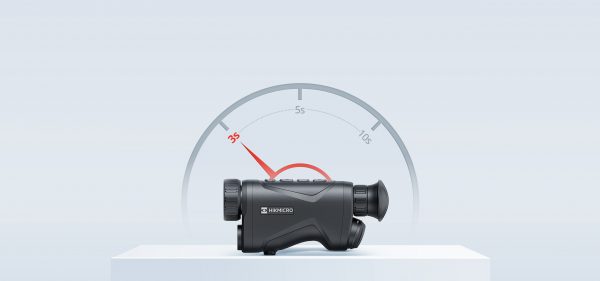

Fast boot on within 3s makes HIKMICRO CONDOR always ready for use
The HIKMICRO CONDOR thermal monocular comes with three replaceable and rechargeable 18650 batteries. Each battery can last for 2 hours of continuous observation with the laser ranging finder on. In total, CONDOR can provide 6 hours of operation, to better capture exciting moments during the game.
Auto screen off darkens the screen to save energy and increase battery time
The integrated algorithm automatically detects HIKMICRO CONDOR‘s exact position and activates the auto screen-off function when there is no need to use it. HIKMICRO CONDOR will stand by automatically at a lateral tilt of 75°as well as at a downward or upward tilt of 70°.
Personalized settings available to the suitable visual experience
HIKMICRO CONDOR thermal monocular is characterized by the hierarchical menu, prioritizing frequently used functions according to user habits. Users can customize their visual experience to the highest level of comfort by adjusting settings such as contrast, sharpness, and other personalized options.
Specification

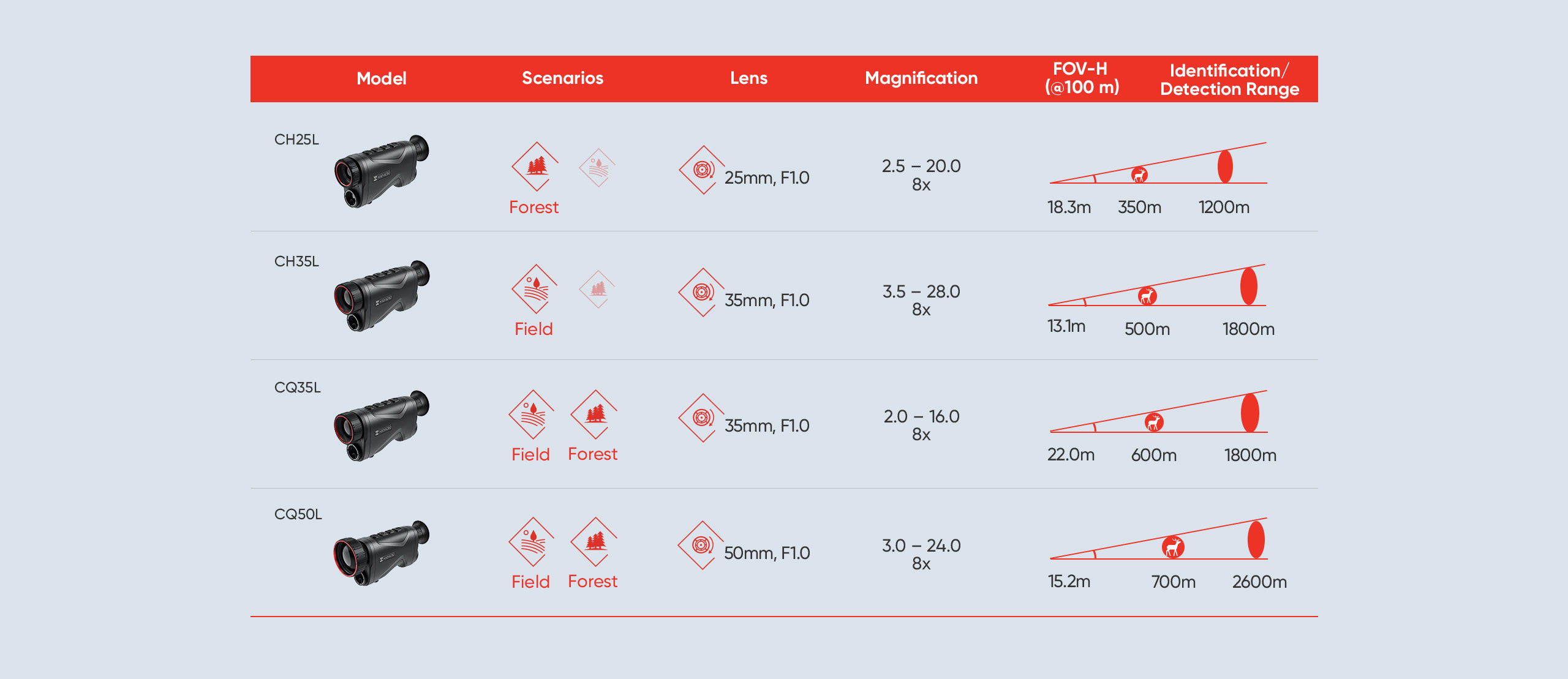

| Product Model | CH25L | CH35L | CQ35L | CQ50L |
|---|---|---|---|---|
| Thermal Module | ||||
| Image Sensor | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384×288 | 384×288 | 640×512 | 640×512 |
| Frame Rate | 50Hz | 50Hz | 50Hz | 50Hz |
| Pixel Interval | 12μm | 12μm | 12μm | 12μm |
| Response Waveband | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm | 8μm to 14μm |
| NETD | Less than 20 mK (@25°C), F#=1.0 | Less than 20 mK (@25°C), F#=1.0 | Less than 20 mK (@25°C), F#=1.0 | Less than 20 mK (@25°C), F#=1.0 |
| Lens (Focal Length) | 25mm, F1.0 | 35mm, F1.0 | 35mm, f1.0 | 50mm, f1.0 |
| Detection Range | 1200m | 1800m | 1800m | 2600m |
| Focus Mode | Focus Ring | Focus Ring | Focus Ring | Focus Ring |
| Field of View (H × V) | 10.5° × 7.9° / 18.3m × 13.8m @ 100m | 7.5° x 5.6° / 13.1m x 9.7m@100m | 12.5°×10.0°/21.9m×17.5m@100m | 8.7° x 7.0°/15.2m x 12.2m@100m |
| Min. Focusing Distance | 2.5m | 3.5m | 3.5m | 5m |
| Magnification | 2.5x-20.0x (8x) | 3.5x-28.0x (8x) | 2.0x-16.0x (8x) | 3.0x-24.0x (8x) |
| Image Display | ||||
| Display | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED |
| Contrast Adjustment | Yes | Yes | Yes | Yes |
| Brightness Adjustment | Yes | Yes | Yes | Yes |
| Palettes | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Exit Pupil | 4mm | 4mm | 4mm | 4mm |
| Eye Relief | 15mm | 15mm | 15mm | 15mm |
| Diopter (Range) | -5D to +3D | -5D to +3D | -5D to +3D | -5D to +3D |
| Image Pro | Yes | Yes | Yes | Yes |
| Tone Adjustment | Cold, Warm | Cold, Warm | Cold, Warm | Cold, Warm |
| Zoom Pro | Yes | Yes | Yes | Yes |
| General | ||||
| Protection Level | IP67 | IP67 | IP67 | IP67 |
| Weight | 386g without battery | 400g without battery | 400g without battery | 450g without Battery |
| Dimension | 180.7 mm × 52.7 mm × 85.4 mm (7.11″ × 2.07″ × 3.36 “) | 184.9 mm × 53 mm × 87.8 mm (7.28″ × 2.09″ × 3.46 “) | 184.9 mm × 53 mm × 87.8 mm (7.28″ × 2.09″ × 3.46 “) | 197.1mm × 60 mm × 94.9 mm (7.76″ × 2.36″ × 3.74 “) |
| Working Temperature | -30°C to +55°C | -30°C to +55°C | -30°C to +55°C | -30 °C to 55°C |
| System | ||||
| Record Video | Yes | Yes | Yes | Yes |
| Capture Snapshot | Yes | Yes | Yes | Yes |
| Hotspot | Yes | Yes | Yes | Yes |
| Standby Mode | Yes | Yes | Yes | Yes |
| Storage | Built-in EMMC (64GB) | Built-in EMMC (64GB) | Built-in EMMC (64GB) | Built-in EMMC (64GB) |
| PIP | Yes | Yes | Yes | Yes |
| Hot Track | Yes | Yes | Yes | Yes |
| Distance Measurement | Yes | Yes | Yes | Yes |
| Audio Recording | Yes | Yes | Yes | Yes |
| Power Supply | ||||
| Battery Type | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | 4.5 hours of continuous running with CVBS and hotspot function off (@25°C, one provided battery) | 4.5 hours of continuous running with CVBS and hotspot function off (@25°C, one provided battery) | 4 hours of continuous running with CVBS and hotspot function off (@25°C, one provided battery) | 4 hours of continuous running with CVBS and hotspot function off (@25°C, one provided battery) |
| 6 hours of operation (LRF & hotspot on, @25℃, three provided batteries) | 6 hours of operation (LRF & hotspot on, @25℃, three provided batteries) | 6 hours of operation (LRF & hotspot on, @25℃, three provided batteries) | 6 hours of operation (LRF & hotspot on, @25℃, three provided batteries) | |
| Type-C Power Supply | 5V DC, 2 A | 5V DC, 2 A | 5V DC, 2 A | 5V DC, 2 A |
| Supports External Power Supply | Yes | Yes | Yes | Yes |
| Laser Rangefinder | ||||
| Safety Class for Laser | Class 1 | Class 1 | Class 1 | Class 1 |
| Wavelength | 905nm | 905nm | 905nm | 905nm |
| Max. Measuring Range | 1000m | 1000m | 1000m | 1000m |
| Measurement Accuracy | ±1m | ±1m | ±1m | ±1m |
| Min. Measuring Range | 10m | 10m | 10m | 10m |
Advantages
- Integrated hotspot module makes Sight App as a second display.
- Up to 2600m detection range
- -30°C ~ +55°C
- Audio and video available
