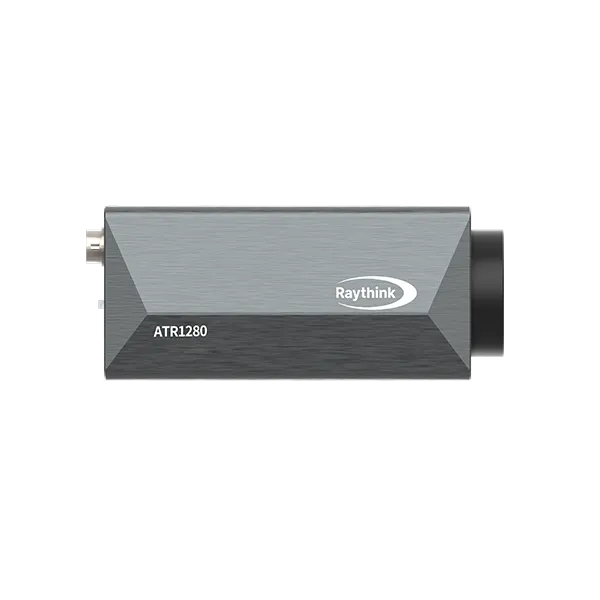

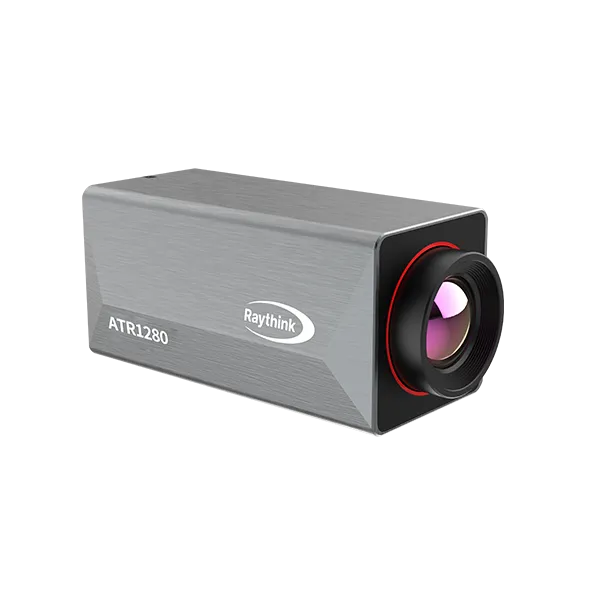

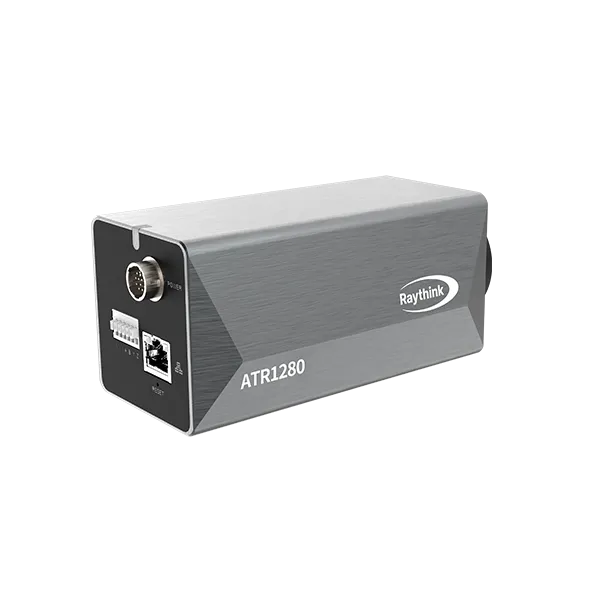

ATR1280 HD Online Thermal Camera
Views: 631
$0.00
- ATR1280 is a high-performance and high-precision electrically adjustable temperature measurement thermal imager that outputs infrared images with a resolution of 1280 x 1024.
- It adopts an electric focusing scheme and supports the GigE protocol, ensuring stable operation and fast response.
- Equipped with professional application software, it is an ideal choice for fields such as education, scientific research, and industrial automation.
Description
High-definition images and precise temperature measurement
Using an infrared detector with a resolution of up to 1280×1024, ATR1280 provides users with clearer and more detailed infrared thermal images.
High-speed data transmission
Equipped with a Gigabit network interface that supports the GigE protocol, the device enables real-time transmission of temperature data, for remote monitoring and data analysis in industrial scenarios.
Wide measurement range and temperature compensation algorithm
With a wide measurement range from -20°C to +550°C, ATR1280 is suitable for industrial scenarios with various high-temperature requirements. The device utilizes a temperature compensation algorithm to adjust for environmental factors and ensure measurement accuracy and reliability.
Specifications
| Category | Specifications |
|---|---|
| Thermal Imaging Parameters | |
| Detector | Uncooled VOx detector |
| Infrared Resolution | 1280×1024 |
| Pixel Pitch | 12μm |
| Spectral Band | 8μm~14μm |
| Thermal Sensitivity (NETD) | 50mK |
| Temperature Measurement Function | |
| Measurement Range | -20℃~+150℃, 0℃~550℃ |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Temperature Measurement Correction | Reflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distance |
| Measurement Tool | Settings for 12 points, lines, and areas; Supports isotherm setting |
| Temperature Width Stretch | Supports temperature width stretch |
| Image and Video | |
| Frame Rate | 15Hz |
| Palettes | 18 color palettes including black-hot, white-hot, iron red, rainbow, etc. |
| Thermal Image Capture | Supports thermal image capture and secondary analysis |
| Mirror Image | Horizontal/Vertical/Diagonal |
| Digital Zoom | 1.0~8.0 continuous zoom (step size: 0.1) |
| System Interface | |
| Communication Interface | RJ45, supporting Gigabit network |
| Network Protocol | TCP, UDP, ICMP, DHCP |
| Interface Protocol | GigE Vision |
| Device Specifications | |
| Operating Temperature | -20℃~+60℃ |
| Power Supply Mode | 6~16V DC |
| Typical Power Consumption | 4.5W |
| Dimensions | 70mm×63mm×143mm (19mm lens) |
| Weight | Approx. 725g (19mm lens) |
Applications
Automatization
Electronic Circuit Inspection

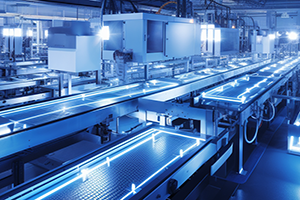

Machine Vision
Power Monitoring
