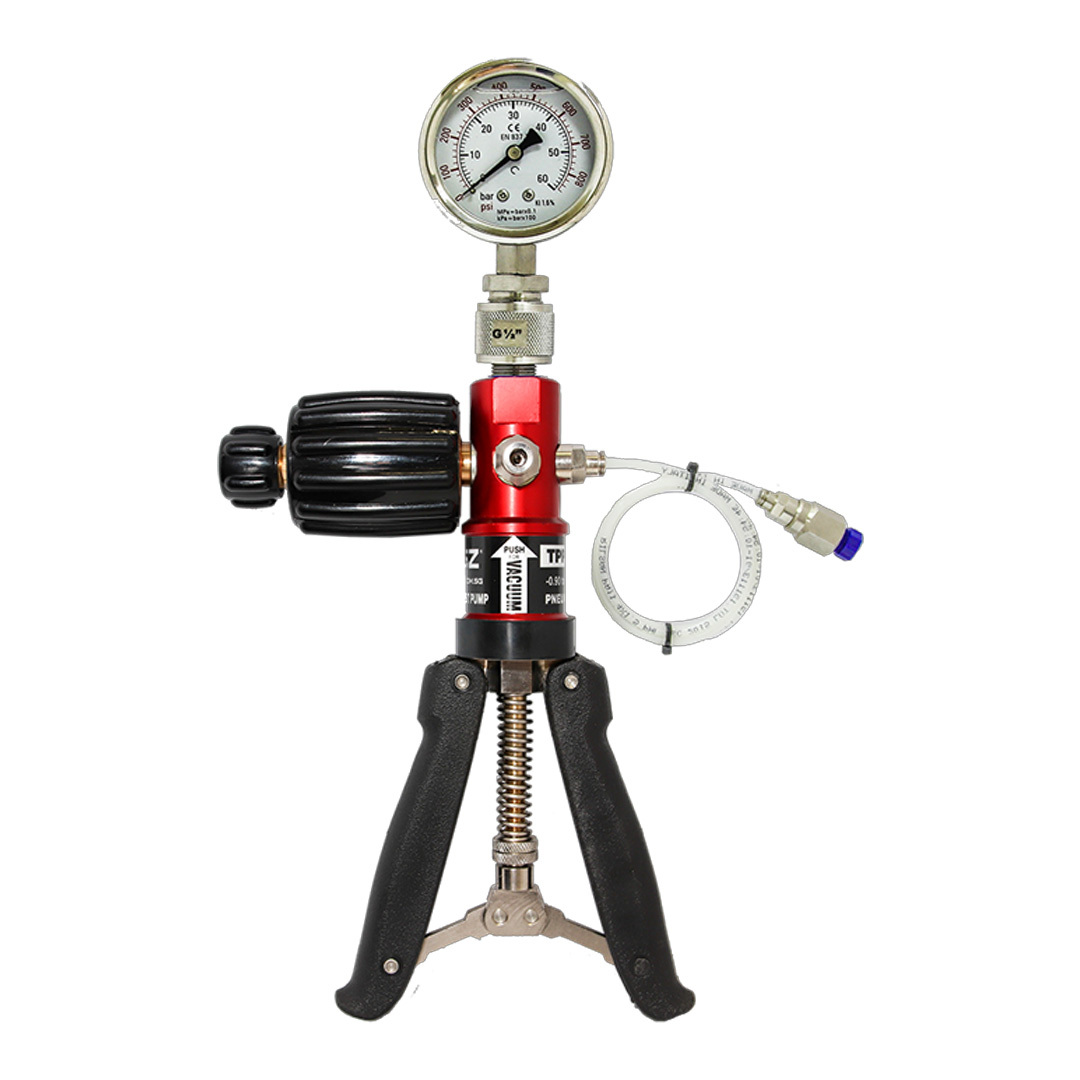

TESZ – TPP40/TPP60 Pressure Calibrator

Views: 667

$0.00

Ideal tool for checking & Calibration of Pneumatic
Digital Indicators, Manometers, Pressure
Transducers / Transmitters, Pneumatic Loops etc.

Description

Pressure Calibrator
(TESZ – TPP40/ TPP60)

Ideal tool for checking & Calibration of Pneumatic
Digital Indicators, Manometers, Pressure
Transducers / Transmitters, Pneumatic Loops etc.

Highlights

Heavy Duty
Rugged Field Use/ Calibration at Site
Compact, Light Weight, Hand Operated
Combined Vacuum & Pressure Pump with Pressure / Vacuum Changeover option
Fine Adjustment Vernier to realize up to 1 mBar Resolution / Sensitivity
Very Low Leakage rate
Flexible Nylon Hose (1 Meter) with Swivel Adaptor to connect devices under test
Traceable Calibration Certificate Included
Comes with carrying case & test gauge

Specification

Maker TESZ®
Model TPP40
Range -0.9 Bar Vacuum to 40 Bar Pressure
Medium Air
Sensitivity / Resolution Up to 1 mbar
Test Connection Port 1/4″ (F) BSP
Gauge / Indicator
Connection Port
1/2” (F) BSP
Instrument Dimensions
(excluding gauge)
230 x 140 x 65 mm (L x B x H)
Instrument Weight
(excluding gauge)
Approx. 800g

Downloads

Pressure Calibrator (TPP40_TPP60) Datasheet
