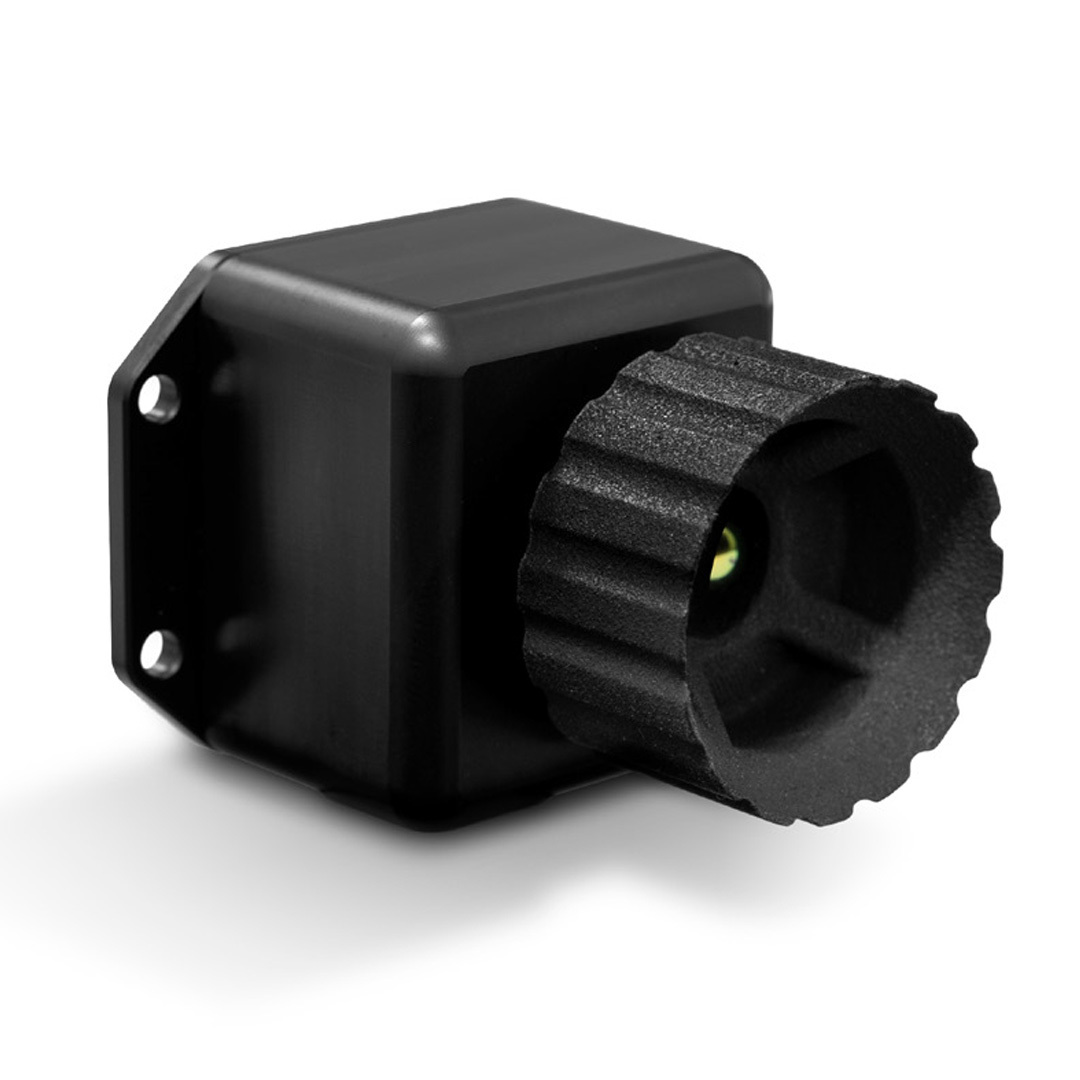

Seek InspectionCAM
Views: 1367
$0.00
Inspect electrical components with high-resolution thermal imaging
Description
Affordable, High-Performance Thermal Imaging

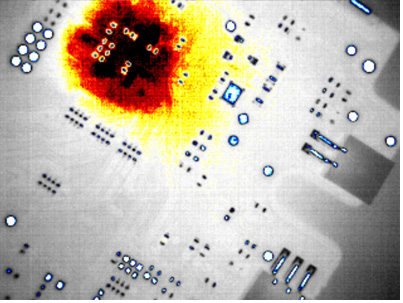

Seek Inspection Camera is a low-cost, high-resolution thermal imaging solution that enables fast, detailed analysis of electronic components. The data and heat signature provided by a thermal image can reveal undesired operating states, such as excessive thermal stress, damaged boards and components, and other potential failure points invisible to the naked eye. Seek Inspection Camera eliminates the difficulty and time-consuming task of identifying these failures using other test and measurement equipment.

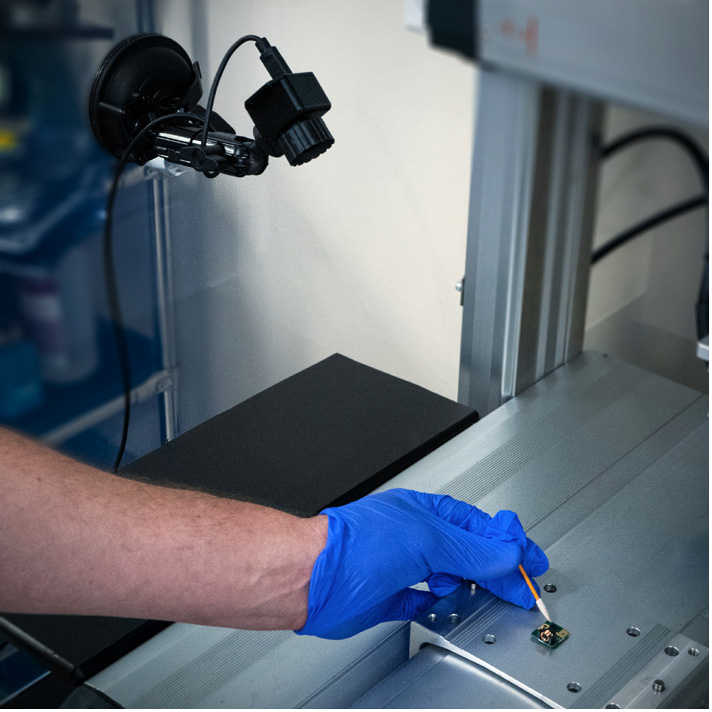

Seek Inspection Camera is ideal for first article and incoming quality inspection, monitoring tight spaces, and general testing and scientific research.
Key Features
320 x 240 High-Resolution Thermal Sensor
76,800 temperature pixels for maximum image clarity and sensitivity

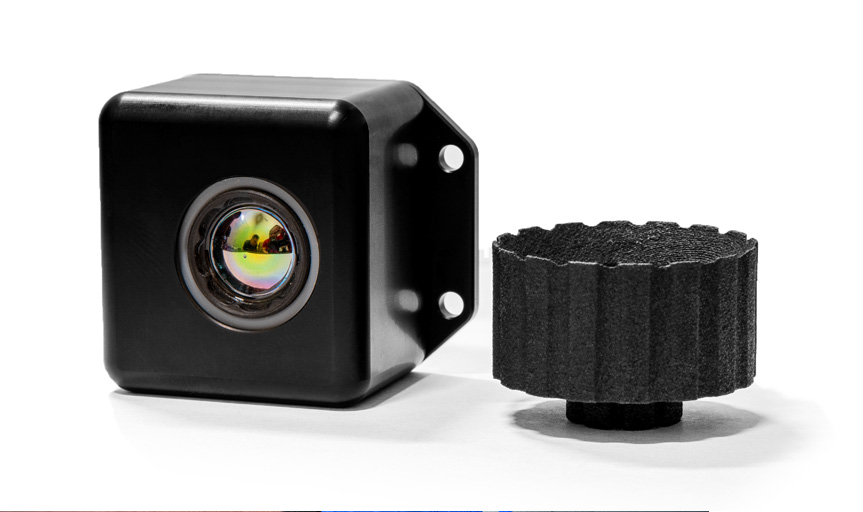

Adjustable 9.1mm Lens
4cm minimum focal distance with a spot size of 52μm per pixel
Dual-Gain Smart Pixels
Observe very high and low temperatures simultaneously with clarity and accuracy
+2 Million Data Points a Second
Access 3 data lines per pixel for every frame (digital, display, and temperature) via Seek Thermal SDKs
Certified for Laboratory Use
EN IEC 61326-1 certified for laboratory use
Thermal Provides Fast & Accurate Analysis

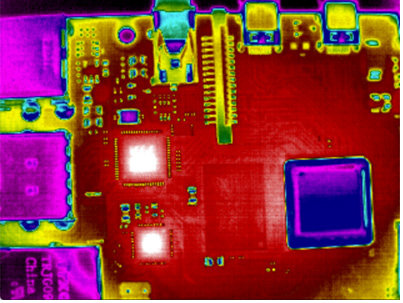

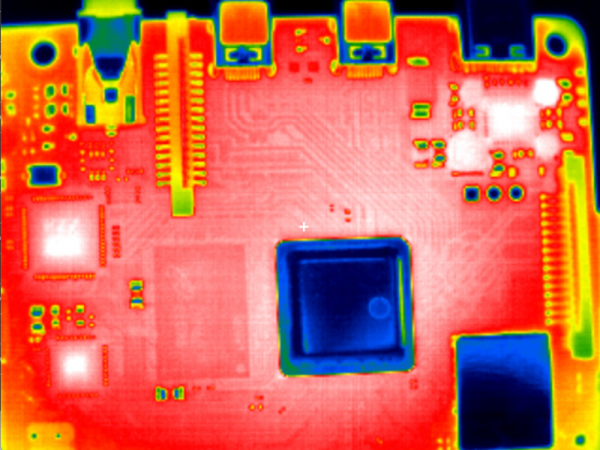

See electrical flow and layout of an entire board in seconds
Confirm Electrical Repairs are Successful
Use temperature data and thermal images to ensure electronics are working as designed

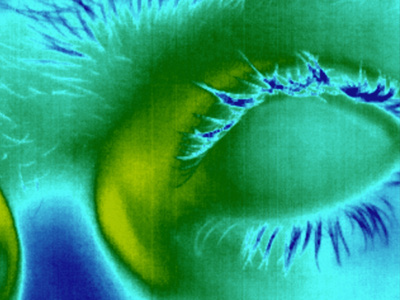

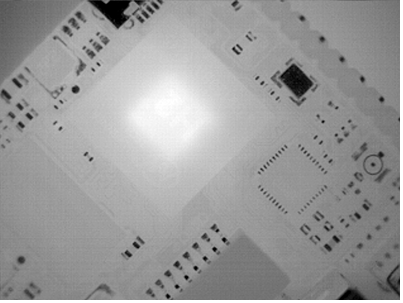

See Detail Up Close.
Evaluate performance in high detail with a large lens and small minimum focus distance
Use Thermal Data for Automation
Process millions of data points a second in a variety of machine learning and AI algorithms
Easy Integration
Use pre-built software or take advantage of SDKs for custom integration with existing systems

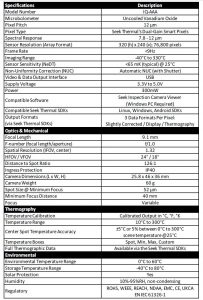

Specification
