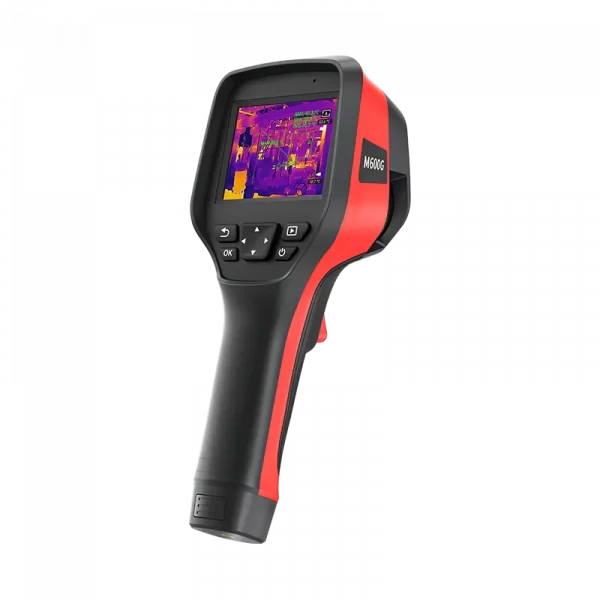

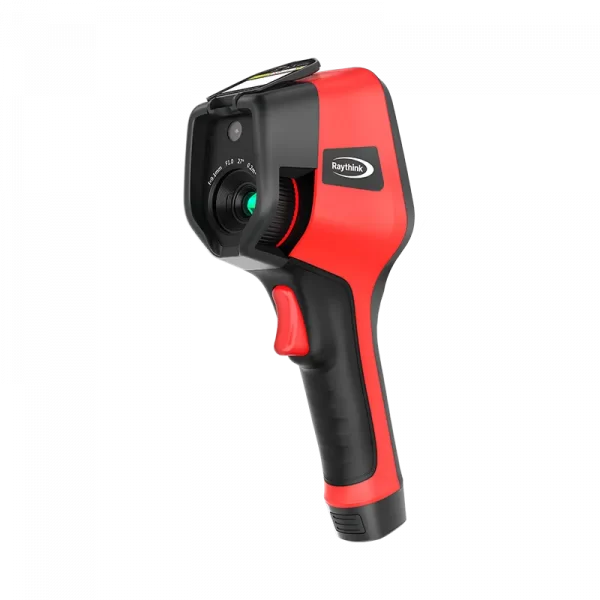

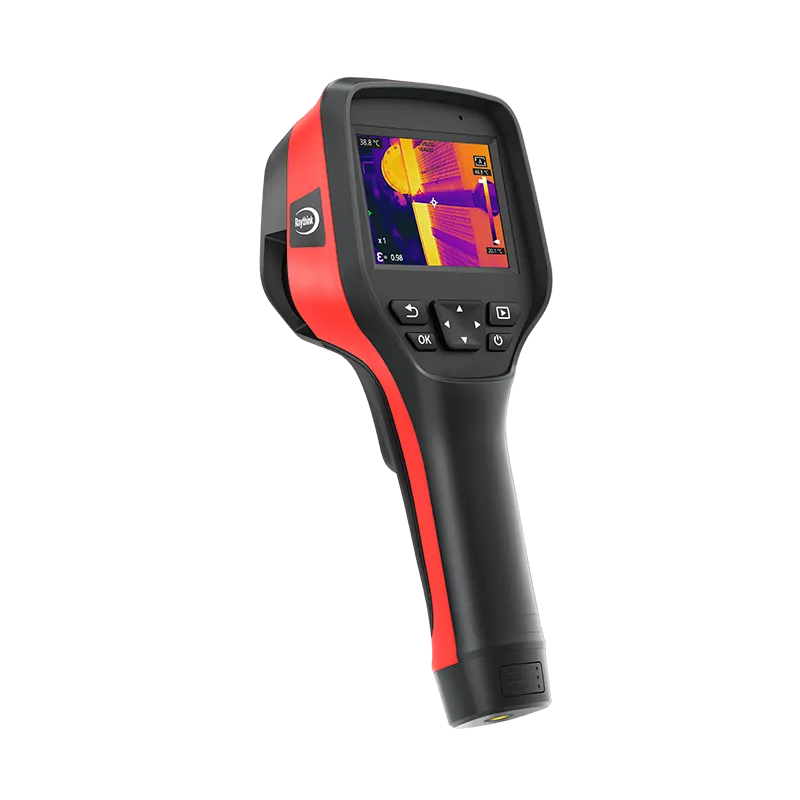

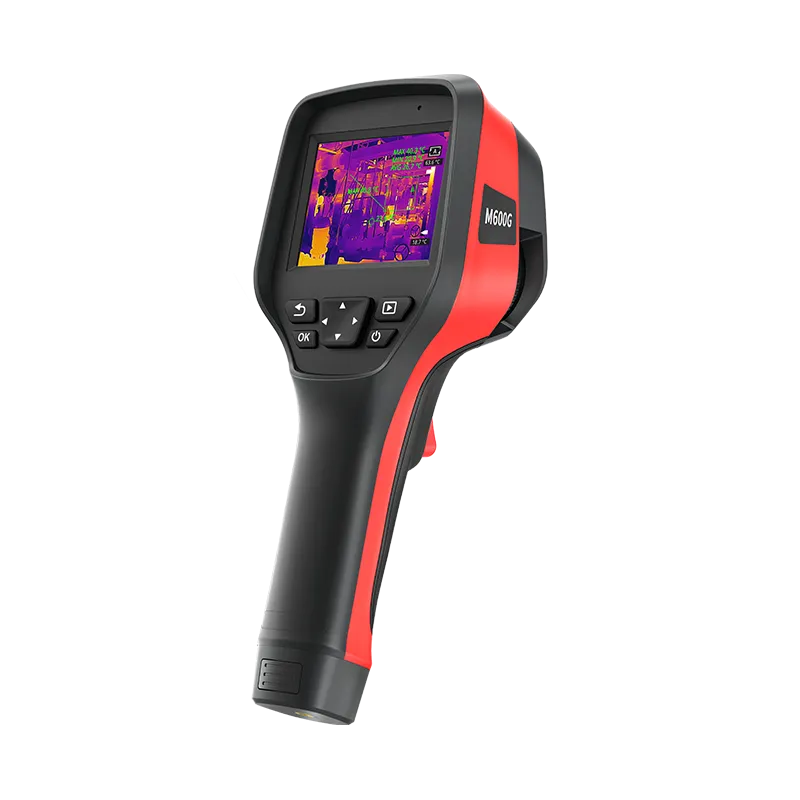

RM600G Professional Handheld Thermal Camera
Views: 987
$0.00
- RM600G is a professional-grade handheld thermal camera, featuring high resolution and manual focus for temperature measurement.
- It is equipped with a self-developed 640×512 infrared detector, providing a high sensitivity of 35mK.
- It finds extensive applications in fields such as electric power, electrical automation, building inspection, and commercial HVAC.
Description
Clear Thermal Images, Precise Temperature Measurement
- 12μm high-performance 640×512 uncooled infrared detector.
- NETD as low as 35mK, capable of distinguishing temperature differences of 0.035°C.
- USB plug-and-play analysis, real-time full-frame transmission, and analysis of temperature information.
Professional Functions, Multi-dimensional Design
- Support full-frame high/low-temperature alarms and scheduled image capture, and record temperature rise changes.
- Capable of automatically tracking the highest temperature, the lowest temperature, and the central-point temperature within the measurement area.
- Support multiple image modes+10 palette settings to meet temperature measurement under different requirements.
- Support professional thermal imaging analysis software on the app, PC.
Hard-core Configuration, High-end Experience
- IP54 and 2m drop protection, solid and durable.
- 3.5-inch touch screen, 640×480 resolution
- Built-in laser pointer module for quick target locating.
Specifications
| Category | Specifications |
|---|---|
| Thermal Imaging | |
| Detector Type | Uncooled infrared detector |
| Infrared Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Band | 7.5-14μm |
| Thermal Sensitivity (NETD) | ＜35mK (25°C, F1.0) |
| Frame Rate | 30Hz |
| Lens Focal Length | 9.1mm |
| FOV | 48°×38° |
| Spatial Resolution (IFOV) | 1.31mrad |
| Focusing Mode | Manual focusing |
| Measurement Range | -20°C~+150°C, 100°C~550°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Imaging Display | |
| Display | 3.5-inch touch screen, 640×480 resolution |
| Visible Light Camera | 5 megapixels |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Palettes | 10 |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Temperature Width Stretch | Automatic/Manual |
| Measurement and Analysis | |
| Analysis Functions on the Device | Custom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature display |
| Supporting Software | PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) |
| Image Storage | |
| Storage Medium | Standard 32GB MicroSD, up to 512GB |
| Text Notes | Support |
| Voice Annotation | Support |
| Image Naming | Auto/manual naming, naming by scanning QR code |
| System Functions | |
| Communication Protocol | Wi-Fi, USB |
| Video Transmission | Support UVC video transmission |
| Laser Pointer | Support |
| Others | |
| Battery | Rechargeable and detachable lithium-ion battery |
| Charging Mode | USB Type-C or desktop charger |
| Battery Life | About 6 hours (about 3 hours per battery) |
| Interface | USB Type-C, SD card |
| Tripod Socket | UNC 1/4-20 interface for tripod |
| Operating Temperature | -10°C~+50°C |
| Operating Humidity | 10%~95% (non-condensing) |
| Storage Temperature | -20°C~+60°C |
| Ingress Protection Rating | IP54 |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); Vibration: 2.5g (IEC 60068-2-6) |
| Weight and Dimensions | About 670g, 258.4×105.1×102.3mm |
| Authentication | CE/RoHS/CMA, etc. |
| Packing List | Thermal camera, 5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list, safety box |
Applications
Electrical Maintenance
Equipment Maintenance
Product R&D
Electric Routine Inspection
