Pulsar Merger LRF Xl50
$0.00
The Pulsar Merger LRF XL50 is the first HD thermal resolution binocular in Pulsar’s lineup, designed for users who demand detailed imagery, wide field of view, and precision distance measurement. Equipped with a 1024×768 12µm European-made thermal sensor, the XL50 delivers extraordinary performance for hunters, wildlife observers, and tactical users.
Description
The Pulsar Merger LRF XL50 is the first HD thermal resolution binocular in Pulsar’s lineup, designed for users who demand detailed imagery, wide field of view, and precision distance measurement. Equipped with a 1024×768 12µm European-made thermal sensor, the XL50 delivers extraordinary performance for hunters, wildlife observers, and tactical users.

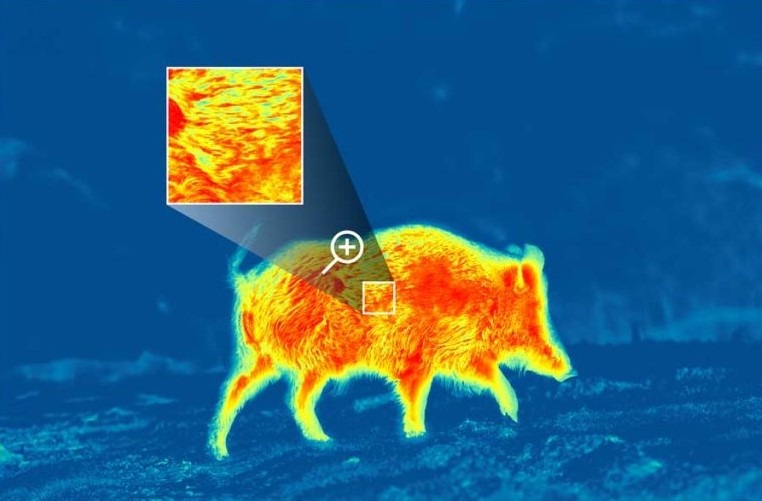

With a detection range of 2300m, integrated 1000m laser rangefinder, and magnification up to 20x, this binocular excels in scanning large areas while providing crisp detail even at high zoom. Its dual-battery system ensures uninterrupted operation, while the ergonomic two-eye viewing design reduces fatigue during long sessions. Rugged, waterproof, and packed with premium features, the Merger LRF XL50 sets a new standard in professional thermal imaging.
Key Features
-
HD thermal resolution (1024×768 @ 12µm sensor).
-
Detection range up to 2300m – reliable long-distance performance.
-
Laser Rangefinder with 1000m range and ±1m accuracy.
-
Magnification range 2.5x – 20x (8x digital zoom).
-
Wide field of view: 14° × 10.5°.
-
AMOLED HD display (1024×768) for sharp visuals.
-
Built-in video & photo recorder with 64GB storage.
-
Wi-Fi + Stream Vision 2 app for streaming, updates, and cloud storage.
-
Dual-battery system: 3200mAh removable + 4000mAh built-in.
-
Ergonomic two-eye viewing design – reduces eye strain.
-
Rugged magnesium alloy housing, IPX7 waterproof.
-
Operating temperature: -25°C to +50°C.
-

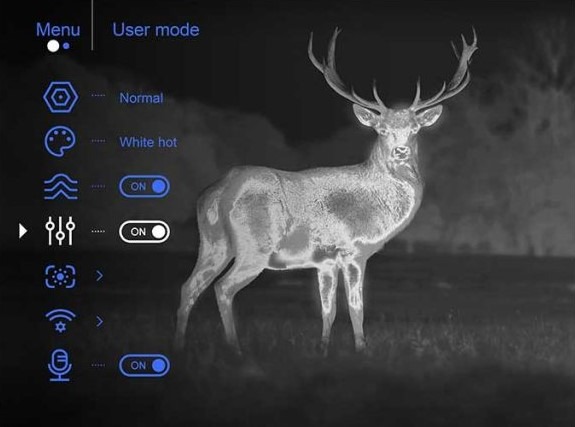

Picture-in-picture, proximity sensor, multiple color palettes.
Technical Specifications
| Pulsar Merger LRF XL50 Specifications | |
|---|---|
| Sensor Type | Uncooled thermal, 1024×768 (12 µm) |
| NETD | <40mK (system <20mK) |
| Frame Rate | 50 Hz |
| Objective Lens | F50 / 1.0 |
| Magnification | 2.5x – 20x |
| Field of View (degrees) | 14 × 10.5 |
| FOV @100m | 24.6 × 18.5 m |
| Detection Range | 2300 m |
| Interpupillary Distance | 62 – 74 mm |
| Eye Relief | 15 mm |
| Display | AMOLED HD, 1024×768 |
| Laser Rangefinder | 1000 m, ±1 m accuracy |
| Video/Photo Resolution | 1024×768 |
| Video/Photo Format | .mp4 / .jpg |
| Built-in Memory | 64 GB |
| Wireless | Wi-Fi (802.11 b/g/n/ac, 2.4/5 GHz) |
| App Support | Stream Vision 2 (Android / iOS) |
| Battery Type | Dual Li-ion (APS3 removable 3200 mAh + built-in 4000 mAh) |
| Battery Life | Approx. 7 hours |
| Charging | USB Type-C, 5V external power supply |
| Body Material | Magnesium alloy |
| Dimensions | 197 × 140 × 72 mm |
| Weight | 0.95 kg (with batteries) |
| Waterproof Rating | IPX7 |
| Operating Temperature | -25°C ~ +50°C |
| Mount | 1/4″ tripod socket |
Application Scenarios
-
wildlife observation & Game Observation – Detects heat signatures at long distances with precision ranging.
-
Wildlife Monitoring – Wide FOV for scanning large open areas.
-
Search & Rescue – Locates people in challenging terrain and weather.
-
Security & Surveillance – Professional-grade monitoring for perimeter and border control.
-
Military & Tactical Operations – High-definition thermal imagery for critical missions.
