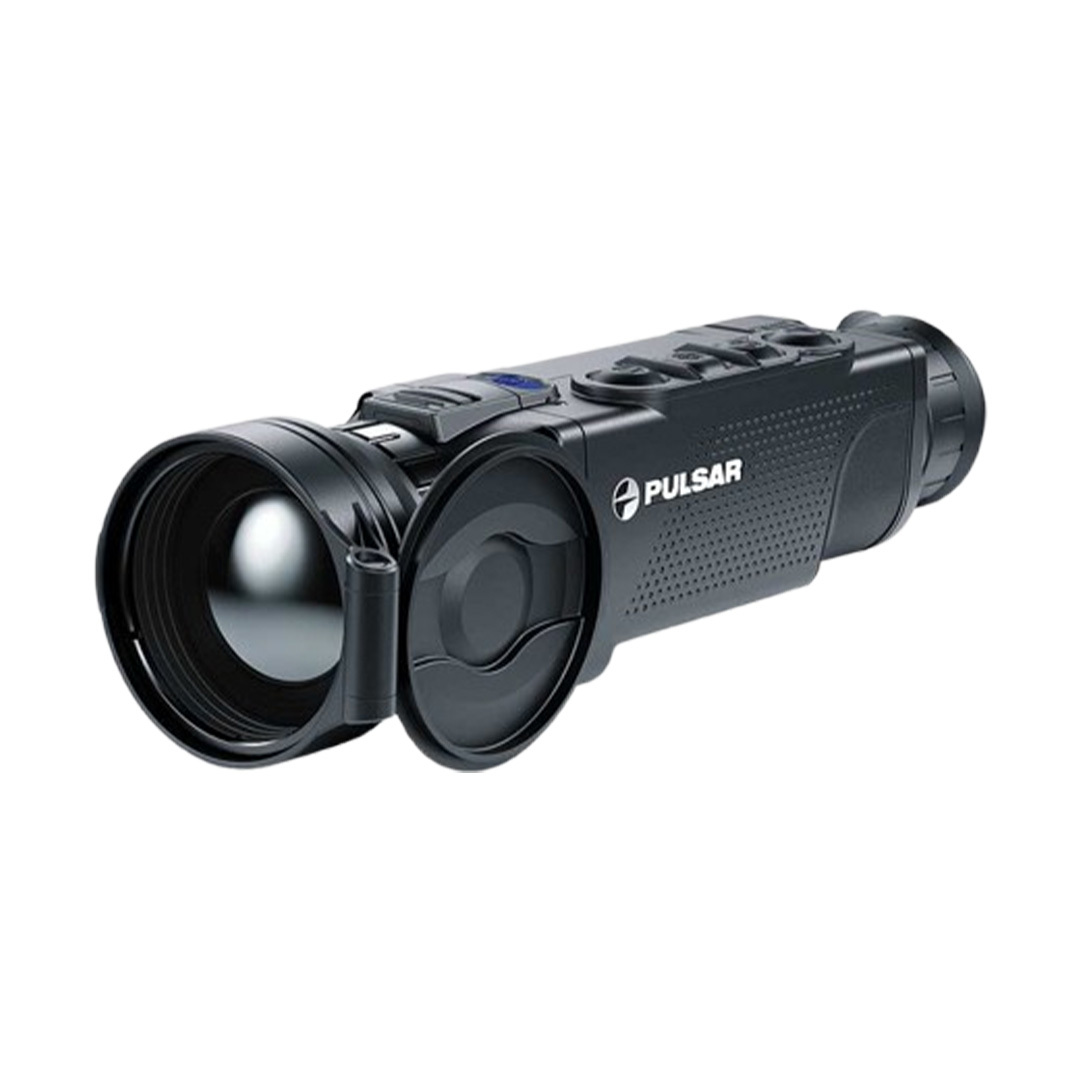

Pulsar Helion 2 XP50 PRO
Views: 2359
$0.00
High Performance Thermal Imaging Monoculars Helion
Description
Thermal Imaging Monoculars Helion
Experience unparalleled clarity and precision with the Pulsar Helion 2 XP50 Pro thermal monocular. Designed for superior performance in low-light conditions, this cutting-edge device offers advanced thermal imaging technology for wildlife observation, surveillance, and outdoor exploration.
With its ergonomic design and intuitive controls, the Helion 2 XP50 Pro provides unmatched comfort and ease of use. Whether you’re a hunter, nature enthusiast, or security professional, this thermal monocular delivers exceptional image quality and reliability. Explore the world with confidence and clarity with the Pulsar Helion 2 XP50 Pro thermal monocular.
Specifications
| Main | |
|
Sensor |
640×480 @ 17 µm (NETD <25 mK) |
|
Objective lens |
F50/1.0 |
|
Magnification, x |
2.5 – 20 (x8 zoom) |
|
Field of view (HxV), degrees / m@100m |
12.4×9.3 / 21.8×16.3 |
|
Detection range, m |
1800 |
|
Sensor |
|
|
Type |
uncooled |
|
Resolution, pixels |
640×480 |
|
Pixel pitch, µm |
17 |
| NETD, mK |
<25 mK |
|
Frame rate, Hz |
50 |
|
Display |
|
|
Type |
AMOLED HD |
|
Resolution, pixels |
1024×768 |
|
Range Performance |
|
|
Detection range, m |
1800 |
|
Laser Rangefinder |
Safety class for laser equipment according to IEC 60825-1:2014 |
|
Video Recorder |
|
|
Video / photo resolution, pixel |
1024×768 |
|
Video / photo format |
.mp4 / .jpg |
|
Built-in memory, GB |
16 |
|
Built-in memory capacity |
8+ hours of video or ˃100 000 pictures |
|
Wi-Fi |
|
|
Wireless Standard |
802,11 b/g |
|
Frequency, GHz |
2.4 |
|
Environmental Characteristics |
|
|
Degree of protection, IP code (IEC60529) |
IPХ7 (waterproof) |
|
Operating temperature range, °С |
-25 – +50 |
|
Connections and Compatibilities |
|
|
Mount, type |
1/4″ socket |
|
Remote control |
– |
|
Supported Application |
Stream Vision, Stream Vision 2 |
|
Power Supply |
|
|
Output voltage, V |
3.0 – 4.2 |
|
Battery type |
Li-Ion Battery Pack IPS7 |
|
Capacity, mAh |
6400 |
|
Operating time on battery pack (at t=22°C), h * |
8 |
|
External power supply, V |
Micro USB type B (5V) |
|
Weight & Size |
|
|
Body material |
Magnesium alloy |
|
Dimensions, mm |
242x75x60 |
|
Weight, kg |
0.5 |
Features
Picture-in-Picture Function
Picture-in-picture displays a magnified image at the top-center 10% of the overall field of view for precise zooming on an object of interest.
IPX7 Waterproof Rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
Wide Range of Operating Temperatures (-25 to +50°C)
Housing, power unit, optics and electronics of Helion 2 are designed with regard to applications in wide range of temperatures. Helion ensures reliable and effective performance in freezing cold up to -25°C.
Stadiametric rangefinder
The stadiametric rangefinder is a dynamic rangefinding scale intended to help determine approximate range to objects with known height 1.7 m (deer), 0.7m (wild boar) and 0.3 m (rabbit).
High image frequency
Due to the high image frequency (50 Hz) it is comfortable to use thermal camera dynamically (during rapid moving of observer or object of observation).
Updatable Software
For initial setup and additional updates, the iOS and Android compatible Stream Vision App ensures the most recent Helion software versions are available.
External Power Supply
Helion makes charging from external sources, such as power banks, fast and easy with a micro-USB jack. The convenience of power-bank charging even enhances the ability to power up the Helion during extremely cold weather while also protecting the source from rapid discharge.
User-friendly interface
The Helion is designed with ease-of-operation in mind. User feedback has resulted in the most friendly interface to date, complete with an easy-to-read, icon-driven, alpha-numeric status bar at the bottom of the display. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.
Display Off
When it is necessary to temporarily stop observation the user can apply Display Off function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation (when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again).
Datasheet
HELION 2 XP50 PRO
Delivery Scope
- Helion 2 Pro Thermal Monocular
- IPS7 rechargeable battery
- Battery Charger
- Power adapter
- USB cable
- Carrying case
- Hand strap
- Quick-Start guide
- Lens cloth
- Warranty card
