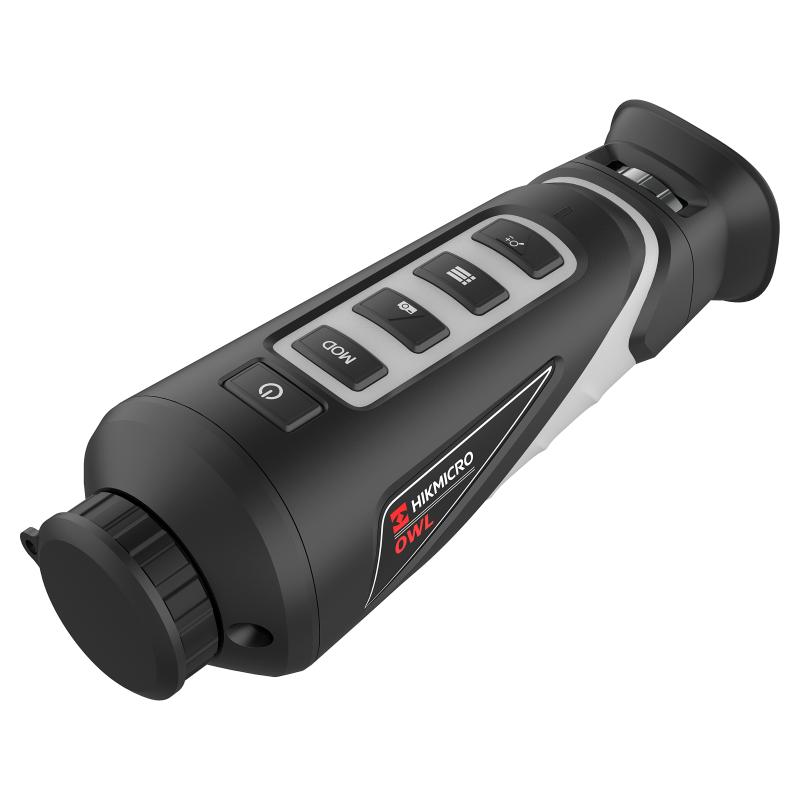

HIKMICRO OWL
Views: 871
$0.00
Broaden sight and enjoyment
- Additional information
- Description
- Specification
- Advantages
- Video
- Download
- ADDITIONAL INFORMATION
- Reviews (0)
Additional information
| Model | FH25, FH35, FQ25, FQ35, FQ50 |
|---|
Description
High Image Quality
An NETD <35 mk thermal sensor and large aperture F1.0 lens provide contrasted,
sharp and clear image. High resolution up to 640 x 512 can provide wide field of view.
sharp and clear image. High resolution up to 640 x 512 can provide wide field of view.
Long Detection Range
With high-sensitivity sensor and long-focus objective lens, OWL series can detect 1.8 m target at a distance up to 1300m.
Wide Operating Temperature Range
With advanced OLED and structure design, OWL series can work in a low temperature of -30 degrees.
Video and Snapshot
Onboard 16 GB memory offers storage space for the snapshots and video clips. Recorded files can be downloaded when connected to PC via USB Port.
Hotspot for Mobile App
Integrated hotspot module makes Sight app as a second display. Users can use digital zoom, video recording and other features on their phones.
Specification
| Product Module | OH35 |
|---|---|
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Frame Rate | 50Hz |
| Pixel Interval | 17μm |
| Response Waveband | 8μm to 14μm |
| NETD | Less than 35 mK (@25°C), F#=1.0 |
| Detection Range | 1300 m |
| Field of View | 10.66° × 8° (H × V) |
| Aperture | F1.0 |
| Magnification | 2.3 – 18.4 |
| Focal Length | 35mm |
| Resolution | 384×288 |
| Image Display | |
| Image Display | 0.39 inch, OLED, 1024 × 768 |
| Palettes | Black hot, white hot, red hot, fusion |
| Digital Zoom | 1x, 2x, 4x, 8x |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Monitor | 1.5 W |
| General | |
| Protection Level | IP67 |
| Drop Test Height | 2 m (6.56 feet) |
| Weight | 500 g (1.10 lb) |
| Dimension | 201.6 mm × 73.7 mm × 66 mm (7.94″ × 2.90″ × 2.60″) |
| Mounting | UNC 1/4′ – 20 |
| Hardware Interface | Type-C USB |
| Work Temperature/Humidity | From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less |
| Power | 5 VDC/2 A |
| Power Consumption | Yes |
| Smart Function | Yes |
| Hot Track | Yes |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Hotspot | No |
| Standby Mode | Yes |
| Storage | Built-in memory module (16 GB) |
| Power Supply | |
| Battery Type | Rechargeable Lithium Battery |
| Battery Operating Time | 7 hours continuous running with hotspot function off (@25°C) 5.5 hours continuous running with hotspot function on (@25°C) |
| Battery Capacity Display | Yes |
Advantages
- Standby Mode
- Smart Range Measurement
- 4 Color Palettes
- Large Digital Zoom – Up to 8x
Video
Download
ADDITIONAL INFORMATION
| Model | OH35 |
|---|
Reviews
There are no reviews yet.
