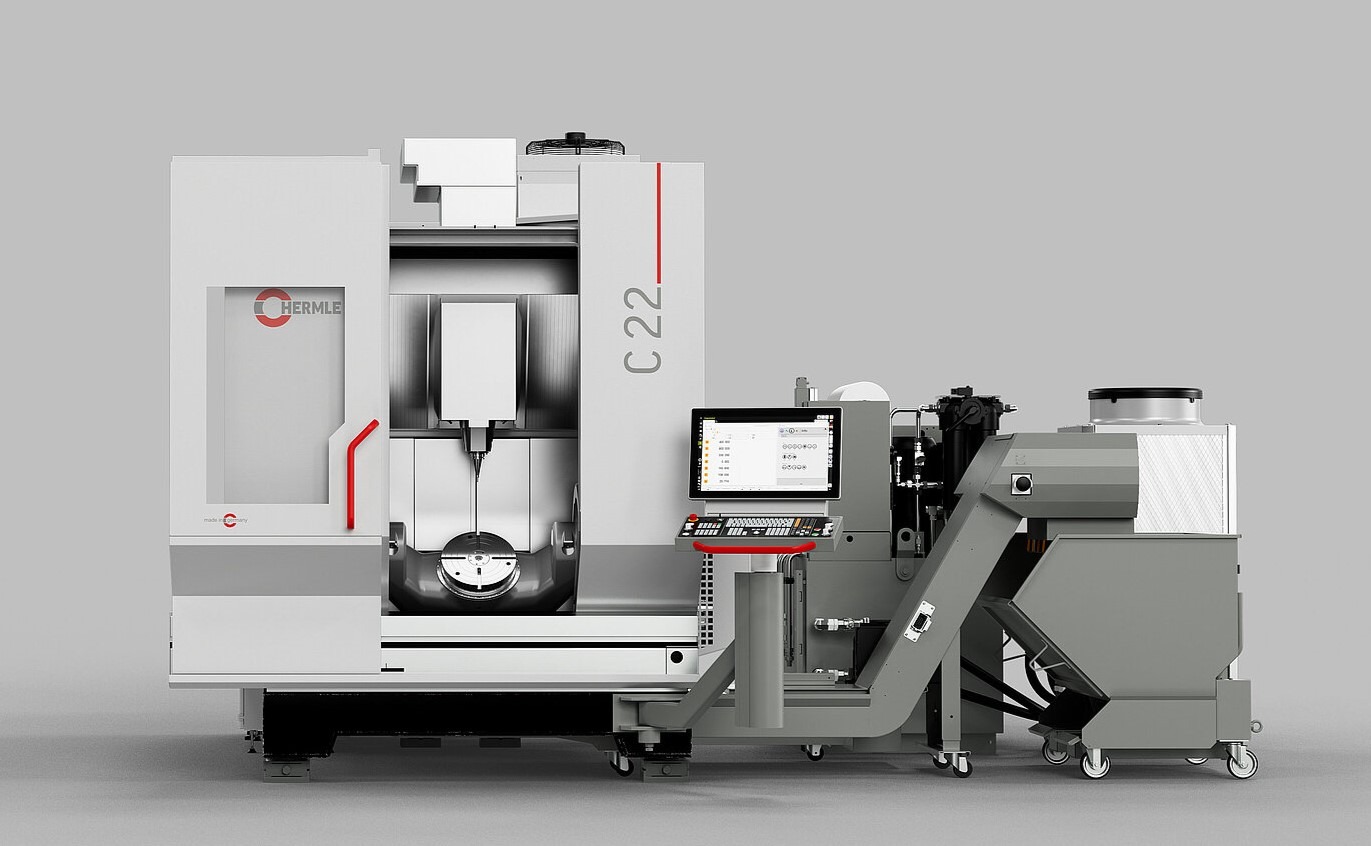

Hermle C 22 GEN2
$0.00
The Hermle C 22 GEN2 belongs to the High-Performance Line and stands as the “bigger brother” of the C 12. It offers extended traverse paths, larger component dimensions, and the same compact collision circle, delivering outstanding flexibility and machining power.
Description
The Hermle C 22 GEN2 belongs to the High-Performance Line and stands as the “bigger brother” of the C 12. It offers extended traverse paths, larger component dimensions, and the same compact collision circle, delivering outstanding flexibility and machining power.
Engineered for high precision, small tolerances, and superior dynamics, the C 22 GEN2 is an ideal 5-axis machining centre for industries like medical technology, aerospace, model making, tool production, and precision engineering.
Its short process cycles, integrated automation options, ergonomic design, and energy-efficient construction make it a future-proof investment for manufacturers seeking both productivity and sustainability
Key Features
-
Extended Traverse Path: 450 × 600 × 330 mm.
-
Collision Circle: Ø 610 mm for compact setup with larger components.
-
Spindle Options: 15,000 to 42,000 rpm high-speed spindles.
-
Table Capacity: Swiveling rotary table Ø 320 mm, max. load 300 kg.
-
High Dynamics: 30 m/min rapid traverse (option: 50 m/min).
-

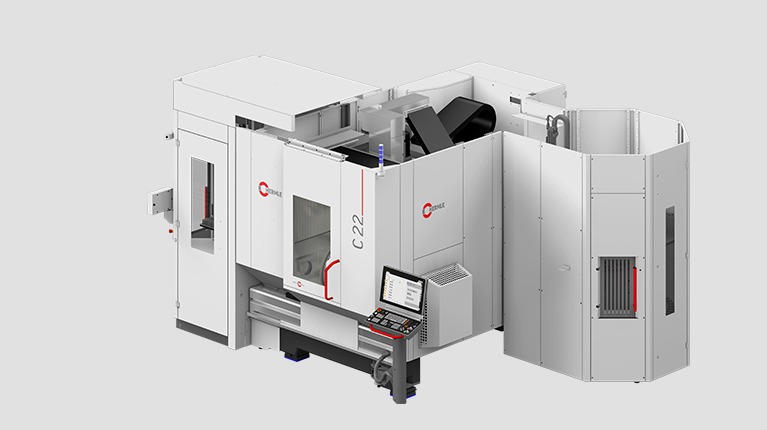

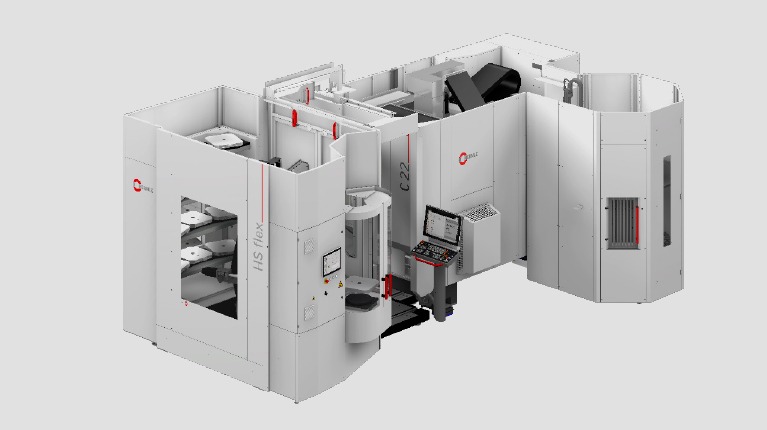

Automation Ready: Compatible with pallet changers & robot systems (HS flex, RS 05-2, RS1, RS 2/combi).
-

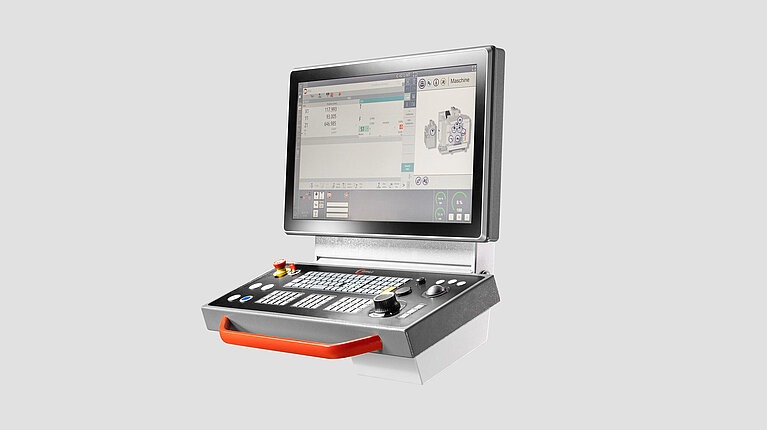

Control Systems: Heidenhain TNC7 or Siemens SINUMERIK ONE.
-

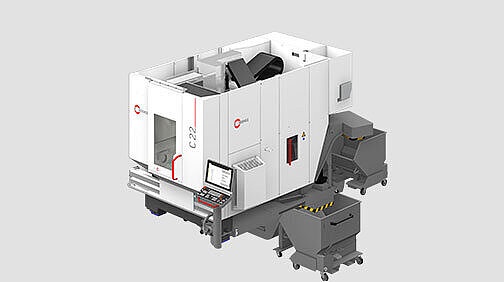

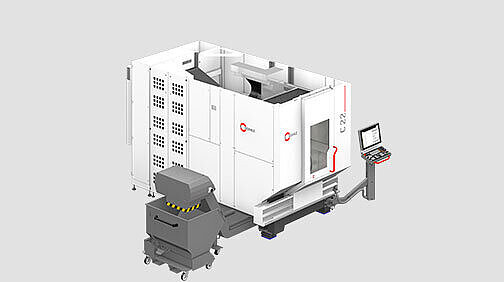

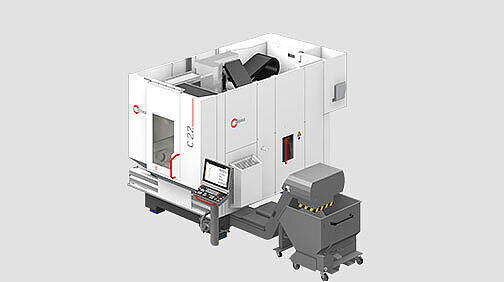

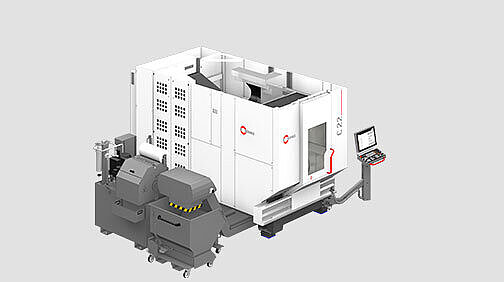

Integrated Cabinets: Cooling unit, switch cabinet & chip conveyor designed within machine enclosure.
-
Energy Efficient: Lightweight construction, mineral casting, energy recuperation & long service life.
-
Transportable: Can be moved without dismantling & set up without foundation.
Technical Specifications
| Hermle C 22 GEN2 Technical Data | |
|---|---|
| Traverse Path (X / Y / Z) | 450 × 600 × 330 mm |
| Body Dimensions | Ø 450 / H 370 mm |
| Collision Circle | Ø 610 mm |
| Vertical Table Clearance | Max. 470 mm |
| Spindle Speed Options | 15,000 / 16,000 / 20,000 / 25,000 / 30,000 / 42,000 rpm |
| Rapid Traverse (X-Y-Z) | 30 m/min (option 50 m/min) |
| Swiveling Rotary Table | Ø 320 mm |
| Max. Table Loading | 300 kg |
| Control Options | Heidenhain TNC7 / Siemens SINUMERIK ONE |

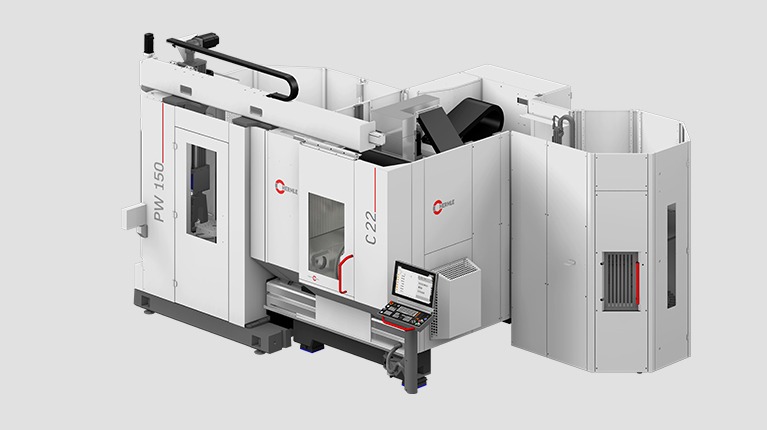

| Automation | HS flex, PW 150 pallet changer, RS 05-2, RS1, RS 2/combi |
| Special Features | Dynamic Efficiency, Dynamic Precision, KinematicOpt software |
| Setup | Transport without dismantling, no foundation required |
| Energy Efficiency | Lightweight build, mineral casting, energy recuperation drives |
Application Scenarios
-
Medical Technology: machining titanium bone plates with precision.
-
Model Making: high-detailed parts like hardened steel “soft ice cream” designs.
-
Sports & Leisure Industry: propellers, complex parts from stainless steel and alloys.
-
Aerospace & Automotive: high-speed, high-accuracy prototyping & production.
-
Tool & Die Making: producing complex cutting tools with efficiency.
-
Automation Options: Up to 3 peripheral systems (robot systems + pallet changers).
-
Smart Control Tools: HACS (Automation Control System) & HIMS (Information Management System).
-

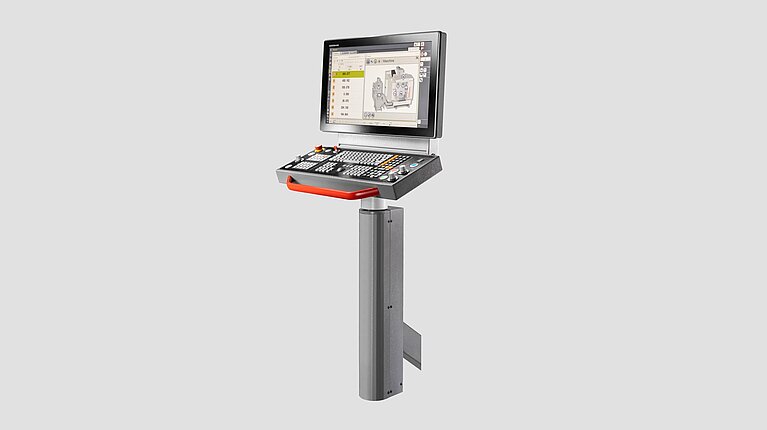

Operator-Friendly: Adjustable control panel, ergonomic setup, and minimal downtime.
