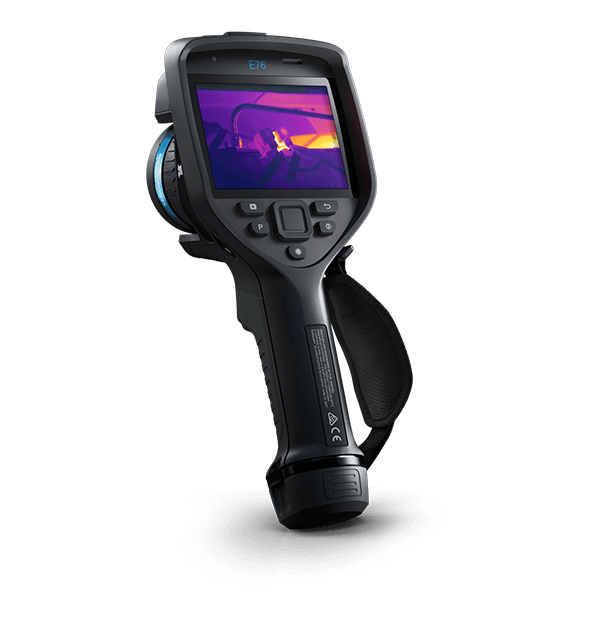

FLIR E76

Views: 82

Description

The FLIR E76 offers complete coverage of near and distant targets through a range of lens options. A step up from the FLIR E54, the E76 includes laser-assisted autofocus and 3 area measurement boxes. The 320× 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E76 images directly from the camera to the cloud for easy, secure storage and sharing.

Key Feature

One lens, two fields of view
Pair your Exx-Series camera with a FLIR FlexView dual field-of-view lens to conveniently switch from wide-area to telephoto scanning with one press of a button.

Improved Contrast for Faster Diagnosis
Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.

Streamlined Reporting
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E76 streamline your workday. (*Optional accessory software)

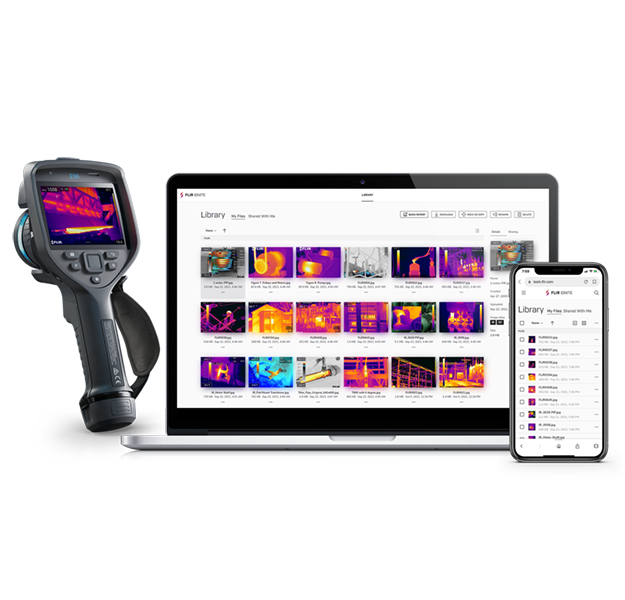

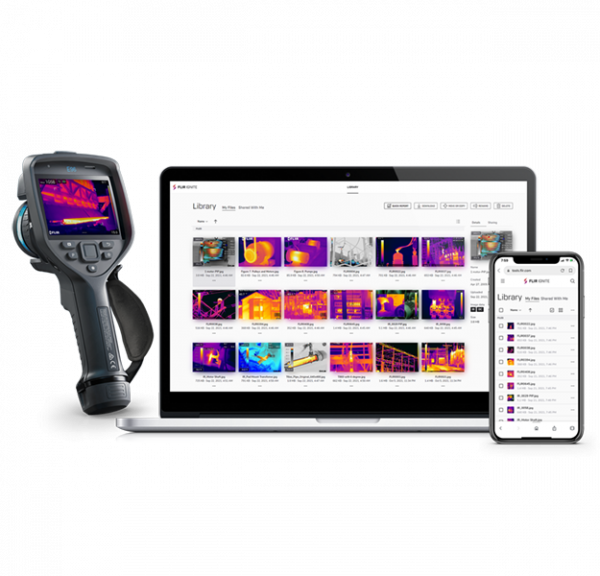

FLIR Ignite™ for Exx-Series
Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR Exx-Series camera. Keep your data safe in one place and easily accessible from any device.





Specifications

IR Resolution
320 × 240 pixels
Thermal Sensitivity/NETD
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of the reading
Digital Camera
5 MP, with built-in LED photo/video lamp
Display
4″, 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media
Removable SD card
Imaging & Optical
Color Palettes
Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch
Uncooled microbolometer, 17 µm
Digital Camera
5 MP, with built-in LED photo/video lamp
Digital Zoom
1-4x continuous
Field of View
24° × 18°, 14° × 10°
f-number
24°: 1.5
14°: 1.5
Focal Length
24°: 17 mm (0.67 in)
14°: 29 mm (1.41 in)
Focus
Continuous LDM, One-shot LDM, One-shot contrast, Manual
Image Frequency
30 Hz
IR Resolution
320 × 240 pixels
Lens Identification
Automatic
Minimum Focus Distance
24°: 0.18 m (0.59 ft), 14°: 1.0 m (3.28 ft)
Minimum Focus Distance with MSX
24°: 0.5 m (1.64 ft)
14°: 1.0 m (3.28 ft)
Non-radiometric IR video streaming
H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture
Resizable and movable
Radiometric IR video recording
Real-time radiometric recording (.csq)
Radiometric IR video streaming
Yes, over UVC
Spatial resolution (IFOV)
24°: 1.33 mrad/pixel
14°: 0.75 mrad/pixel
Spectral Range
7.5-14 µm
Thermal Sensitivity/NETD
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
UltraMax
Yes
Viewfinder
No
Measurement & Analysis
Accuracy
±2°C (±3.6°F) or ±2% of the reading
Measurement Presets
No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range
-20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F). 300 to 1000°C (572 to 1832°F) range available with purchase of T199559 High Temperature Option
Spot Meter
3 ea. in live mode
User Interface
Display
4″, 640 × 480 pixel touchscreen LCD with auto-rotation
Text
Predefined list or touchscreen keyboard
Voice
60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Power
Battery operating time
>2.5 hours at 25°C (68°F) and typical use
Battery Type
Rechargeable Li-ion battery
Environmental & Certifications
Operating Temperature Range
-15 to 50°C (5 to 122°F)
Safety
EN/UL/CSA/PSE 60950-1
Storage Temperature Range
-40 to 70°C (-40 to 158°F)
General
FLIR Inspection Route
Enabled in camera
Laser Pointer
Yes
Packaging
Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter

Accessories

Cases and Pouches
Hard Transport Case (T199346ACC)
Lens Case (T300437ACC)

Batteries and Power
Battery (T199330ACC)
Battery Charger (T199425ACC)
Power Supply for Battery Charger (T911633ACC)
Power Supply, 15 W/3 A (T911630ACC)
USB 2.0 A to USB Type-C with Power Supply (T911846ACC)
USB Type-C to HDMI and PD adapter (T911845ACC)

Mounts and Housings
Mounting Kit (T300369)

Cables Adapters
HDMI 2-Port Video Splitter (T911998)
USB Type-C to USB Type-C Cable (T911705ACC)

Options
No Radio (T300030)
Optional Dual Streaming (T850111)

Tripod Adapters
Tripod (T911997)

Software
FLIR Ignite
FLIR Research Studio
FLIR Thermal Studio Suite

Services
Extended Warranty for E76(sc), E86-EST, E86(sc), and E96(sc)

Other
Bluetooth Headset (T197771ACC)
Calibration Target (T130337ACC)
Port Adapter
Remote operation button (T131171ACC)

Lenses
14° Lens with Case (T199588)
24° Lens with Case (T199589)
42° Lens with Case (T199590)
FlexView® Dual FOV IR Lens (24°/14°) with Lens Case
FlexView® Dual FOV IR Lens (42°/24°) with Lens Case
IR lens, f=5 mm (80°), T300805
