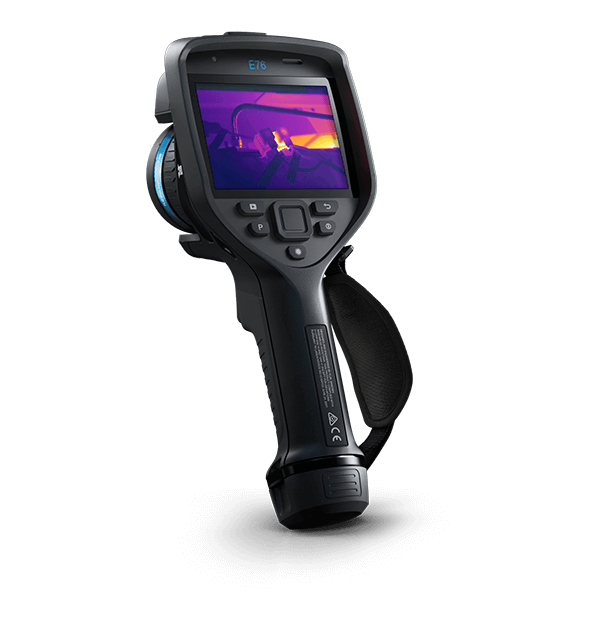

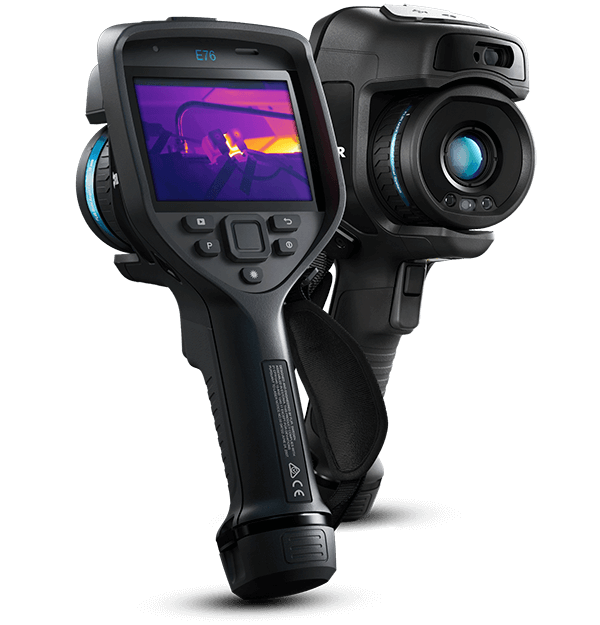

FLIR E76 86 E96
Views: 2146
$0.00
Streamline Daily Surveys with Route Creation
Exx-Series cameras come equipped with FLIR Inspection Route. This camera mode guides users along a defined route across multiple locations and organizes images and data connected with each inspected asset. Users create a route in FLIR Thermal Studio Pro* with the Route Creator* plugin, then download it to the camera to streamline inspections and speed up post-processing and reporting. (*optional accessory software)
Description
Exx-Series cameras come equipped with FLIR Inspection Route. This camera mode guides users along a defined route across multiple locations and organizes images and data connected with each inspected asset. Users create a route in FLIR Thermal Studio Pro* with the Route Creator* plugin, then download it to the camera to streamline inspections and speed up post-processing and reporting. (*optional accessory software)
Features
-
-

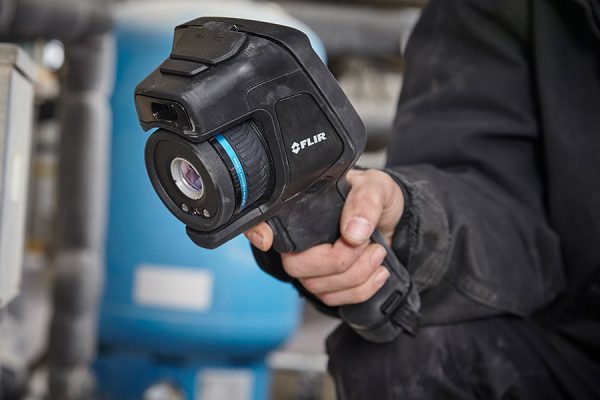

INTERCHANGEABLE, AUTO-CALIBRATING LENSES

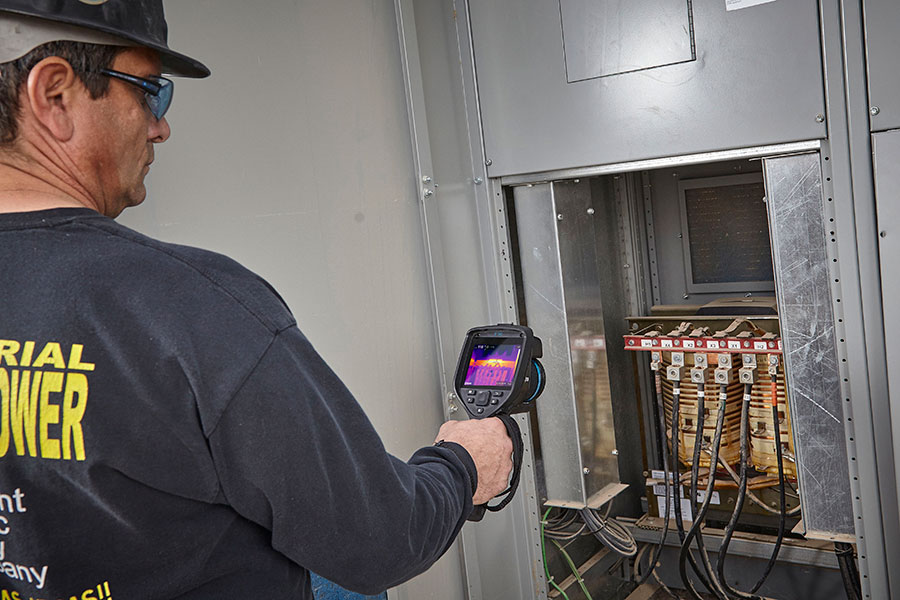

Telephoto, standard, and wide angle AutoCal™ lenses help users survey large targets quickly, check machines for signs of failure, or inspect electrical systems safely.
-
IMPROVED CONTRAST FOR FASTER DIAGNOSIS
Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.
-
STREAMLINED REPORTING
Onboard integration with FLIR routing software*, a built-in mic for voice annotation, and report generation features all help the E76 streamline your workday
-
Specification
OVERVIEW
- Display
- 4″, 640 × 480 pixel touchscreen LCD with auto-rotation
- FLIR Inspection Route
- Enabled in camera
- Laser Pointer
- Yes
- Programmable Buttons
- 1
- Text
- Predefined list or touchscreen keyboard
- Time Lapse
- No
- Voice
- 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
- Weight & Dimensions (without lens)
- 1 kg (2.2 lbs), 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in)
SYSTEM OVERVIEW
- Color Palettes
- Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Digital Zoom
- 1-4× continuous
- Video Out
- DisplayPort over USB Type-C
COMPLIANCE & CERTIFICATIONS
- Safety
- EN/UL/CSA/PSE 60950-1
CONNECTIONS & COMMUNICATIONS
- Communication Interfaces
- USB 2.0, Bluetooth®, Wi-Fi, DisplayPort
- METERLiNK
- Yes
ENVIRONMENTAL
- Shock & Vibration & Encapsulation
- 25g (IEC 60068-2-27), 2g (IEC 60068-2-6), IP54 (IEC 60529)
ENVIRONMENTAL & APPROVALS
- Operating Temperature Range
- -15 to 50°C (5 to 122°F)
- Storage Temperature Range
- -40 to 70°C (-40 to 158°F)
IMAGING & OPTICAL
- Detector Type and Pitch
- Uncooled microbolometer, 17 µm
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- f-number
- 1.3
- Global Positioning System [GPS]
- Automatic image tagging
- Image Sketch
- From touchscreen, on infrared image only
- Non-Radiometric IR or Visual Video
- H.264 to memory card
- Non-radiometric IR video streaming
- H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture
- Resizable and movable
- Radiometric IR video recording
- Real-time radiometric recording (.csq)
- Radiometric IR video streaming
- Yes, over UVC
- UltraMax
- Yes
- Viewfinder
- No
MEASUREMENT & ANALYSIS
- Area measurement information
- No
- Laser Distance Meter
- Yes; dedicated button
- Measurement Presets
- No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
MEASUREMENT & ANALYSIS
- Object Temperature Range
- -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); Optional 300 to 1000°C (572 to 1832°F)
PERFORMANCE
- Accuracy
- ±2°C (±3.6°F) or ±2% of the reading
POWER
- Battery operating time
- >2.5 hours at 25°C (68°F) and typical use
- Battery type
- Rechargeable Li-ion battery
RADIOMETRY
- Spot Meter
- 3 ea. in live mode
SHIPPING INFORMATION
- Packaging
- Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
STORAGE MEDIA
- Image File Format
- Standard JPEG with measurement data included. Infrared-only mode
- Image Storage Mode
- Infrared, Visual, MSX®, Picture-in-Picture, Gallery
- Storage Media
- Removable SD card
THERMAL CAMERA
- Lens Identification
- Automatic
THERMAL IMAGING
- Focus
- Continuous LDM, One-shot LDM, One-shot contrast, Manual
VISIBLE CAMERA
- Image Frequency
- 30 Hz
- IR Resolution
- 320 × 240 pixels
- Minimum Focus Distance
- 0.15 m
- Spectral Range
- 7.5-14 µm
- Thermal Sensitivity/NETD
- <40 mK at 30°C (86°F)
Downloads
Delivery Scope
Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
