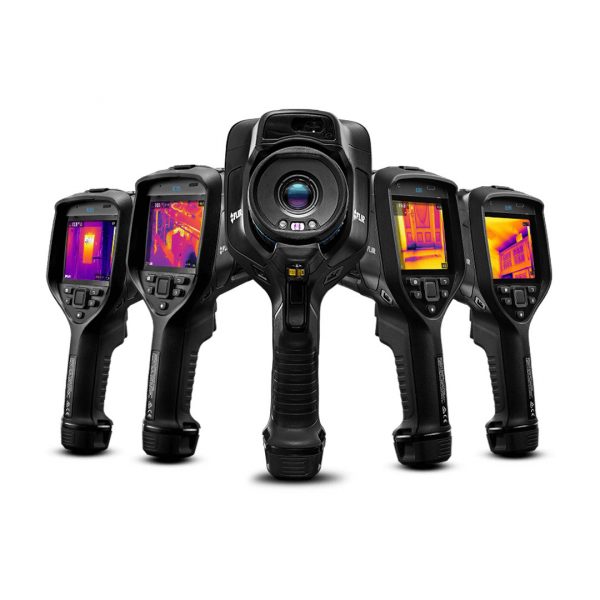

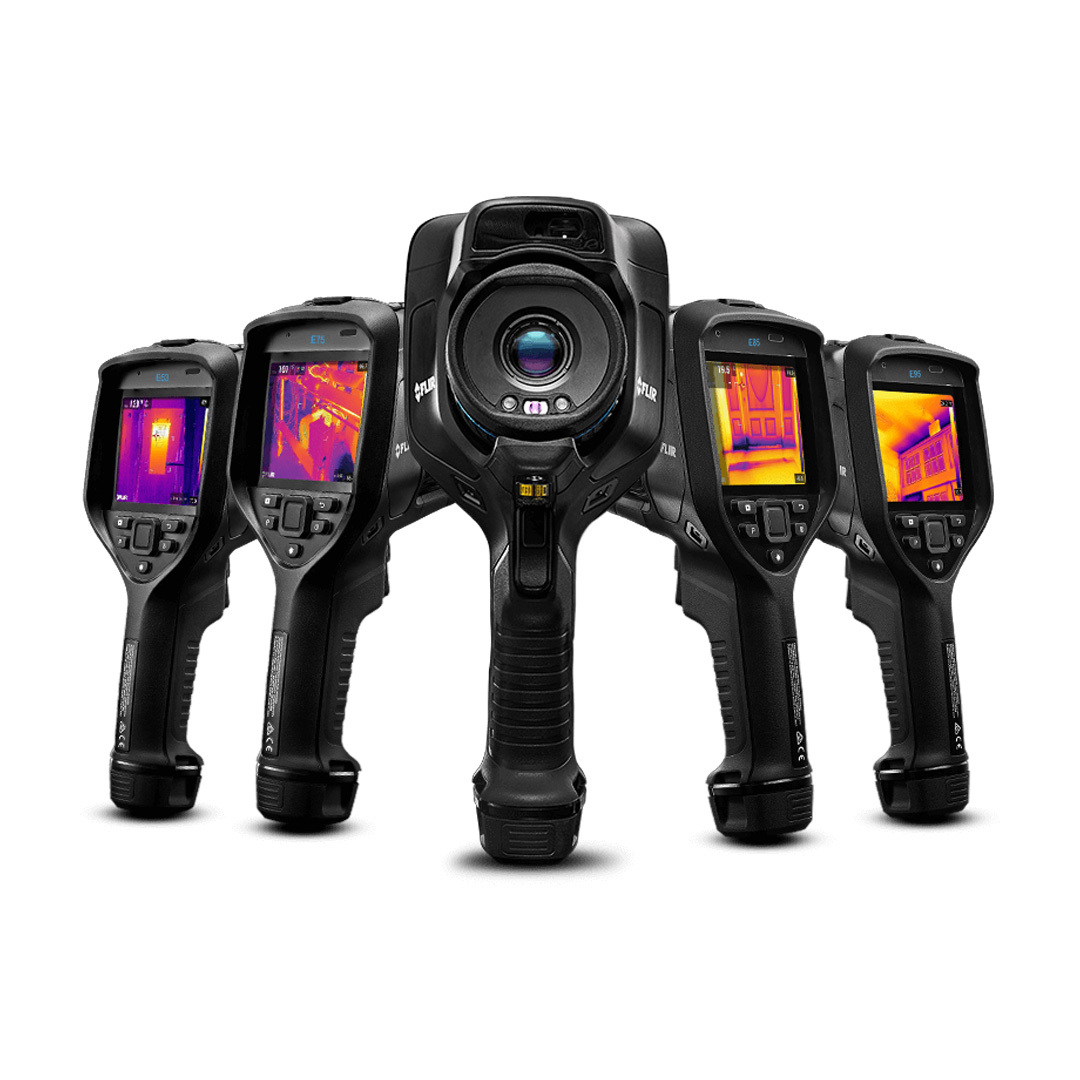

FLIR E75 E85 E95
Views: 4032
$0.00
FLIR designed the Exx-Series to offer the best performance, resolution, and sensitivity of any pistol-grip handheld thermal camera. The E75, E85, E95, and now the new E53 thermal imaging cameras are packed with the features you need to find hot spots, detect the early signs of building deficiencies, troubleshoot electrical and mechanical systems, and prevent problems before they cause serious damage.
Description
Micro Core™ is a high-performance thermal camera in a market-leading size footprint. Designed for small form factor, low power and lightweight applications, the Micro Core delivers high-end thermal capabilities, accuracy and performance that is unmatched in its price range.
Features
-
LASER DISTANCE MEASUREMENT
The laser distance meter aids in quick, precise autofocusing, so you can ensure accurate temperature measurements, every time.
-
STREAMLINED REPORTING
Customizable work folders, a built-in mic for voice annotation, and report generation features all help the E75 streamline your workday.
-
SLEEK BUT RUGGED
With features such as scratch-resistant glass and a drop-tested chassis, the E75’s design is about more than good looks.
Specification
OVERVIEW
- Accuracy
- ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- Alarm
- Moisture alarm, insulation alarm, measurement alarms
- Color alarm (isotherm)
- Above/below/interval/condensation/insulation
- Difference Temperature
- Yes
- Display Technology
- IPS
- Field of view (FOV)
- 24° x 18° (17 mm lens)
- Focal Length
- 17 mm (0.67 in.), 24°
- Housing material
- PCABS with TPE, magnesium
- IR Resolution
- 320 x 240
- Laser
- Class 2, 0.05–40 m (1.6–131 ft.) ±1% of measured distance
- Object Temperature Range
- •–20 to +120°C (–4 to 248°F) •0–650°C (32–1200°F) •Optional 300–1000°C (572–1830°F)
- Packaging Size
- 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.)
- Programmable Buttons
- 1
- Resolution
- 640 × 480 pixels (VGA)
- Screening
- 0.5°C (0.9°F) accuracy @ 37°C (98.6°F) with reference
- Thermal Sensitivity/NETD
- <40 mK, 24° @ +30°C (+86°F)
- Warranty
- http://www.flir.com/warranty/
- Compass GPS
- Yes; automatic GPS image tagging
- Text
- Text from predefined list or soft keyboard on touchscreen
- Time Lapse [Infrared]
- No
- Voice
- 60 seconds built-in microphone and speaker (and via Bluetooth) on still images and video
- Weight & Dimensions (without lens)
- 1 kg (2.2 lbs), 27.8 x 11.6 x 11.3 cm (11.0 x 4.6 x 4.4 in)
Delivery Scope
Infrared camera with lens, battery (2 ea), battery charger with power supply, front lens and light protection, straps (hand and wrist), lanyards, lens caps (front and rear), lens cleaning cloth, 15 W3 A power supply, printed documentation, 8 GB SD card, Torx screwdriver, cables (USB 2.0 A to USB Type-C,USB Type-C to HDMI, USB Type-C to USB Type-C)
