FC4 Series Dual-Spectrum Bullet Camera
Views: 564
$0.00
- The FC4T dual-spectrum bullet camera is equipped with a high-resolution thermal detector with a 12 μm pixel pitch, multiple lens options, and a 5 MP visible light sensor.
- It supports intrusion and tripwire detection and has built-in temperature analysis methods and fire detection function.
- It can be used for perimeter protection and fire prevention in residential areas and commercial facilities.
Description
1. 12 Mm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
2. Dual-Spectrum Imaging
All-weather, 24/7 security monitoring with dual thermal & visible light imaging.
3. Accurate Temperature Measurement
Measurement range from -20°C to 550°C, accuracy ±2°C or 2%.
4. Intelligent video analytics
Supports trap/intrusion detection as well as intelligent fire point detection.
5. Smart Alarm
Supports alarm linkage.
6. Platform Integration
Support ONVIF, provide SDK and DEMO for development; provide NVR and VMS software for application.
Specifications
| Category | Specifications |
|---|---|
| Thermal Module | |
| Detector Type | VOx detectors, uncooled FPA |
| Spectral Range | 8 ~ 14 μm |
| NETD | ≤40 mK (@25 °C, F#1.0, 25 Hz) |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Focal Length | 9.1mm/13mm/19mm/25mm/35mm |
| Sensor | 5MP 1/2.8″ progressive scan CMOS |
| Resolution | 2560 × 1920 |
| Focal Length | 4mm/6mm/6mm/12mm/12mm |
| IR Distance | 40 meters |
| Image Function | |
| Bispectral Image Fusion | Support |
| Temperature Measurement | |
| Temperature Range | -20℃~+550℃ |
| Temperature Accuracy | ±2℃ or ±2% |
| Temperature Measurement | Supports 4 temperature measurement rules (full frame, point, line, area) |
| Smart Function | |
| Fire Detection | Support |
| ACV | Line crossing and intrusion detection |
| Two-Way Audio | Support |
| Linking Action | Video/Snapshot/Email/Alarm output/Sound and light alarm |
| System Interface | |
| Power | DC 12V ±25% / POE (802.3at) |
| Network | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio | 1 input / 1 output |
| Alarm | 2 inputs / 1 output |
| Storage | Micro SD memory (maximum 256G) |
| Reboot | Support |
| Serial Port | 1 RS485 channel, compatible with Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃; <95%RH |
| Protection | IP66 |
| Energy Consumption | ≤8 W |
| Dimension (mm) | 319.5 × 121.5 × 103.6 |
| Weight | ≤1.8 kg |
Applications

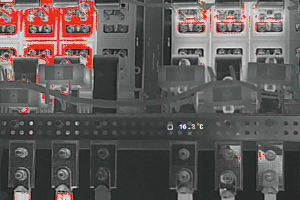

Charging Pile

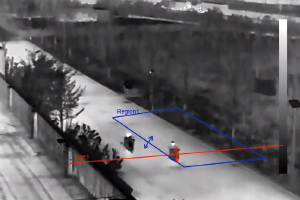

Perimeter Protection

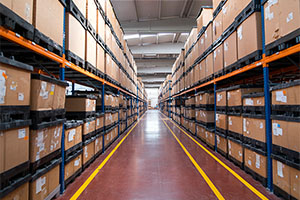

Warehouse
Deposit
