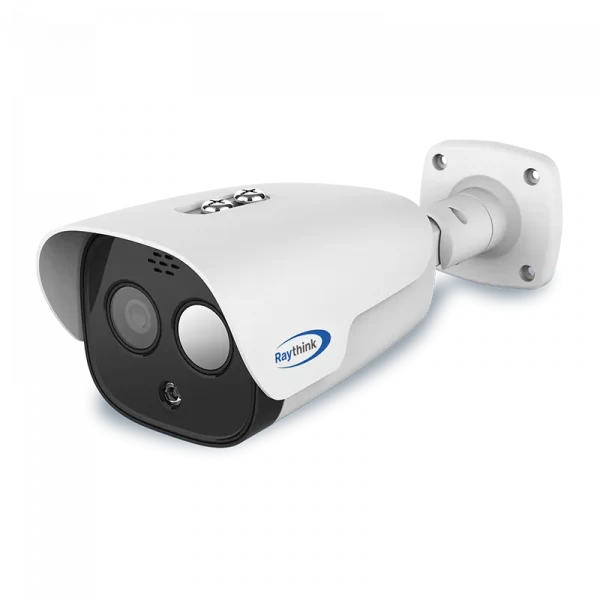

FC2 Series Dual-Spectrum Bullet Camera
Views: 687
$0.00
- The FC225T Dual-Spectrum Bullet Camera is a new type of dual-spectral IP camera that integrates infrared thermal imaging with HD visible light capabilities.
- Equipped with a state-of-the-art passive infrared thermal imaging sensor and enhanced by industrial-grade temperature measurement and analysis tools, smoke and fire detection algorithms, and dual-spectral behavior analysis algorithms, it also features an array of alarm linkage functions to truly achieve 24/7 security monitoring and fire warning.
- It can be widely used for indoor and outdoor scenario monitoring in various intelligent security and fire protection fields such as perimeter protection, charging piles, warehouse equipment rooms, gas stations, and electrical power monitoring.
Description
1. 12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
2. Dual-Spectrum Imaging
All-weather, 24/7 security monitoring with dual thermal & visible light imaging.
3. Accurate Temperature Measurement
Measurement range from -20°C to 550°C, accuracy ±2°C or 2%.
4. AI Target Recognition
Smart video content analysis, human/vehicle recognition on thermal channel for crossline/intrusion detection.
5. Intelligent Alarm
Supports alarm linkage for multiple events, as well as audible and visual alarms.
6. Platform Integration
Support ONVIF, provide SDK & demo for development; provide NVR and VMS software for application.
Specifications
| Category | Specifications |
|---|---|
| Thermal Module | |
| Detector Type | VOx, uncooled FPA detectors |
| Spectral Range | 8~14μm |
| NETD | ≤40mK (@25°C, F#1.0, 25Hz) |
| Resolution | 256×192 |
| Pixel Pitch | 12μm |
| Focal Length | 3.2mm / 7mm |
| Optical Module | |
| Sensor | 5MP 1/2.7″ Progressive Scan CMOS |
| Resolution | 2560×1920 |
| Focal Length | 4mm / 8mm |
| IR Distance | 30m |
| Image Function | |
| Bi-Spectrum Image Fusion | Support |
| Temperature Measurement | |
| Temperature Range | -20℃~+550℃ |
| Temperature Accuracy | ±2℃ or ±2% |
| Temperature Measurement | Support 4 temperature measurement rules (full-frame, point, line, area) |
| Smart Function | |
| Fire Detection | Support |
| VCA | Support Line Crossing & Intrusion detection with AI human/Vehicle recognition |
| 2-Way Audio | Support |
| Linkage Action | Video/Snapshot/Email/Alarm output/Sound and light alarm |
| System Interface | |
| Power | DC 12V±25% / POE (802.3af) |
| Network | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio | 1 in / 1 out |
| Alarm | 2 in / 1 out |
| Storage | Micro SD memory (maximum 256G) |
| Reset | Support |
| Serial Port | 1 channel RS485, can support Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃; <95%RH |
| Protection | IP66 |
| Power Consumption | ≤6W |
| Dimension (mm) | 265×99×87 |
| Weight | ≤0.95kg |
Applications
Charging Pile
Electric Temperature Measurement
Perimeter Protection
Warehouse
