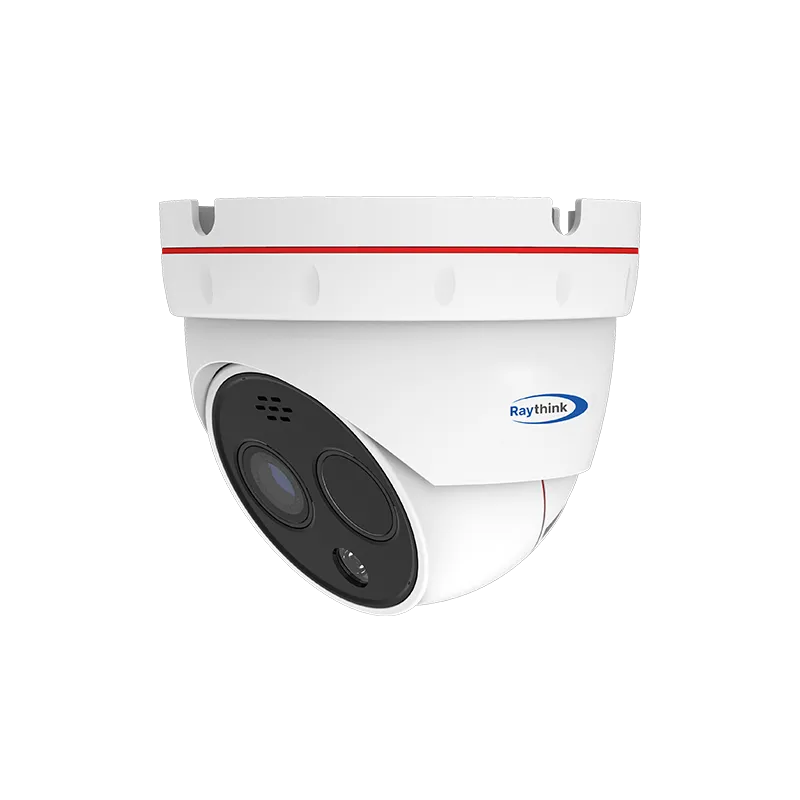

FC1 Series Dual-Spectrum Turret Camera
Views: 607
$0.00
- The FC125T Dual-Spectrum Turret Camera is a new type of dual-spectral IP camera that integrates infrared thermal imaging with HD visible light capabilities.
- Equipped with a state-of-the-art passive infrared thermal imaging detector and enhanced by industrial-grade temperature measurement and analysis tools, smoke and fire detection algorithms, and dual-spectral behavior analysis algorithms, it also features an array of alarm linkage functions to truly achieve 24/7 security monitoring and fire warning.
- It can be widely used in scenarios such as gas stations, charging piles, substations, buildings and warehouses, and small-scale establishments.
Description
1. 12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.

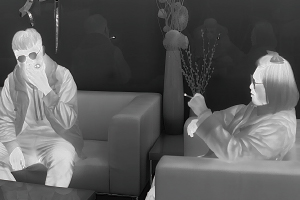

2. Dual-Spectrum Imaging
All-weather, 24/7 security monitoring with dual thermal & visible light imaging.
3. Accurate Temperature Measurement
Measurement range from -20°C to 550°C, accuracy ±2°C or 2%.
4. AI Target Recognition
Smart video content analysis, human/vehicle recognition on thermal channel for crossline/intrusion detection.
5. Intelligent Alarm
Supports alarm linkage for multiple events, as well as audible and visual alarms.
6. Platform Integration
Support ONVIF, provide SDK & demo for development; provide NVR and VMS software for application.
Specifications
| Category | Specifications |
|---|---|
| Thermal Module | |
| Detector Type | VOx, uncooled FPA detectors |
| Spectral Range | 8~14μm |
| NETD | ≤40mK (@25°C, F#1.0, 25Hz) |
| Resolution | 256×192 |
| Pixel Pitch | 12μm |
| Focal Length | 3.2mm / 7mm |
| Optical Module | |
| Sensor | 5MP 1/2.7″ Progressive Scan CMOS |
| Resolution | 2560×1920 |
| Focal Length | 4mm / 8mm |
| IR Distance | 30m |
| Image Function | |
| Bi-Spectrum Image Fusion | Support |
| Temperature Measurement | |
| Temperature Range | -20℃~+550℃ |
| Temperature Accuracy | ±2℃ or ±2% |
| Temperature Measurement | Support 4 temperature measurement rules (full-frame, point, line, area) |
| Smart Function | |
| Fire Detection | Support |
| VCA | Support Line Crossing & Intrusion detection with AI human/Vehicle recognition |
| 2-Way Audio | Support |
| Linkage Action | Video/Snapshot/Email/Alarm output/Sound and light alarm |
| System Interface | |
| Power | DC 12V±25% / POE (802.3af) |
| Network | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio | 1 in / 1 out |
| Alarm | 2 in / 1 out |
| Storage | Micro SD memory (maximum 256G) |
| Reset | Support |
| Serial Port | 1 channel RS485, can support Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃; <95%RH |
| Protection | IP66 |
| Power Consumption | ≤5W |
| Dimension (mm) | Φ129×96 |
| Weight | ≤0.8kg |
Applications
Charging Pile
Electric Temperature Measurement
Perimeter Protection
Warehouse
