HIKMICRO EXPLORER
Views: 593
$0.00
Mini Day & Night World on Hand
- Additional information
- Description
- Specification
- Advantages
- Video
- Download
- ADDITIONAL INFORMATION
- Reviews (0)
Additional information
| Model | E20Plus |
|---|
Description
Application Scenarios
EXPLORER is perfect for carrying around when going outdoor. The 256×192, 12µm thermal camera, 9.7mm lens and a 18.1°x13.6° / 31.8mx23.8m @100m wide FOV make it a great choice for user to find and identify hidden targets in complex surroundings, such as bird searching or observing nature on camping trips at day or night.

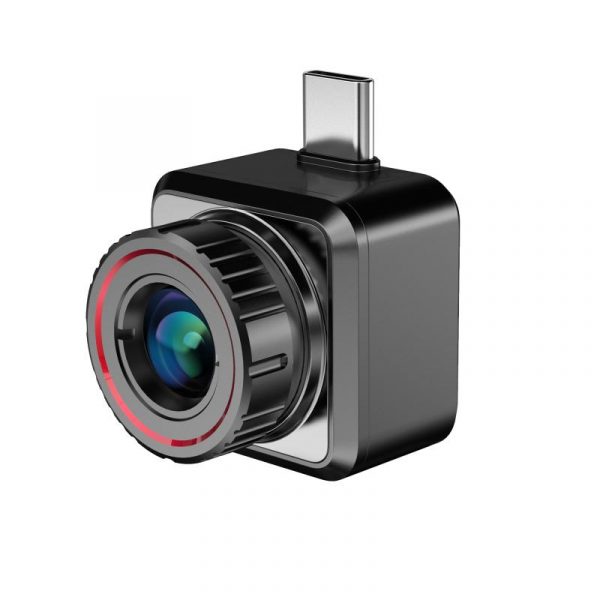

Mini in Pocket, Smaller Than A Watch
Less than 26 g, just take it as you go.
Installation Takes Less Than One Second

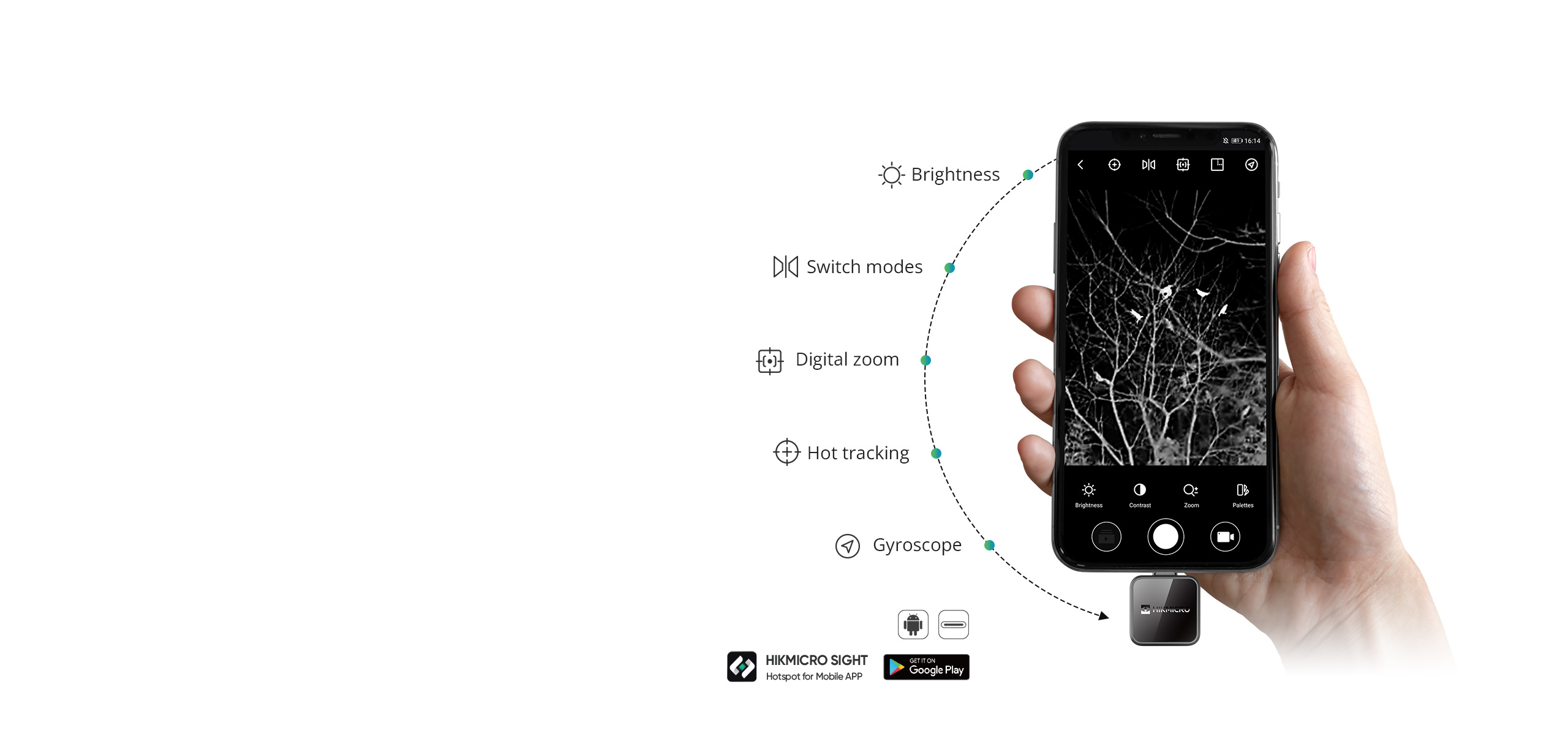

Simply plug in the E20 Plus to your smartphone (Only support Andriod Phones) and start exploring it with HIKMICRO Sight APP right away, wireless connectivity supported
Powerful Thermal Detector, Image Matches Your Visual Experience
256 x 192 @12μm thermal detector, 9.7mm lens ensures a wide 18.1°x13.6°/31.8mx23.8m @100m FOV, EXPLORER ensures the thermal image significantly matches your visual experience.
Specification
| Product Model | E20Plus |
|---|---|
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 x 192 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 50 mK (@25°C, F#=1.0) |
| Lens (Focal Length) | 9.7 mm |
| Detection Range | 970 m |
| Field of View (H × V) | 18.1° x 13.6° / 31.8m x 23.8m @100m |
| Aperture | F1.0 |
| Magnification | 1x – 2x (Digital zoom 2x) |
| Image Display | |
| Contrast Adjustment | Adjustable contrast from 0 to 100 |
| Brightness Adjustment | Adjustable brightness from 0 to 100 |
| Image Mode | Birdwatching/Red Hot/White Hot/Black Hot/Rainbow/Ironbow |
| General | |
| Power Consumption | 360 mW |
| Protection Level | IP40 |
| Weight | 26g |
| Dimension | 26.6mm x 26.6mm x 27.2mm |
| Working Temperature | From -10°C to 50°C |
| Power Supply | |
| Power Supply | USB Type-C interface |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Digital Magnetic Compass | Yes |
| PIP | Yes |
| Hot Track | Yes |
Advantages
1. Smoother HDR image –
Filming at 50Hz, every image is enhanced with a higher dynamic range.

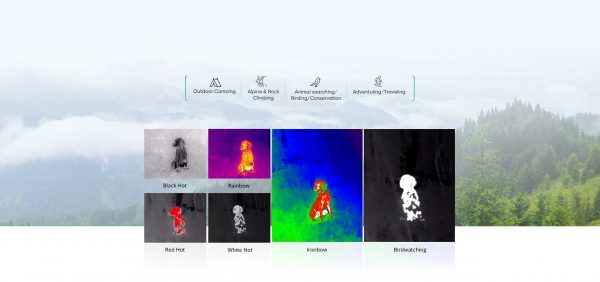

2. Multiple Modes, Extra Birdwatching Mode Available
Six palettes are provided to meet your observation needs in a variety of outdoor scenarios.
3. Battery-free Design with Low Power Consumption <0.35W
With a battery-free design and a ultra-low power consumption (<0.35W), E20Plus can fully meet the needs for all-day use.
4. Long Detection Range
Though with a compact size, EXPLORER offers a long detection range that you can observe up to 970m with a clear image.
