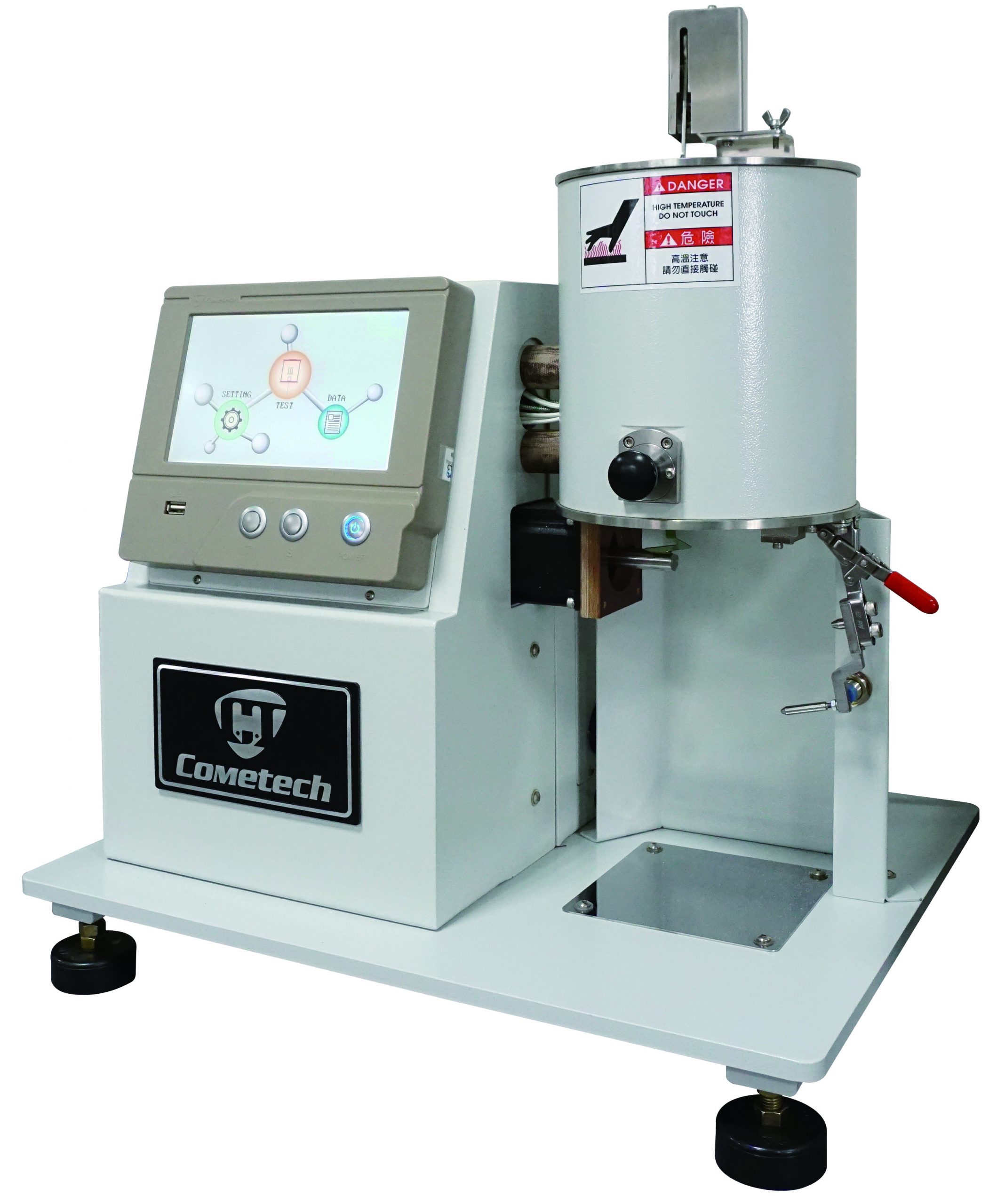

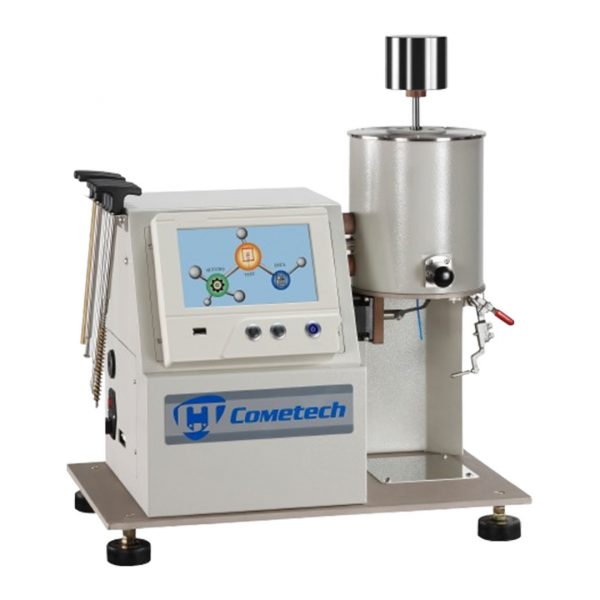

Cometech QC-652S Melt Flow Index Tester
Views: 872
$0.00
Stay Ahead of Competition and Affordable all in one testing machine
This tester can test thermoplastic melt mass flow rate(MFR) and melt volume flow rate(MVR), QC-652S can perform ISO/ASTM standards test methods, equip with touch panel that guide user to precisely and smoothly proceed with test. It also has analysis function and flash drive save function.
Optional accessories can be selected according to different materials properties, such as high flow material block mechanism or MVR volume test mechanism to proceed with various tests
Optional accessories can be selected according to different materials properties, such as high flow material block mechanism or MVR volume test mechanism to proceed with various tests
Description
Stay Ahead of Competition and Affordable all in one testing machine
This tester can test thermoplastic melt mass flow rate(MFR) and melt volume flow rate(MVR), QC-652S can perform ISO/ASTM standards test methods, equip with touch panel that guide user to precisely and smoothly proceed with test. It also has analysis function and flash drive save function.
Optional accessories can be selected according to different materials properties, such as high flow material block mechanism or MVR volume test mechanism to proceed with various tests.
Optional accessories can be selected according to different materials properties, such as high flow material block mechanism or MVR volume test mechanism to proceed with various tests.
Specification
Use Temperature |
50°C-360°C |
Counter Accuracy |
±0.01s |
Piston Push Rod Weight |
100g |

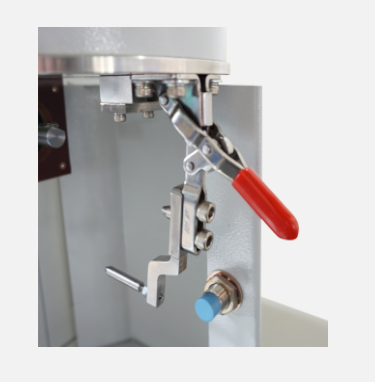

Automatic Cut |
Interval time 1~300 seconds can be set |
Heater Size |
9.55mm±0.01mm |
Hole Mold |
2.095mm±0.005mm |

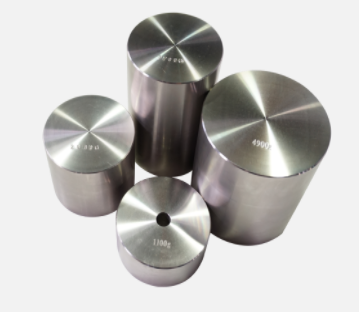

Counter Weight |
Stainless steel 1100g 、2060g、3700g、4900g、9900g、12400g、19900g、21500g ( Optional) ( rod weight 100g) |

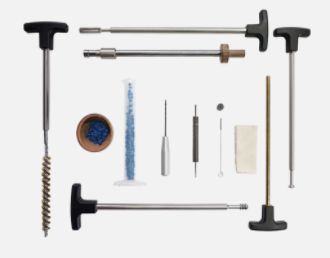

Accessories |
Cleaning brush, measuring cups, funnel and Die calibration plug gauge |
Weight |
40kg (machine weight) |
Dimension |
47x38x48 cm (47x38x60cm with MVR part) |
Optional Accessories |
1. High MI value material block mechanism 2. MVR test mechanism |
Power |
220V Single phase 50Hz/60Hz, 7A |
Conforms Standards
- ASTM D1238
- ASTM D3364
- ISO 1133
- GB/T 3682
Application
- ASTM D1234
- ISO1133 Melt Flow Index
Industry
- Plastic
- Medical Product
- Mask
