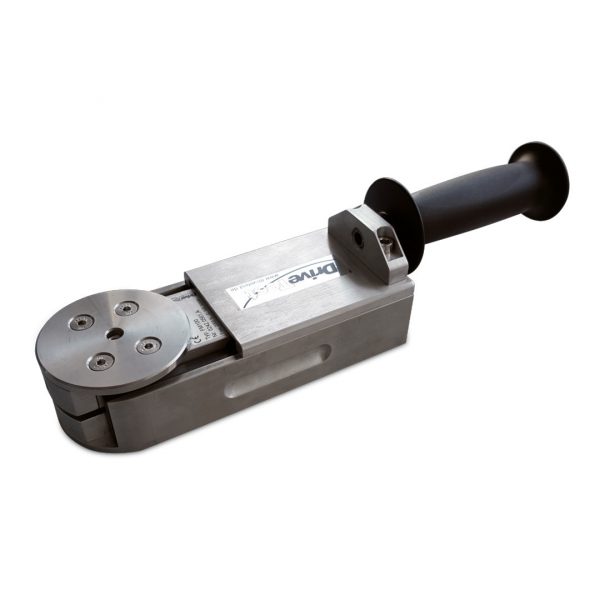

Closing Force Transducer FM100 for Doors and Gates
Views: 2062
$0.00
Closing force measuring device for doors and gates
Description
Closing force measuring device for doors and gates
In the case of cyclical measurements on systems with several doors and gates, a quick and easy implementation is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement process and the effort required for documentation.
With just a few operating steps, the measurements of a complete system can be taken over, printed out in tabular form and saved in a database. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.
– Support of relevant standards – EN 12445/12453, EN 60335-2,
DIN V 18650, ASR A1.7, etc.
– Precise measurements
– Robust design
– Ease of use – operate with a single button or remotely via
Microsoft® DLL interface or National Instruments® LabView library
– Complete scope of delivery – including high-quality transport case and software
– Professional, comprehensive PC software – PinchPilot
– Comprehensive user support – calibration service, standard change service guaranteed
the application of the latest version of the standard
– Software support – integration into existing software structures possible
– Extensive systems can be measured in one run
Specification
| FM 100 | |
| Measuring range | 0 … 2000 N |
| Accuracy | +/– 3 N or 3 % of reading |
| Resolution | 1 N |
| Stiffness | 500 N/mm |
| Gap width | 50 mm / 1.9″ |
| Diameter | 80 mm / 3.1″ |
| Measuring principle | DMS transducer |
| Memory | 80 measurements |
| Acquisition frequency/rate | 500 Hz / 2 ms |
| Power supply SEB2 | battery 9 V block, e.g. 6LR61 |
| Battery voltage monitoring | yes |
| Environmental conditions | |
| Operating temperature range | -10 to +40 °C / 14 to 104 °F |
| Storage temperature range | -40 to +50 °C / -40 to 122 °F |
| Humidity | max. 90% rel.H, non-condensing |
| Dimensions | 210 x 80 x 50 mm / 8.2 x 3.1 x 1.9″ |
| Weight | 2.1kg / 4.6 lb |
| Display device SEB2 | |
| – Data logger unit with LCD display and LED status indicators, control button, serial | |
| interface | |
| – Optional PC-controlled measurement | |
| – 9 V battery supply | |
| – Real time clock | |
| – Memory for 100 measurements | |
| – Sensor and PC interface | |
| – Peak value display and effective power display | |
| – Rating display i. O./n. i. O. | |
| PC evaluation software PinchPilot | |
| – Multilingual (DE, EN, IT, FR, ES) | |
| – Graphic representation of the force curve | |
| – Calculation of important parameters | |
| – Evaluation according to different guidelines (standards) | |
| – Possibility of entering self-defined guidelines | |
| – Log printout | |
| – Data export (Excel, CSV, PDF) | |
| – System requirements software PinchPilot and App (see tab Software/App) | |
Delivery Scope
1 x Separate measured value acquisition module (SEB2 display device) with LCD display, LED display,
Membrane button and serial interface
1 x 9V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB data stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO calibration certificate
