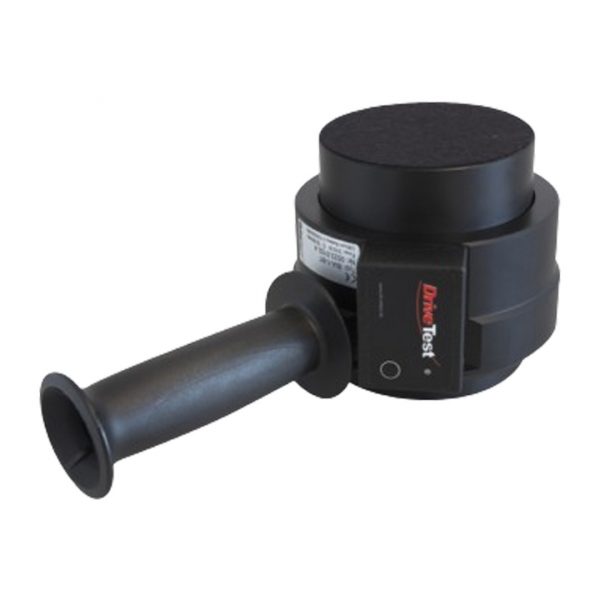

Closing Force Transducer BIA-1 BT for Bus and Train Doors and Sliding Steps
Views: 2116
$0.00
Wireless closing force measurement system for bus and train doors and sliding steps
Wireless / app downloadable / incl. software
Description
Wireless closing force measurement system for bus and train doors and sliding steps
Wireless / app downloadable / incl. software
This results in many advantages for you in daily use, such as automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.
– Easy to use – implements experience from years of use
Extensive customer service – in-house calibration service and software updates ensure the
Use of current guidelines
– Immediate evaluation – according to selected guidelines and standards
– Process reliability – integrated test instructions ensure that the measurement is in line with the guidelines
– Large temperature working range
– Language selection – Available in DE/ EN/ ES/ FR/IT/ CN
– Support of relevant standards
– User guidance and evaluation according to EN 14752:2005, VDV 111, 2001/85/EG
– Precise measurements – granted by six-ball-bearing guide
– Robust design – housing made of high-strength material for a long service life in tough applications
– Wireless – no more annoying cables
– Measuring point identification – via QR and barcodes (integrated solution)
– Upgrade option – for existing devices
Specification
| BIA-1 BT | |
| Measuring range | 25 … 310 N |
| Accuracy | +/– 3 N or 3 % of reading |
| Stiffness | 10 N/mm |
| Resolution | 1 N |
| Gap width | 115 mm / 4.5″ |
| Diameter | 100 mm / 3.9″ |
| Measuring principle | DMS transducer |
| Acquisition frequency / rate | 250 Hz / 4 ms |
| Power supply | 5 V DC via USB max. 500 mA |
| Lithium polymerbattery 350 mAh | |
| Battery life under full load | more than 10 hours |
| (continuous measurement) | |
| Environmental conditions | |
| Operating temperature range | -10 to +40 °C / 14 to 104 °F |
| Storage temperature range | possible: -40 to +50 °C / -40 to 122 °F |
| ideal: +10 to +25 °C / 50 to 77 °F | |
| Humidity | max. 90% relative humidity, non-condensing |
| Dimensions | 260 x 130 x 115 mm / 10.2 x 5.1 x 4.5″ |
| Weight | 2.1 kg / 4.6 lb |
| PC evaluation software PinchPilot – Multilingual (DE, EN, IT, FR, ES) – Graphic representation of the force curve – Calculation of important parameters – Evaluation according to different guidelines (standards) – Possibility of entering self-defined guidelines – Log printout – Data export (Excel, CSV, PDF) |
|
| Force Meter App downloadable from Google Play Store | |
| – Force Meter – easy-to-use app with automatic guidelines and standards updates |
|
| – Time saving – immediate feedback on the measurement result including simpler report generation |
|
| – Paperless office – reduces paper and the associated costs and protects the environment |
|
| – Can be used individually – integration of the customer’s signature possible
– System requirements software PinchPilot and App (see tab Software/App) |
|
Delivery Scope
1 x App Force Meter available for download in the Google Play Store
1 x Software PinchPilot (USB stick)
1 x USB Cable
1 x Manual
1 x Transport case with foam insert
1 x ISO calibration certificate
