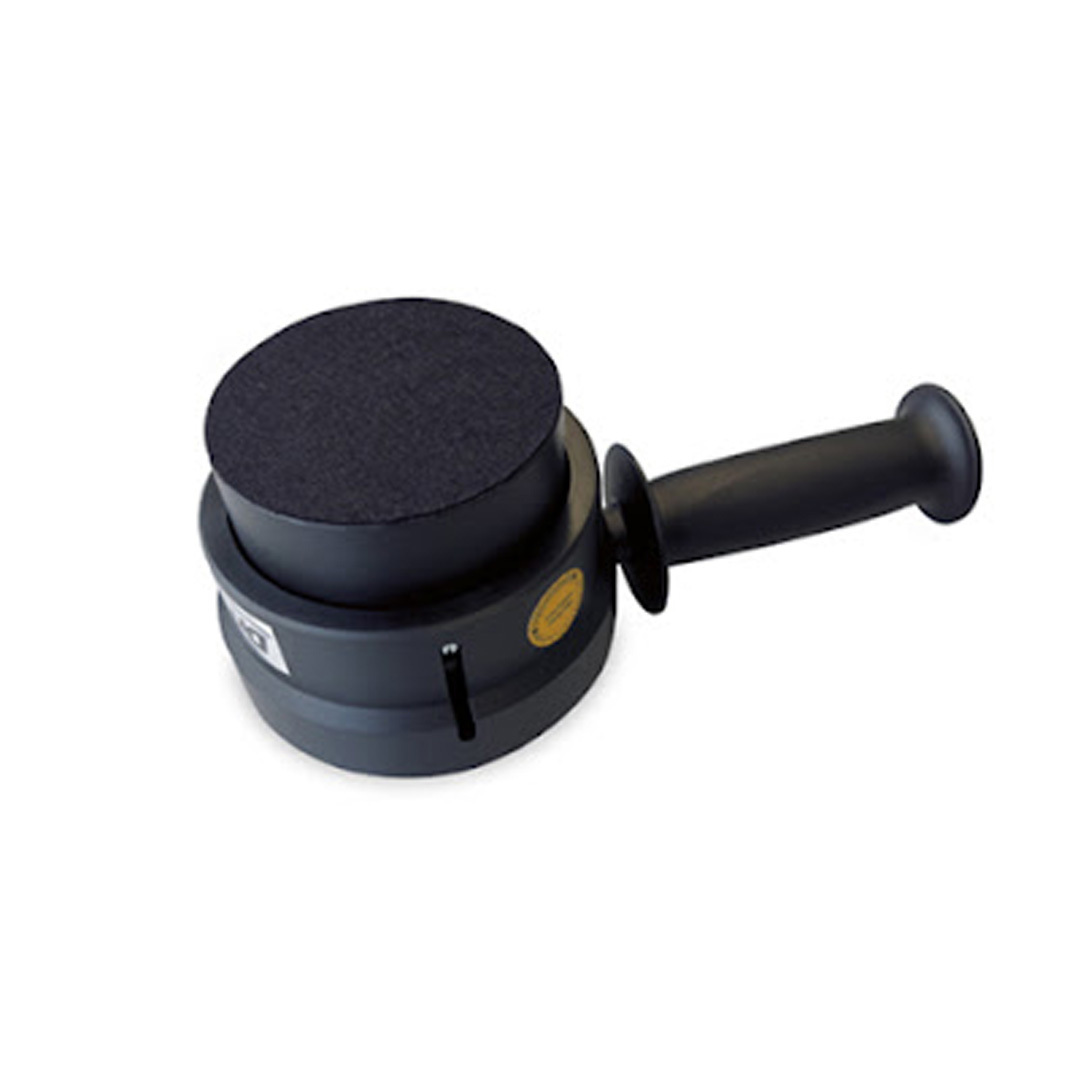

Closing force measuring device / safety through closing force measurement
Description
Closing force measuring device / safety through closing force measurement
For cyclic measurements on vehicles with multiple doors, a quick and easy implementation is of great importance. For this purpose, software was developed that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements for a complete vehicle can be taken over, printed out in tabular form and saved in a database.
We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.
– Applicable standards – EN 14752:2005, VDV 111, 2001/85/EG
– Precise measurements
– Robust design
– Easy to use
– Operation with a single button or remotely via Microsoft® DLL interface or National
Instruments® LabView library
– Complete scope of delivery – including high-quality transport case and software
– Professional, comprehensive PC software – PinchPilot
– Comprehensive user support – calibration service, standard change service
– Support for the management of large fleets
Specification
| Original BIA Class 1 | |
| Measuring range | 25 … 310 N |
| Accuracy | +/– 3 N or 3% of reading |
| Resolution | 1 N |
| Stiffness | 10 N/mm |
| Gap width | 115 mm / 4.5″ |
| Diameter | 100 mm / 3.9″ |
| Measuring principle | DMS transducer |
| Acquisition frequency / rate | 250 Hz / 4 ms |
| Power supply | battery 9 V block, e.g. 6LR61 |
| Battery voltage monitoring | yes |
| Operating temperature range | -10 to +40 °C / 14 to 104 °F |
| Storage temperature range | -40 to +50 °C / -40 to 122 °F |
| Humidity | max. 90% rel. h, non-condensing. |
| Dimensions | 260 x 130 x 115 mm / 10.2 x 5.1 x 4.5″ |
| Weight | 2.1 kg / 4.6 lb |
| Display device SEB2 | |
| – Data logger unit with LCD display and LED status indicators, control button, serial interface |
|
| – Optional PC-controlled measurement | |
| – 9 V battery supply | |
| – Real time clock | |
| – Memory for 100 measurements | |
| – Sensor and PC interface | |
| – Peak value display and effective power display | |
| – Rating display i. O./n. i. O. | |
| PC evaluation software PinchPilot | |
| – Multilingual (DE, EN, IT, FR, ES) | |
| – Graphic representation of the force curve | |
| – Calculation of the standard-relevant characteristic values | |
| – Evaluation according to different guidelines possible | |
| – Custom policy adjustable | |
| – Log printout | |
| – Data export (Excel, CSV, PDF) | |
| – Optional measuring point identification
– System requirements software PinchPilot (see tab Software/App) |
|
Delivery Scope
1 x Display device SEB2 separate measured value acquisition module
with LCD and LED display membrane key and serial interface
1 x 9V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB data stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO calibration certificate
