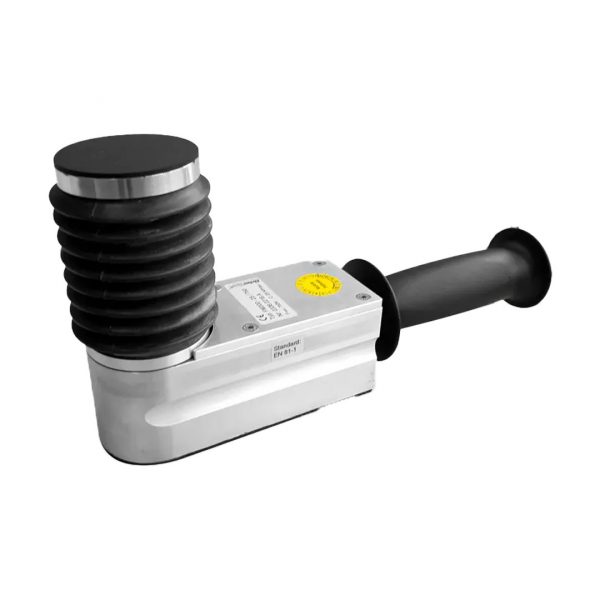

Closing Force Measuring Device FM300 for elevator doors
Views: 1960
$0.00
Closing force measurement system for elevator doors
Description
Closing force measurement system for elevator doors
In the case of cyclical measurements on objects with several elevators, a quick and easy implementation is of great importance. For this purpose, software was developed that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements of all elevator doors in a building can be taken over, printed out in tabular form and saved in a database.
We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.
– Support of relevant standards – EN 81-1, EN 81-2, EN 81-20:2014, EN 81-50:2015, EN 14120
– Precise measurements
– Robust design
– Easy handling – operation with a single control button or remotely controlled via Microsoft® DLL – interface or National Instruments® LabView library
– Complete scope of delivery – including high-quality transport case and software
– Professional, comprehensive PC software – PinchPilot
– Comprehensive user support – calibration service, standard change service ensures the
Application of the latest version of the standard
– Software support – integration into existing software structures possible
– Extensive systems can be measured in one run – measured value acquisition module saves up to
100 measurements
Specification
| FM300 | |
| Measuring range | 0 … 750 N |
| Accuracy | +/– 3 N or 3 % of reading |
| Stiffness | 25 N/mm |
| Gap width | 145–510 mm / 5.7-20″ |
| Diameter | 58 mm / 2.2″ |
| Measuring principle | DMS transducer |
| Dimensions | 290 x 140 x 60 mm / 11.4 x 5.5 x 2.3″ |
| Weight | 1.7 kg / 3.7 lb |
| Display device SEB2 | |
| – Display device SEB2 data logger unit with LCD display | |
| and LED status indicators, control button, serial interface | |
| – Optional PC-controlled measurement | |
| – 9 V battery supply | |
| – Real time clock | |
| – Memory for 100 measurements | |
| – Sensor and PC interface | |
| – Peak display | |
| – Rating display i. O./n. i. O. | |
| PC evaluation software PinchPilot | |
| – Multilingual (DE, EN, IT, FR, ES) | |
| – Graphic representation of the force curve | |
| – Calculation of the standard-relevant characteristic values | |
| – Evaluation according to different guidelines possible | |
| – Custom policy adjustable | |
| – Log printout | |
| – Data export (Excel, CSV, PDF) | |
| – Optional measuring point identification | |
| – System requirements software PinchPilot (see tab Software/App) | |
Delivery Scope
1 x Display device SEB2 separate measured value acquisition module with LCD display, LED display,
Membrane button and serial interface
1 x 9V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB data stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO Calibration Certificate
