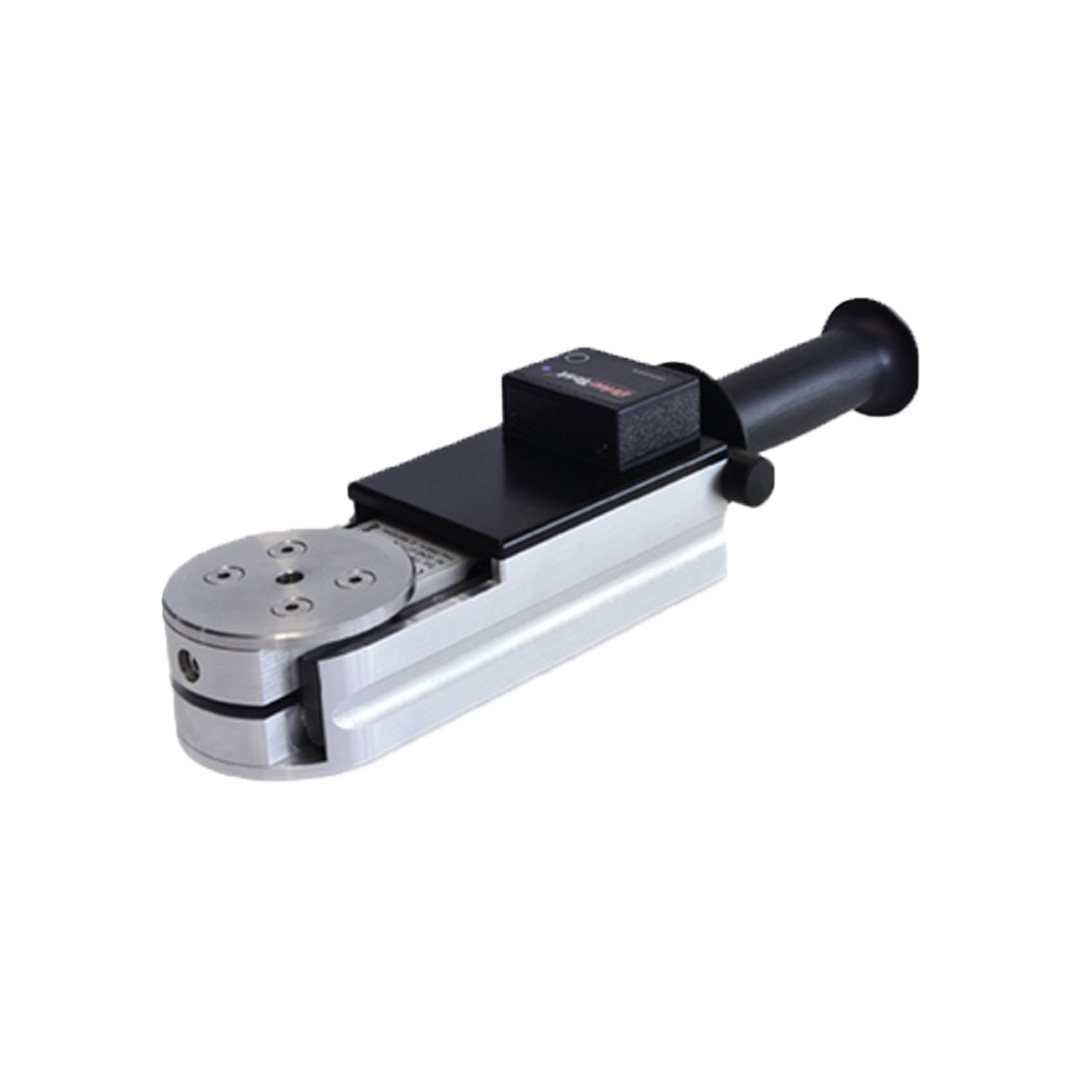

Closing Force Measuring Device FM100-BT for Doors and Gates
Views: 1844
$0.00
Wireless closing force measurement system for doors and gates
Description
Wireless closing force measurement system for doors and gates
A further development of the well-established FM 100 closing force measuring device is supplied with the closing force measuring device. It combines the well-known robust construction for years of use in harsh environments and lasting precision with the flexibility of a wireless application and a user-friendly app.
This results in many advantages for you in daily use, such as automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.
– Easy to use – implements experience from years of use
– Extensive customer service – in-house calibration service and software updates ensure the use of current guidelines
– Immediate evaluation – according to selected guidelines and standards
– Process reliability – integrated test instructions ensure that the measurement is in line with the guidelines
– Large temperature working range
– Language selection – Available in DE/ EN/ ES/ FR/IT/ CN
– Support of relevant standards – user guidance and evaluation according to EN 12453:2017, EN
60335-2, DIN V 18650, ASR A1.7, DHF TS 011:2016 etc.
– Precise measurements – due to friction-free guidance and platform load cell
– Robust design – housing made of high-strength material for a long service life in tough applications
– Wireless – no more annoying cables
– Measuring point identification – via QR and barcodes (integrated solution)
– Upgrade option – for existing devices
Specification
| FM100BT | Bluetooth |
| Measuring range | 0 … 2000 N |
| Accuracy | +/– 3 N or 3% of reading |
| Stiffness | 500 N/mm |
| Gap width | 50 mm / 1.9″ |
| Diameter | 80 mm / 3.1″ |
| Measuring principle | DMS transducer |
| Power supply | 5 V DC via USB max. 500 mA |
| Lithium polymer battery 350 mAh | |
| Battery life under full load | more than 10 hours |
| (continuous measurement) | |
| Environmental conditions | |
| Operating temperature range | -10 to +40 °C / 14 to 104 °F |
| Storage temperature range | possible: -40 to +50 °C / -40 to 122 °F |
| ideal: +10 to +25 °C / 50 … 77 °F | |
| Humidity | max. 90% rel. humidity, non-condensing |
| Dimensions | 210 x 80 x 50 mm / 8.2 x 3.1 x 1.9″ |
| Weight | 2.1kg / 4.6 lb |
| PC evaluation software PinchPilot | |
| – Multilingual (DE, EN, IT, FR, ES) | |
| – Graphic representation of the force curve | |
| – Calculation of important parameters | |
| – Evaluation according to different guidelines (standards) | |
| – Possibility of entering self-defined guidelines | |
| – Log printout | |
| – Data export (Excel, CSV, PDF) | |
| App downloadable from Google Play Store | |
| – Force Meter – easy-to-use app with automatic guidelines and standards updates |
|
| – Time saving – immediate feedback on the measurement result including simpler report generatio |
|
| – Paperless office – reduces paper and the associated costs and protects the environment |
|
| – Can be used individually – integration of the customer’s signature possible
– System requirements software PinchPilot and App (see tab Software/App) |
|
Delivery Scope
1 x App Force Meter available for download
1 x Software PinchPilot (USB stick)
1 x USB cable
1 x Manual
1 x ISO calibration certificate
1 x Transport case with foam insert
