Bayspec OCI™-F Hyperspectral Imager (VIS-NIR, SWIR)
Views: 810
$0.00

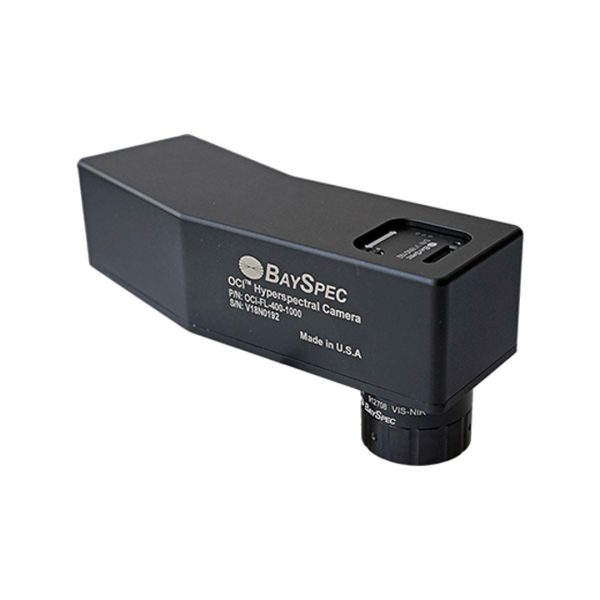

The OCI™F Series (“All Seeing Eye”) hyperspectral camera is a miniaturized push-broom hyperspectral camera covering the full VIS-NIR (400-1000 nm), or SWIR (short-wave infrared, 900-1700 nm) wavelength range, with a SuperSpeed USB 3.0 interface. It features ultra-compactness (14 cm x 7 cm x 7 cm) and light weight (~ 570 g) with fast data transfer rates (up to 60 fps). As an innovative “true push-broom” hyperspectral imager: one can simply move the imager by hand, or drone (UAV) or other vehicles, or move the sample (e.g., conveyor belt) to finish the scan. Not dependent on a constant scanning speed, the OCI-F Series offers versatility on various platforms such as UAVs with perfect hyperspectral image stitching. Compactness, fast imaging, simple operation, and intuitive software make the OCI-F’s the perfect choice for first-time practitioners and old-pros alike. They’re Ideal for applications such as precision agriculture, remote sensing, conveyor sorting, forensics and all airborne applications
Description
Overview
The OCI™F Series (“All Seeing Eye”) hyperspectral camera is a miniaturized push-broom hyperspectral camera covering the full VIS-NIR (400-1000 nm), or SWIR (short-wave infrared, 900-1700 nm) wavelength range, with a SuperSpeed USB 3.0 interface. It features ultra-compactness (14 cm x 7 cm x 7 cm) and light weight (~ 570 g) with fast data transfer rates (up to 60 fps). As an innovative “true push-broom” hyperspectral imager: one can simply move the imager by hand, or drone (UAV) or other vehicles, or move the sample (e.g., conveyor belt) to finish the scan. Not dependent on a constant scanning speed, the OCI-F Series offers versatility on various platforms such as UAVs with perfect hyperspectral image stitching. Compactness, fast imaging, simple operation, and intuitive software make the OCI-F’s the perfect choice for first-time practitioners and old-pros alike. They’re Ideal for applications such as precision agriculture, remote sensing, conveyor sorting, forensics and all airborne applications
Full Details
The compactness, and BaySpec’s proprietary “true push-broom” technology (line-scanning at random speeds), make the OCI-F Series the perfect choice for various applications. Specification
| Key Specs | |
| Operation Mode | “True push-broom” |
| Spectral Range | 400-1000 nm or 900-1700 nm |
| Number of Spectral Bands | Up to 240 (VIS-NIR) / 80 (SWIR) |
| Spatial Pixels | 800 x scan length (VIS-NIR), 250 x scan length (SWIR) |
| Lens | 16 mm (21° FOV) |
Key Features
Key Features
- Extremely compact and light-weight
- “True push-broom” covers 400-1000 or 900-1700 nm
- High sensitivity and resolution
- Effortless system integration
