ATR61U Online High Temperature Thermal Camera
Views: 602
$0.00
The ATR61U Online High Temperature Thermal Camera is a high-performance and high-reliability industrial-grade
thermal imaging device. With its wide measurement range of 1500°C, clear image technology, and intelligent online
monitoring function, this product plays an important role in ultra-high temperature industrial environments such as
steel smelting, glass manufacturing, and ceramic production.
Description
- High temperature range from 0 to 1500°C Accurate measurement
- 640×512 infrared resolution HD vision
- NETD＜50mK Minute temperature difference resolution
- 50Hz frame rate output Quick response
- Support multiple protocols such as Modbus TCP and ONVIF, Support secondary development
Specifications
| Category | Specifications |
|---|---|
| Thermal Imaging Parameters | |
| Detector Type | Uncooled VOx detector |
| Infrared Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Frame Rate | 25Hz |
| Spectral Band | 8μm~14μm |
| Thermal Sensitivity (NETD) | <50mk |
| Temperature Measurement | |
| Measurement Range | 0℃~400℃; 400℃~1500℃ |
| Measurement Accuracy | ±2℃ or ±2% of readings |
| Temperature Measurement Correction | Reflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distance |
| Measurement Tool | Settings for 12 points, lines, and areas; supports isotherm setting |
| Palettes | 18 color palettes (iron red, black-hot & white-hot, rainbow, etc.) |
| Image Processing | Temperature width stretch, non-uniformity correction, thermal image capture, digital zoom (1-8x) |
| System Interface | |
| Communication Interface | RJ45 (Gigabit network); 1-channel RS485 (Pelco-D protocol optional) |
| Alarm Interface | 1-channel alarm input, 1-channel alarm output |
| Video Interface | 1-channel analog video |
| Video Standards | H.264/H.265 |
| Network Protocols | TCP, UDP, SNTP, HTTP, ICMP, SMTP, DHCP, UPnP, PPPOE, RTSP |
| Interface Protocols | ONVIF, GB28181, Modbus TCP, Ethernet/IP |
| Device Specifications | |
| Operating Temperature | -20℃~+60℃ |
| Power Supply Mode | 9~26V DC |
| Typical Power Consumption | 3W |
| Dimensions | 46.5mm × 48mm × 146mm (with 6mm lens) |
| Weight | Approximately 340g |
Applications

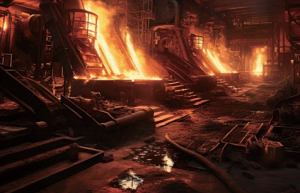

Steel Casting

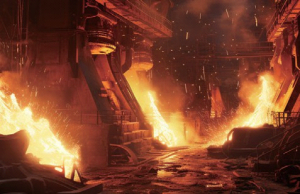

High Temperature Materials

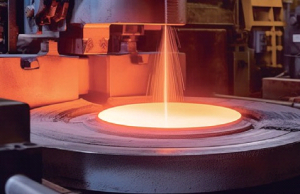

Metal Heat Treatment
Gasifier Monitoring
