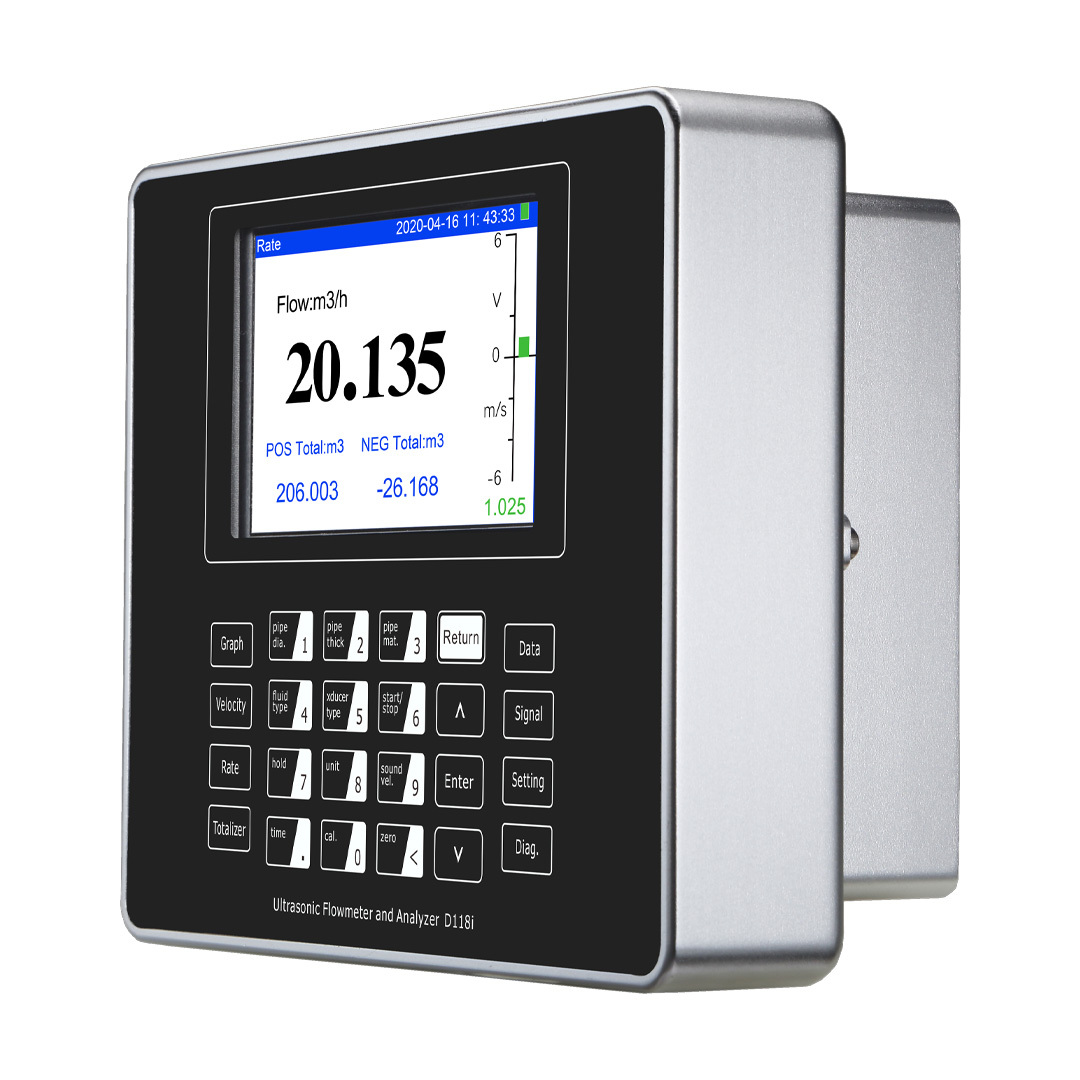

μFlow D118i Modbus High Accuracy Fixed Flowmeter
Views: 1959
$0.00
D118i ULTRASONIC FLOW METERS
Ultrasonic flow meters that use transit-time methods to measure flow.
Description
D118i is an advanced flow meter, which applies our patented PICOFLOY technology, with ultra-high accuracy, linearity, and repeatability, and meets the high measurement accuracy requirements of users.
Main Feature
Main Features
● Measuring Range: 0.01 to 12m/s
● Accuracy: 0.5%
● Bi-direction flow measurement
● Suitable for lined or unlined metal and plastic pipes
Specification
| PERFORMANCE SPECIFICATIONS | |
| Flow range | ±0.03ft/s ~ ±40ft/s (±0.01m/s ~ ±12m/s) |
| Accuracy | ±0.5% of measured value (for ±1.5ft/s~±40ft/s) |
| Repeatability | 0.1% of measured value |
| Pipe size | 1″to 200″ (25mm to 5000mm) |
| FUNCTION SPECIFICATIONS | |
| Outputs | Analog output: 4~20mA, maximum 750Ω.
Pulse output: 0~9999Hz, OCT output, (adjustable) Realy output: the highest 1Hz,(1A@125VAC or 2A@30VDC) |
| Communication | RS232&RS485 Communication Interface, Support Modbus Protocol |
| SD Card | Max record:4GB, working 1200 days ( sample frequency 5 second ) Storage time interval:1~13000s |
| Power supply | 90 to 245 VAC, 48 to 63 Hz. Or 10 to 36VDC |
| Keypad | 24 light tactile keys |
| Display | 4.7 inch TFT color screen |
| Temperature | Transmitter:-40℉~140℉(-40℃~60℃) Transducer:-40℉~176℉(-40℃~80℃,standard) |
| Humidity | Up to 99% RH,non-condensing |
| PHYSICAL SPECIFICATIONS | |
| Transmitter | Die-cast aluminum,IP65,CNC machined |
| Transducer | Encapsulated design, protection grade IP68
The standard length of cable: 9m Material: 304 stainless steel |
| Weight | Transmitter: 1kg |
