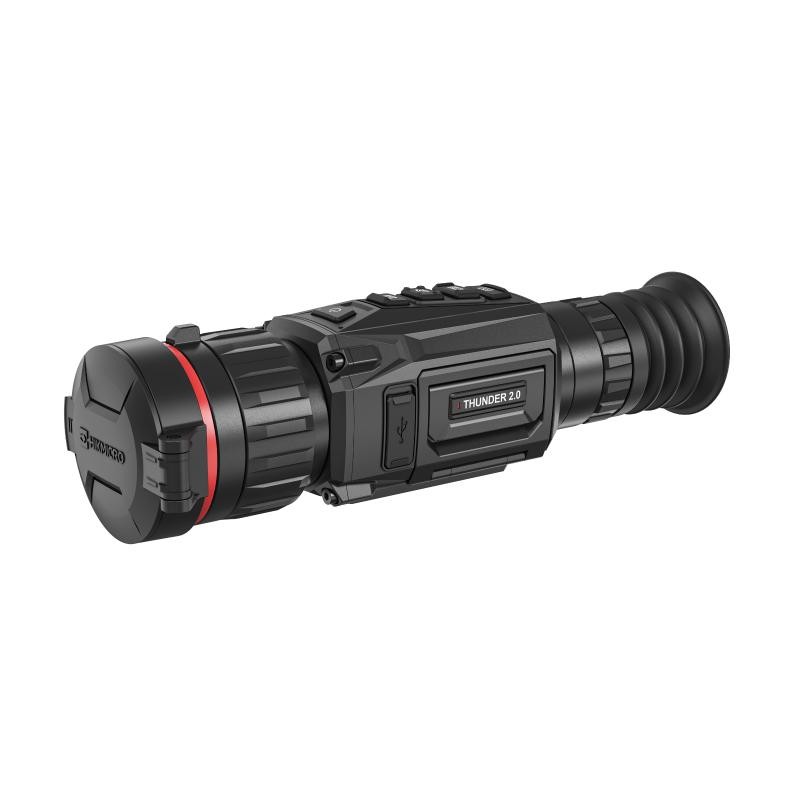

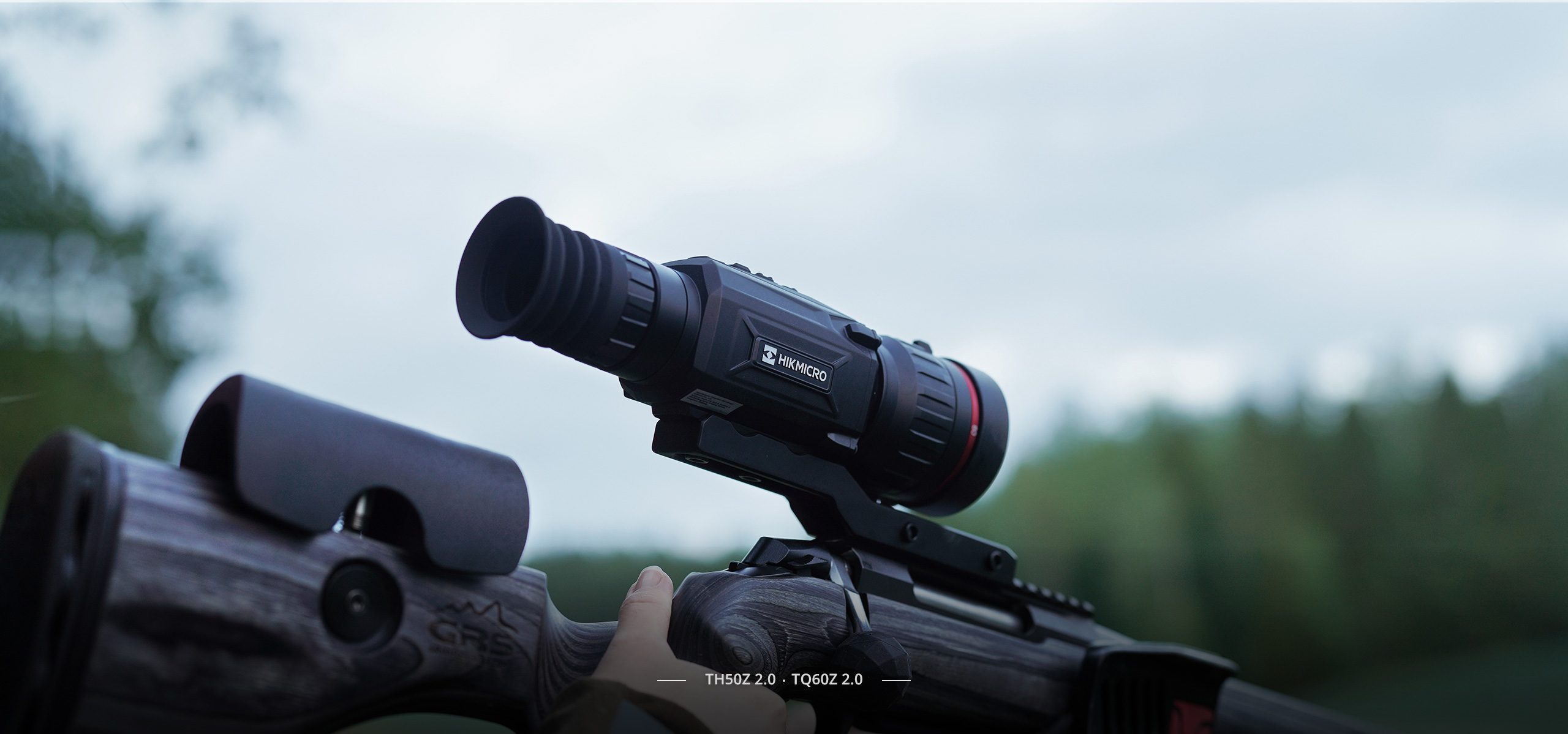

HIKMICRO THUNDER ZOOM 2.0
Views: 695
$120.00 – $2,800.00
The First 20mK Thermal Scope with Optical Zoom
Ultra Clear Image, Impressive Detail Recognition
- Additional information
- Description
- Specification
- Advantages
- Video
- Download
- ADDITIONAL INFORMATION
- Reviews (0)
Additional information
| Model | TH50Z 2.0, TQ60Z 2.0 |
|---|
Description

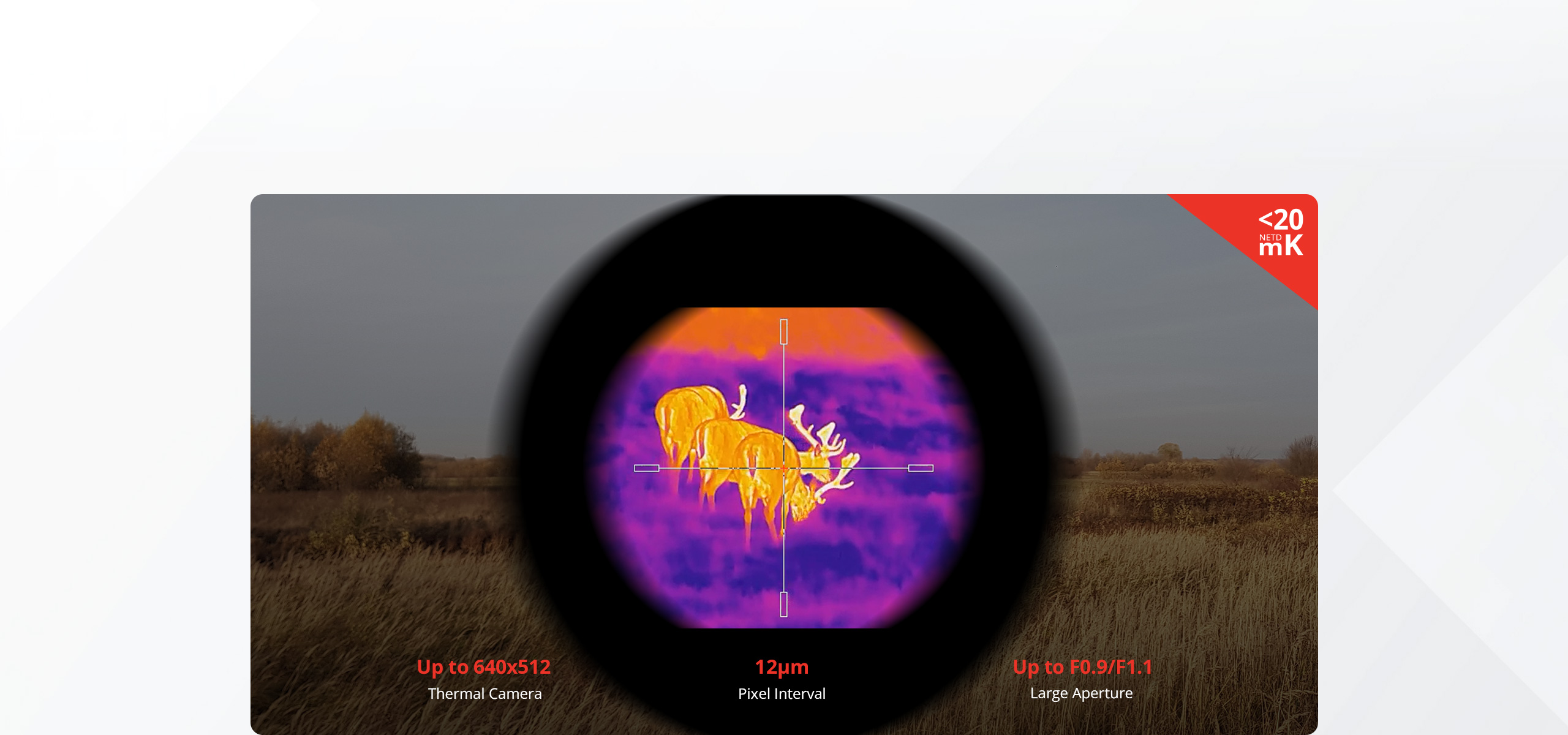

Vivid, Informative and Layered Images
With an extremely high thermal sensitivity (NETD<20mK) detector combining a powerful thermal camera of up to 640×512 @12μm @ F0.9/F1.1, HIKMICRO thermal scope THUNDER ZOOM 2.0 ensures vivid, informative, and layered Images even under the slightest temperature differences.

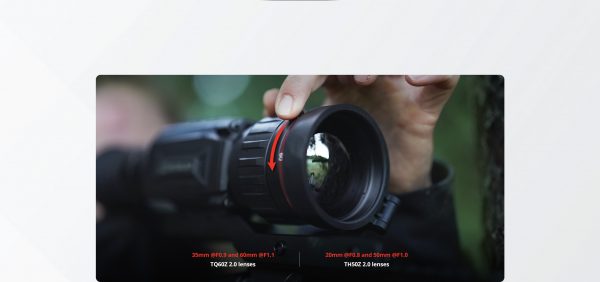

Large Aperture Enhances Identification Capability
The super large apertures of THUNDER ZOOM 2.0 guarantee improved temperature radiation capturing capability, no detail will be missed. You can easily distinguish your target from the background with different lens combos.
High-Quality Zoomed Image through Optical Zoom
Optical Zoom Maintains the High-Quality Images
HIKMICRO THUNDER ZOOM 2.0 offers dual FOV by using optical zoom technology. Using dual lenses, the image is magnified and still maintains high quality. This technology is the first to apply to a 20mK thermal scope.

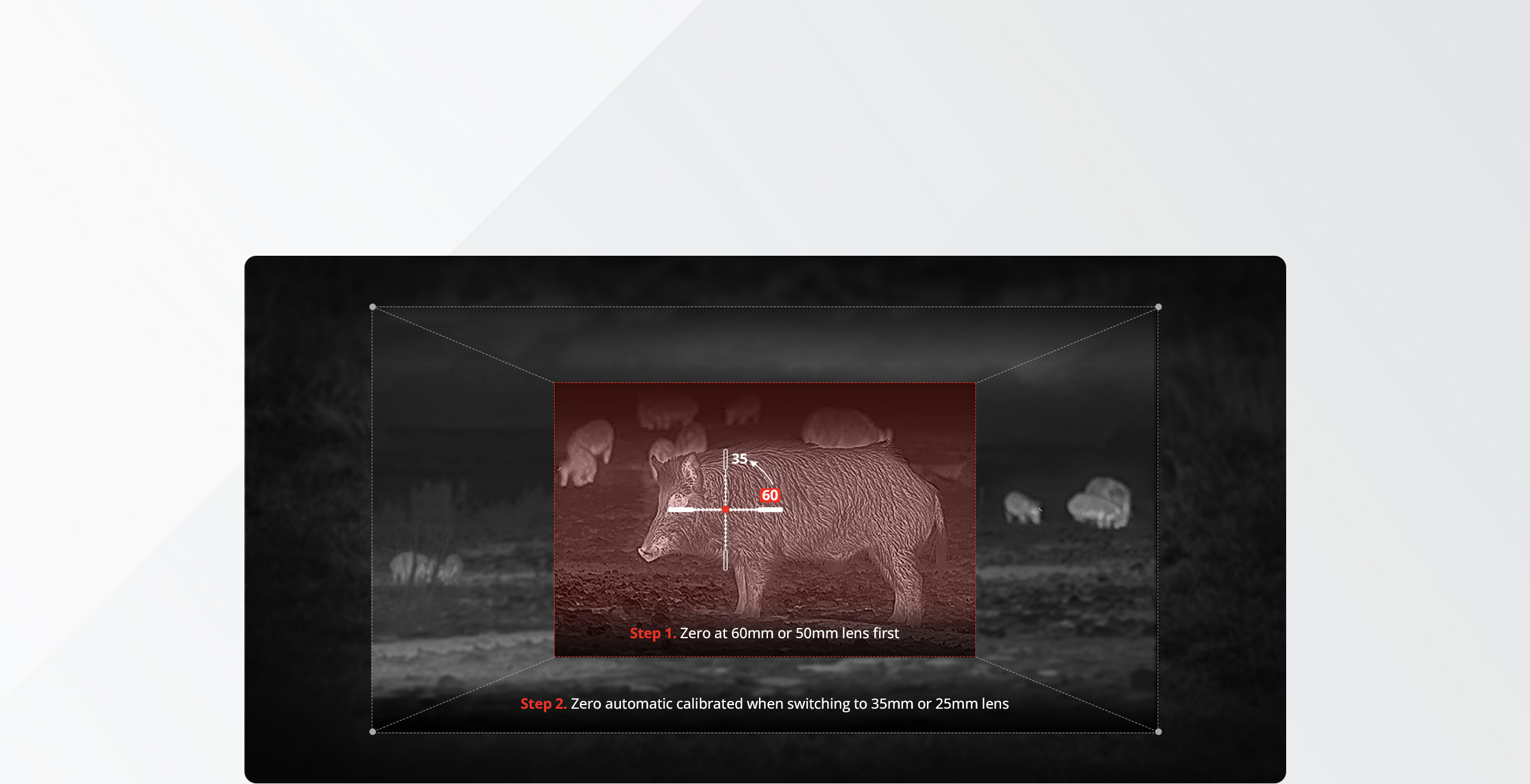

One-Time / Separate Zeroing
One-Time Zeroing: Zero under the small FOV lens first, then switch to the other lens, the zero position will be adjusted automatically. That is, you can zero once before using, time and bullets saving!
Please note: You should zero in 50mm lens in TH50Z 2.0 or 60mm lens in TQ60Z 2.0.
Please note: You should zero in 50mm lens in TH50Z 2.0 or 60mm lens in TQ60Z 2.0.
Separate Zeroing: You can also zero on both lenses respectively to achieve a better game accuracy.
Magnesium Alloy and Lightweight Design Meet the Long-lasting Use
Magnesium Alloy Design Meets Long-lasting Use
Magnesium alloy design; extreme working temperature from -30℃ to 55℃. The improved stability of THUNDER ZOOM 2.0 meets the long-lasting use.
High Shock Resistance up to 1000g/0.4ms
HIKMICRO’s thermal scope THUNDER ZOOM 2.0 has a high shock resistance even on larger calibers to .375 H&H, 12-gauge and 9.3 × 64..
Powerful Battery Performance,
Game Non-stop

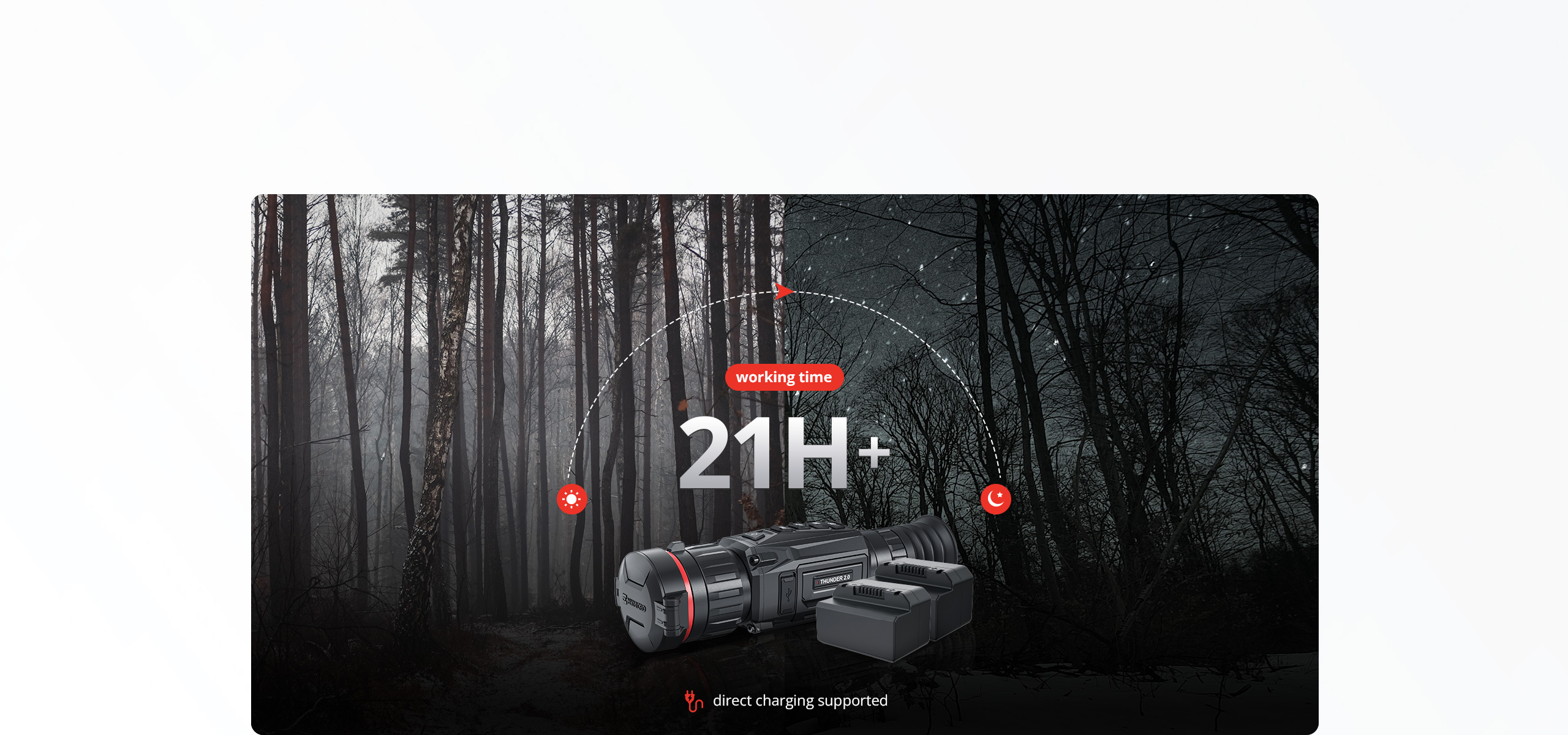

Long Operation Time, Support Direct Charging
TWO new battery packs extend THUNDER ZOOM 2.0’s working time to 21h+, and can be charged in the device directly. Besides, it performs superior to others especially in low-temperature environment.
Improved User Interface, Easy-to-Use
Quick Settings Bring Higher Efficiency in Hunting
1. Brightness and contrast adjustment in Quick Menu helps to conveniently recognize details of the image in a few clicks.
2. The PIP function is activated with ONE press (with Digital Zoom Key).

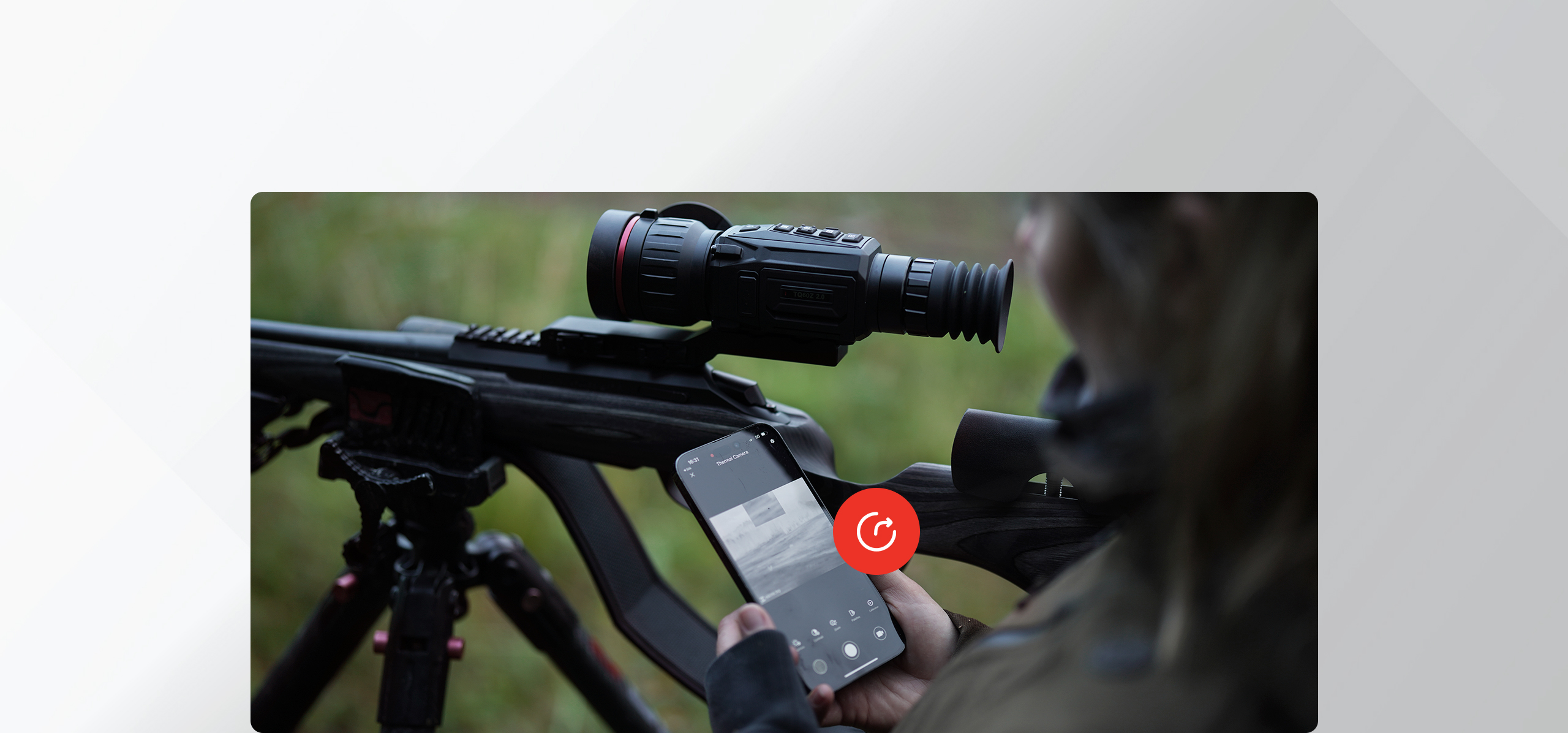

Sharing Your Exciting Moments
HIKMICRO Sight is a comprehensive APP designed for outdoor devices. It’s an all-in-one solution that supports preview, remote control, browse & download, sharing incredible moments and firmware updates.
Specification

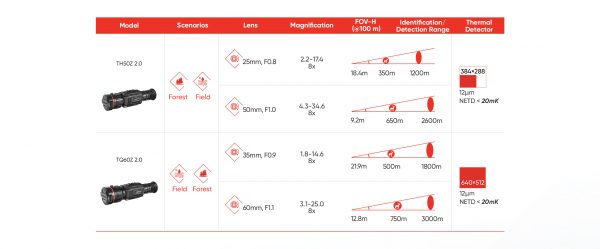

| Product Model | TH50Z 2.0 | TQ60Z 2.0 |
|---|---|---|
| Thermal Module | ||
| Image Sensor | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays |
| Max. Resolution | 384×288 | 640×512 |
| Frame Rate | 50Hz | 50Hz |
| Pixel Interval | 12μm | 12μm |
| NETD | Less than 20mK (25 °C, F#=1.0) | Less than 20mK (25 °C, F#=1.0) |
| Lens (Focal Length) | 25mm, F0.8 AND 50mm, F1.0 | 35mm, F0.9 AND 60mm, F1.1 |
| Detection Range | 1200m / 2600m | 1800m / 3000m |
| Focus Mode | Optical Zoom, Focus Ring | Optical Zoom, Focus Ring |
| Field of View (H × V) | 10.5° × 7.9° / 18.4m × 13.8m; | 12.5° × 10.0° / 21.9m × 17.6m; |
| 5.3° × 4.0° / 9.2m × 6.9m | 7.3° × 5.9° / 12.8m × 10.2m | |
| Min. Focusing Distance | 25mm: 4m / 50mm: 10m | 35mm: 7m / 60mm: 9m |
| Magnification | 2.2x-17.4x / 4.3x-34.6x (8x) | 1.8x-14.6x / 3.1x-25.0x (8x) |
| Image Display | ||
| Display | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED |
| Brightness Adjustment | Yes | Yes |
| Palettes | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Exit Pupil | 6mm | 6mm |
| Eye Relief | 45mm | 45mm |
| Diopter (Range) | -5D to 5D | -5D to 5D |
| Tone Adjustment | Cold, Warm | Cold, Warm |
| General | ||
| Protection Level | IP67 | IP67 |
| Weight | 750g without battery | 843g without Battery |
| Dimension | 241.2mm × 67.0mm × 73.4mm | 254.4mm x 68.5mm x 80.6mm |
| Working Temperature | -30 °C to +55 °C (-22 °F to 131°F) | -30 °C to +55 °C (-22 °F to 131°F) |
| System | ||
| Record Video | Yes | Yes |
| Capture Snapshot | Yes | Yes |
| Hotspot | Yes | Yes |
| Standby Mode | Yes | Yes |
| Storage | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) |
| PIP | Yes | Yes |
| DPC | Yes | Yes |
| Hot Track | Yes | Yes |
| Distance Measurement | Yes | Yes |
| Audio Recording | Yes | Yes |
| Recoil-activation Recording | Yes | Yes |
| Max. Recoil | 1000g/0.4ms | 1000g/0.4ms |
| Zeroing Profiles | 5 | 5 |
| Power Supply | ||
| Battery Type | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | ≥10.5h (25 °C, with hotspot off) | ≥8.5h (25 °C, with hotspot off) |
| Type-C Power Supply | 5V DC, 2 A Supports External Power Supply | 5V DC, 2 A Supports External Power Supply |
Advantages
-

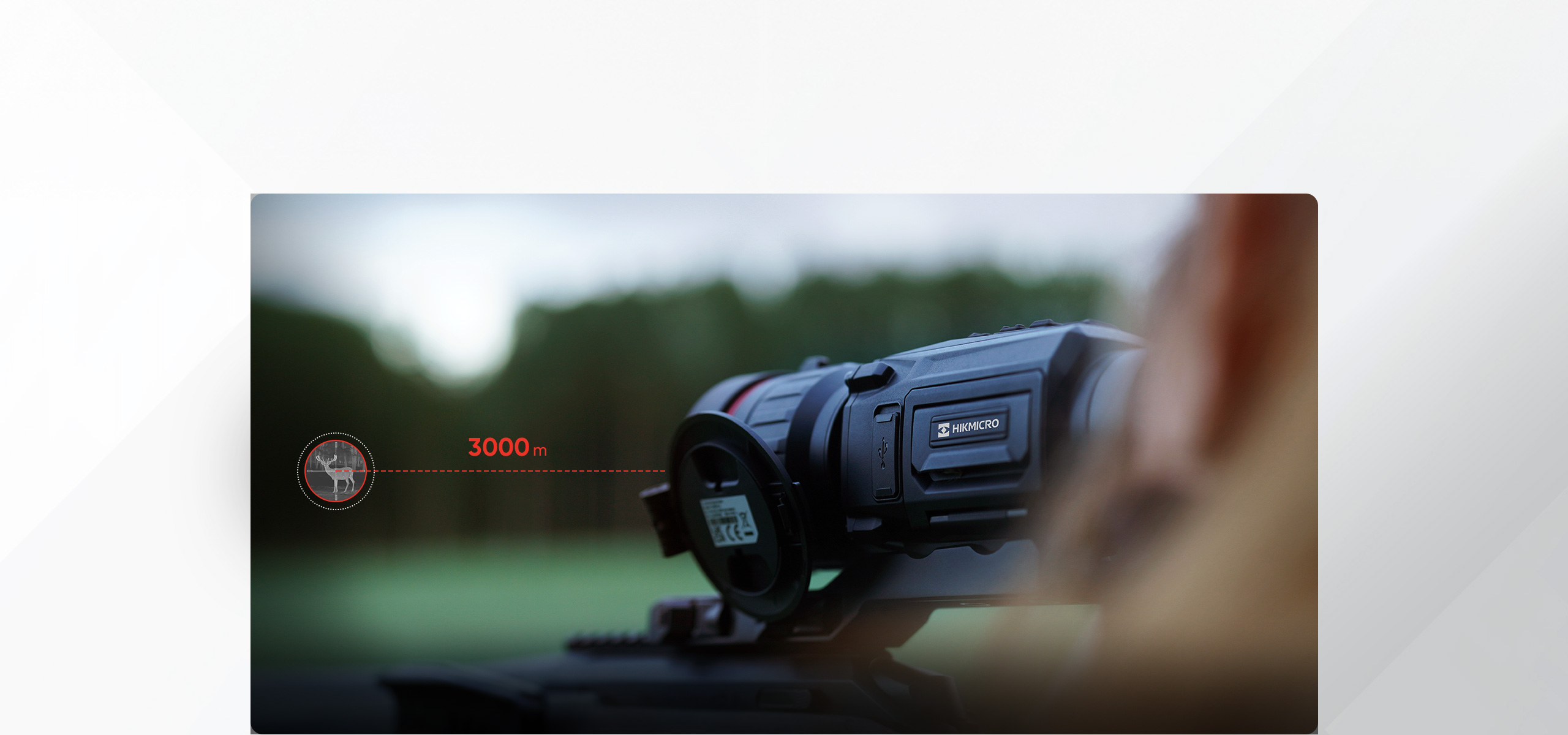

Long Detection Range –
Equipped with an advanced imaging detector and superior lenses, 1.7m object can be detected by HIKMICRO thermal scope THUNDER ZOOM 2.0 from a distance up to 3000 meters, even in complete darkness. -
Multiple Reticle Profiles –
5 reticle groups with 4 colors and 10 reticle types to choose, multiple profiles can be configured and saved in thermal scope THUNDER ZOOM 2.0 for a greater convenience.
