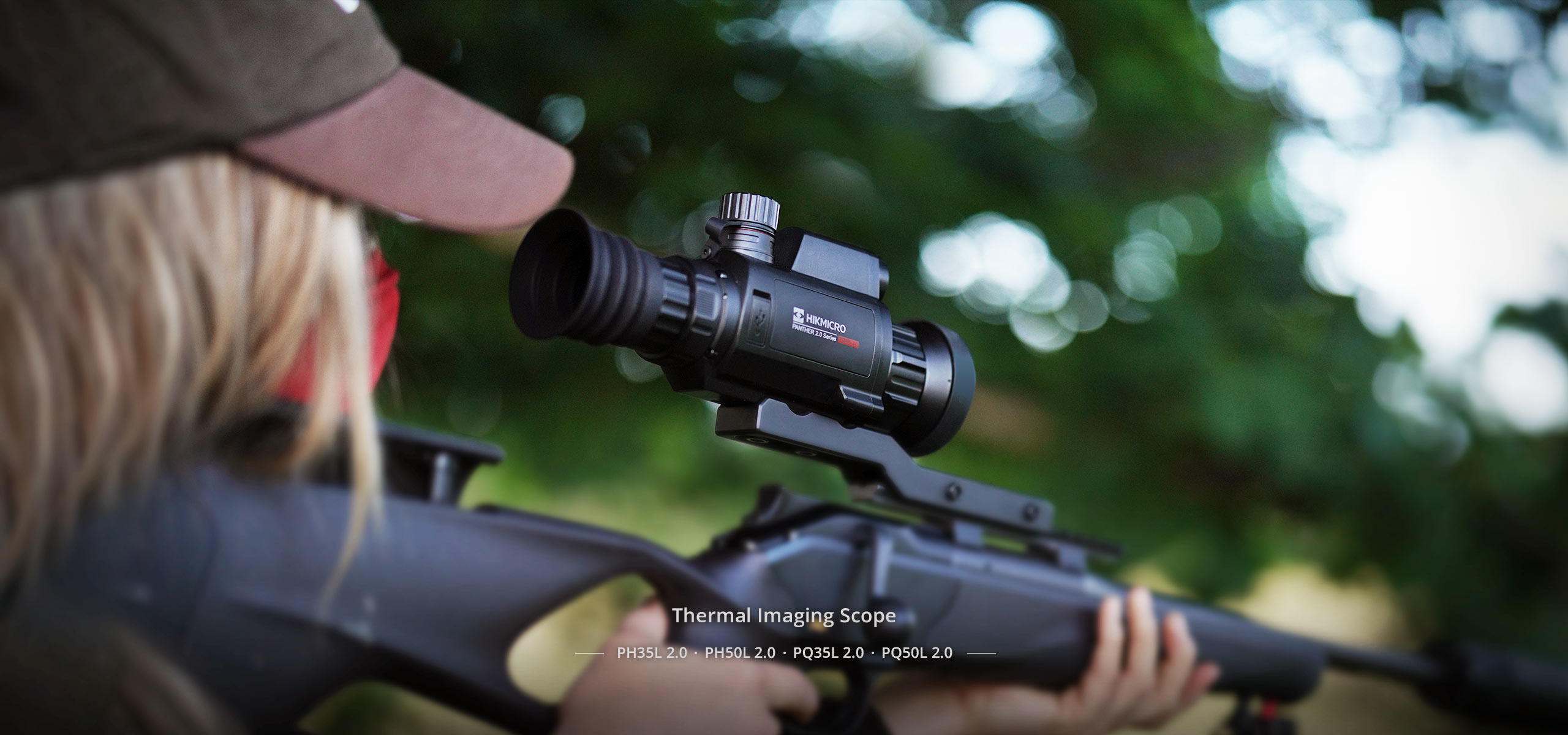

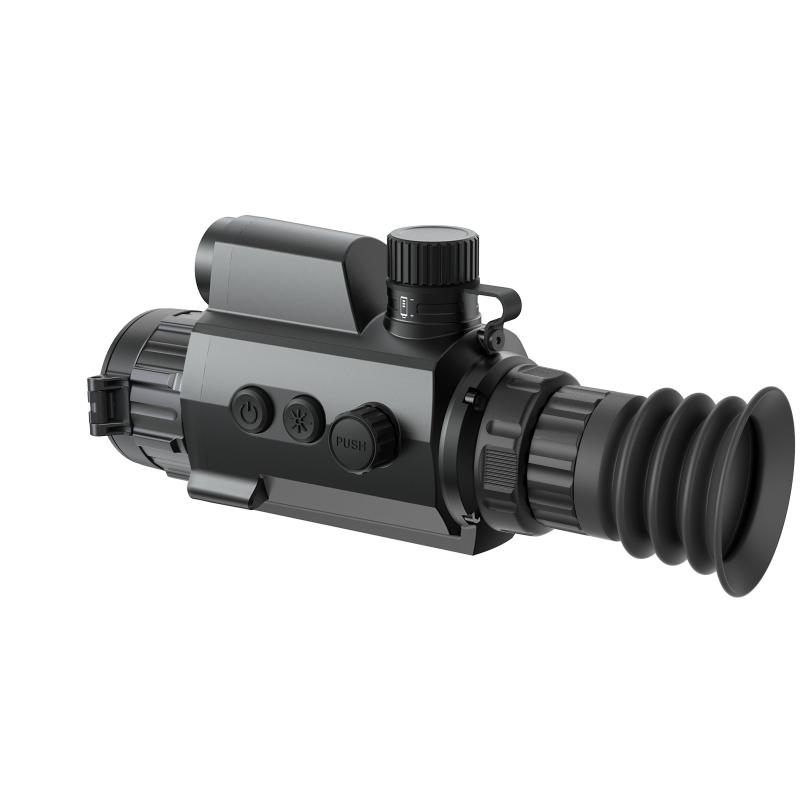

HIKMICRO PANTHER 2.0
Views: 655
$120.00 – $2,800.00
Extremely Clarity. Accurately Distance Measurement
Ultra clear image, impressive detail recognition

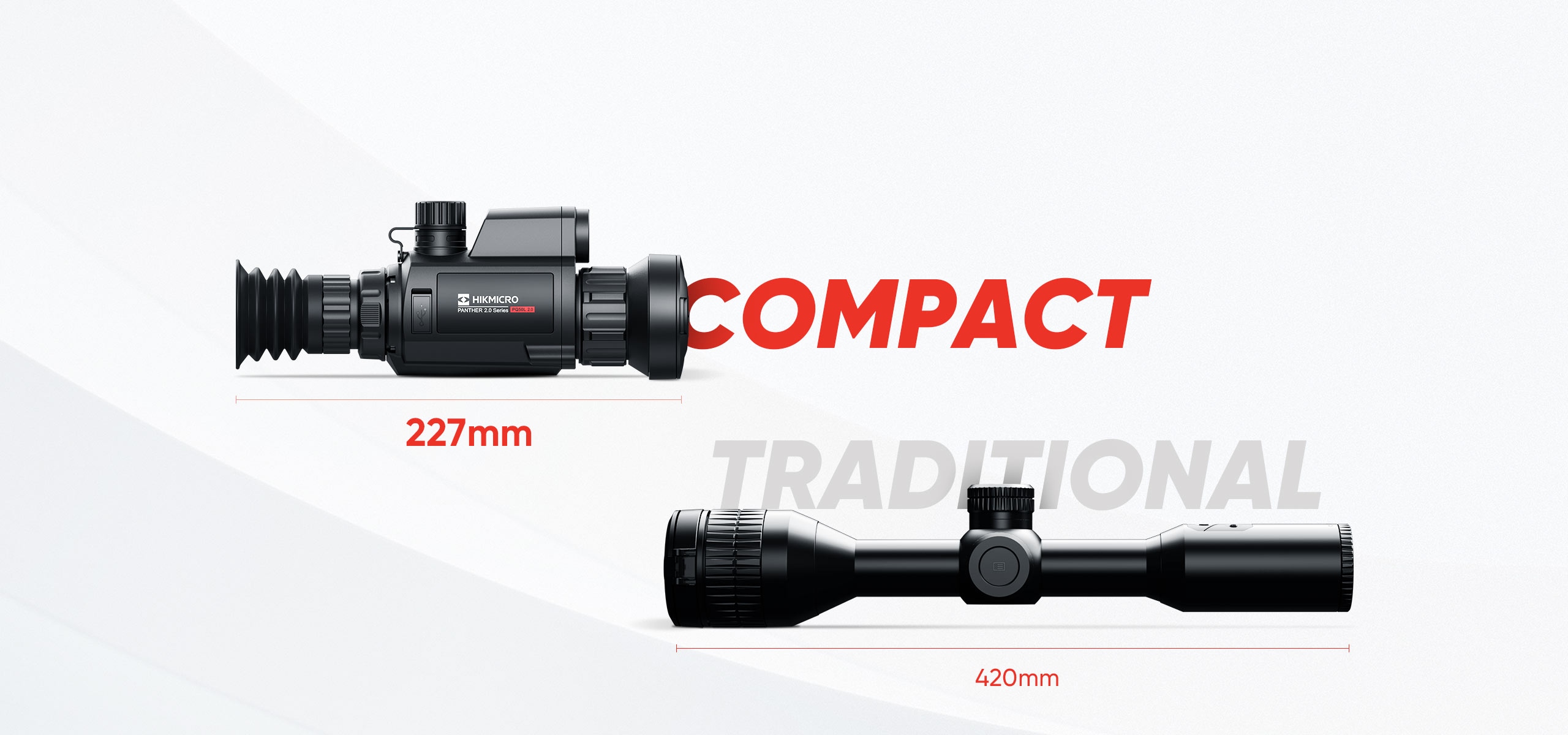

Compact Size and Rugged Design for High Reliability
- Additional information
- Description
- Specification
- Advantages
- Video
- Download
- ADDITIONAL INFORMATION
- Reviews (0)
Additional information
| Model | PH35L 2.0, PH50L 2.0, PQ35L 2.0, PQ50L 2.0 |
|---|
Description
High thermal sensitivity, perfect detail recognition
Every detail matters when identifying targets. Less than 20 mK NETD helps identify small details of objects from the backgrounds easily and clearly even in the hardest weather and low- light conditions.

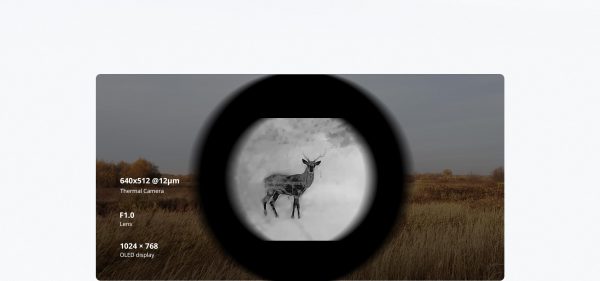

Vivid, informative, and layered images
Even when hunting with thermal imaging, PANTHER 2.0’s powerful thermal camera still provides you with the most vivid and layered images for reliable game identification and maximum hunting success.

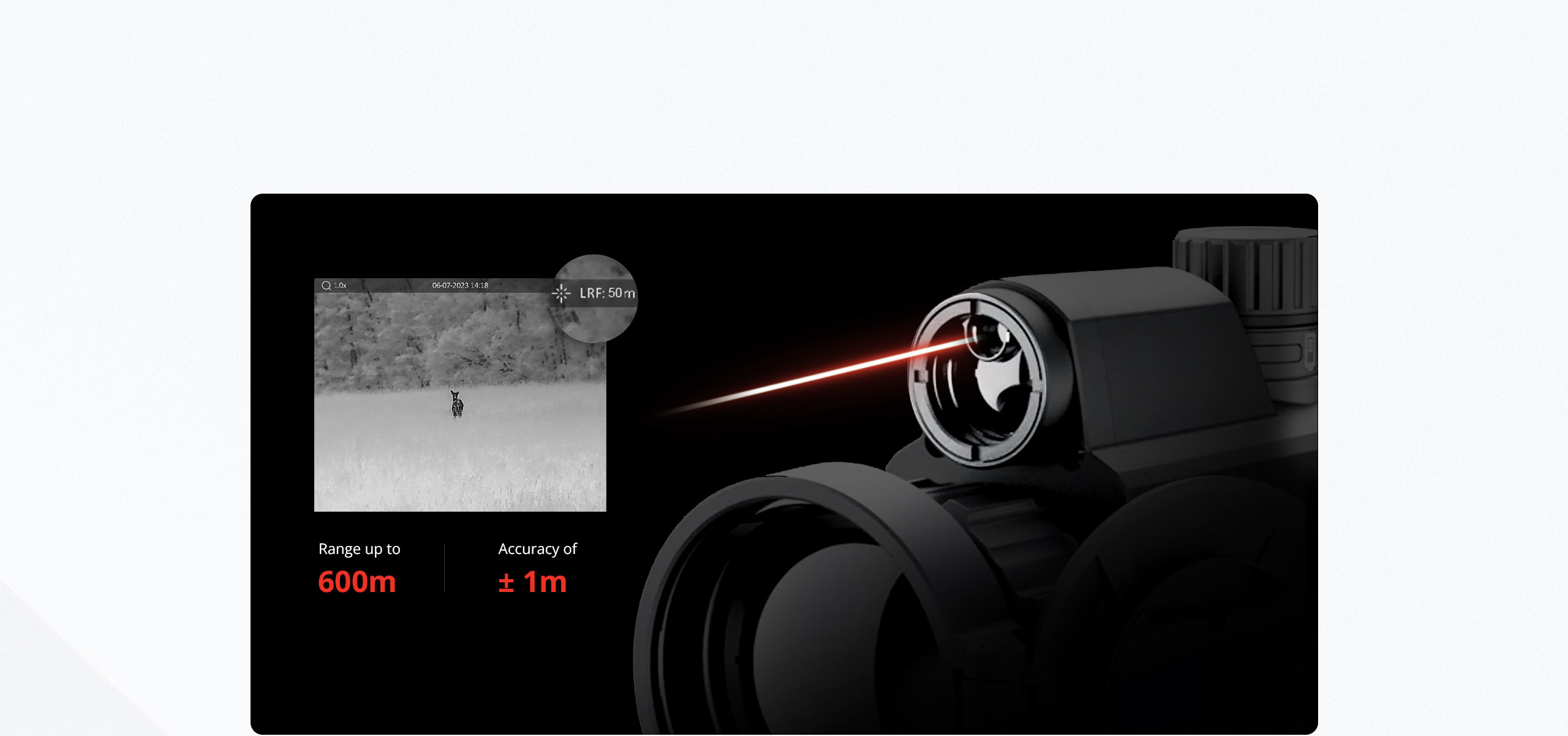

Built-in laser range finder provides an accurate game
Distance from the game is essential to ensure a safe shot. The built-in LRF provides an accurate distance measurement, allowing you to determine the exact time of your shooting.

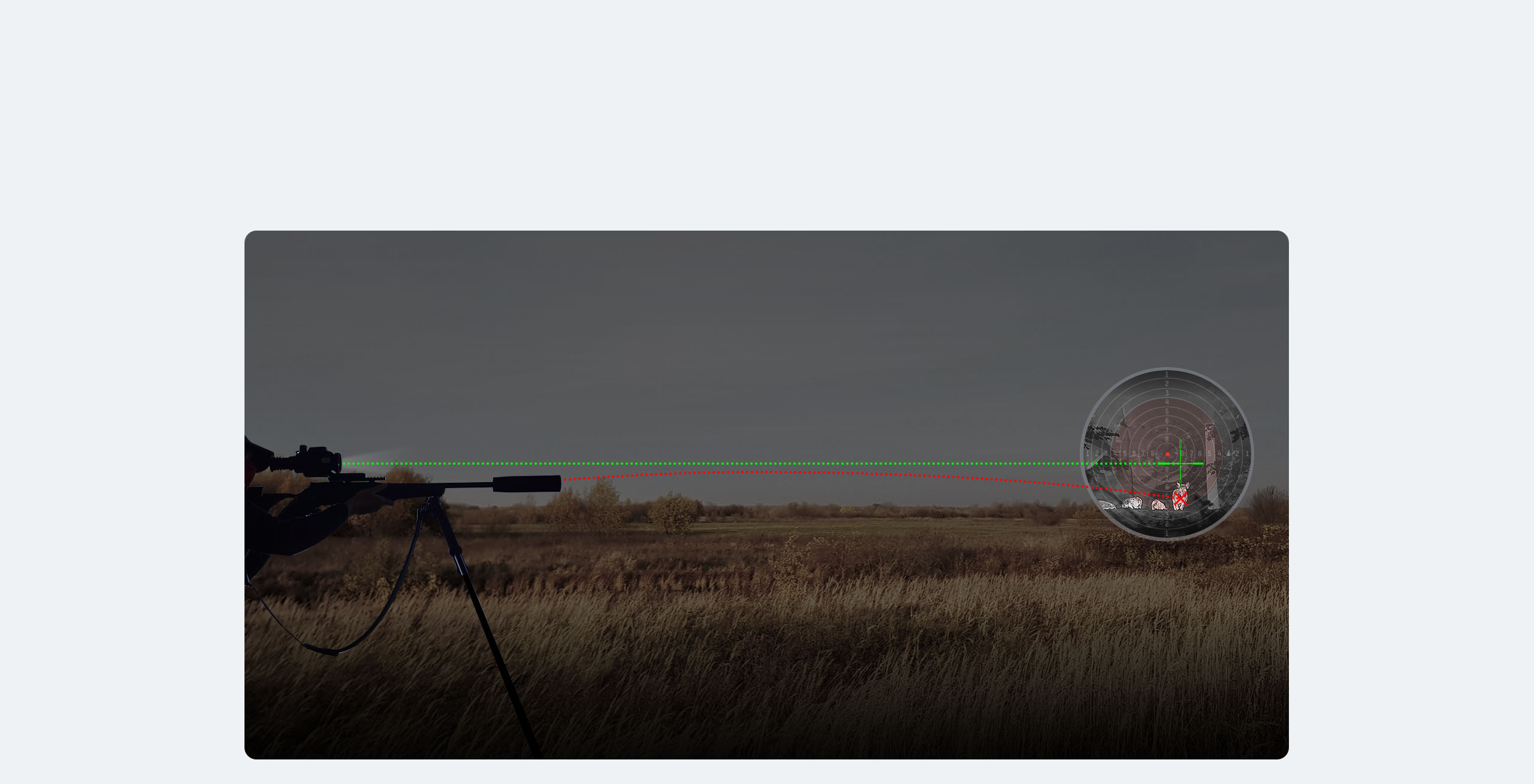

Internal ballistic calculation for long-range shooting
The PANTHER 2.0 is HIKMICRO’s first thermal scope with ballistic calculation, ensuring accurate shooting at any distance. The internal ballistics algorithm calculates the suggested aiming point based on the exact distance measured by the built-in laser ranging finder to ensure precise long-range shooting.

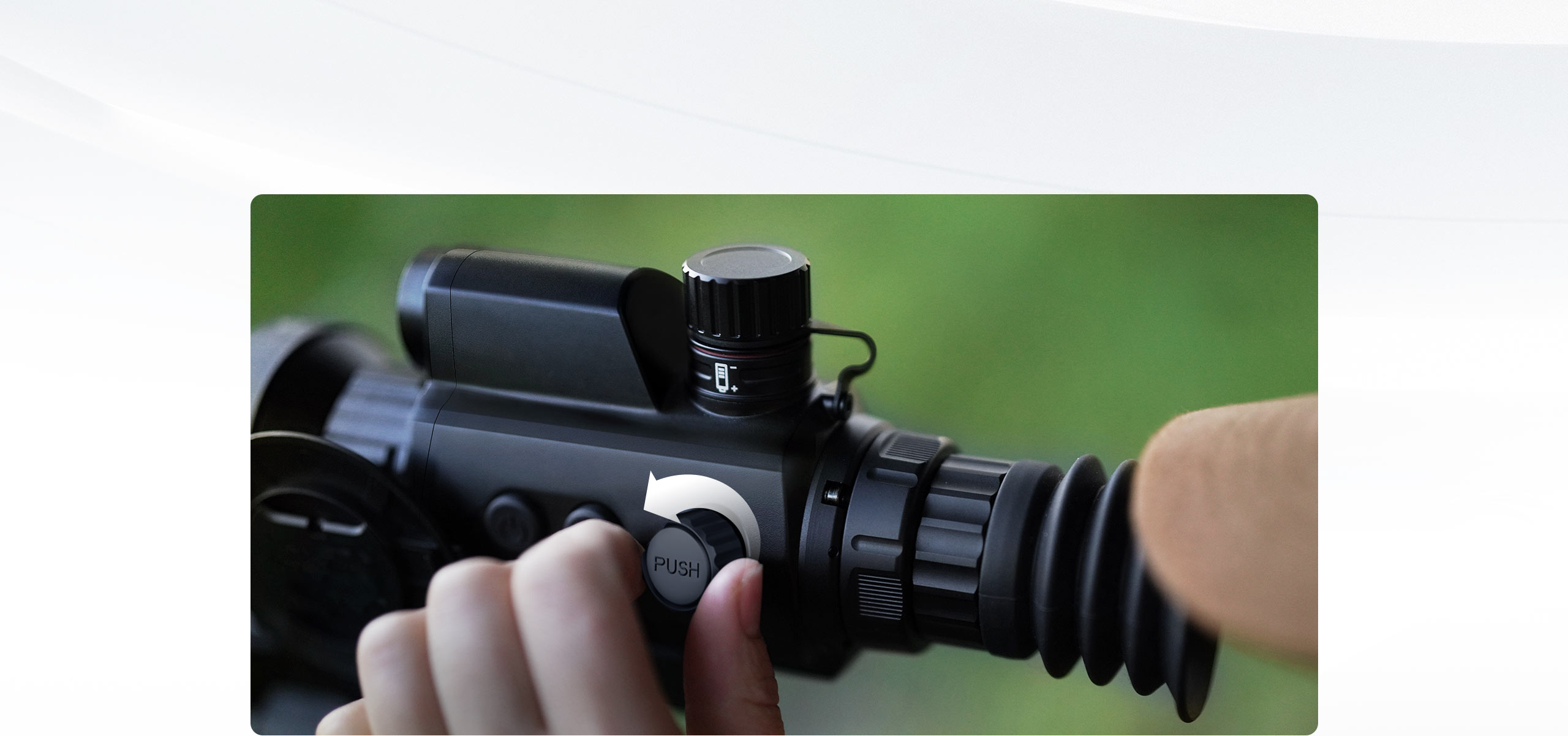

Integrated design provides hassle-free experience
PANTHER LRF 2.0 continues a one-style design with compact and reasonable structure, it provides hunters with a hassle-free operation experience.

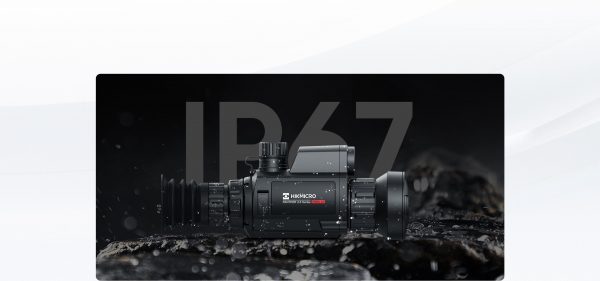

Rugged and reliable for toughest condition
PANTHER LRF 2.0 works well even in extreme temperature surroundings from -30 °C to +55 °C. IP67 waterproof rating keeps it well in conditions of high humidity/dust and heavy rain.

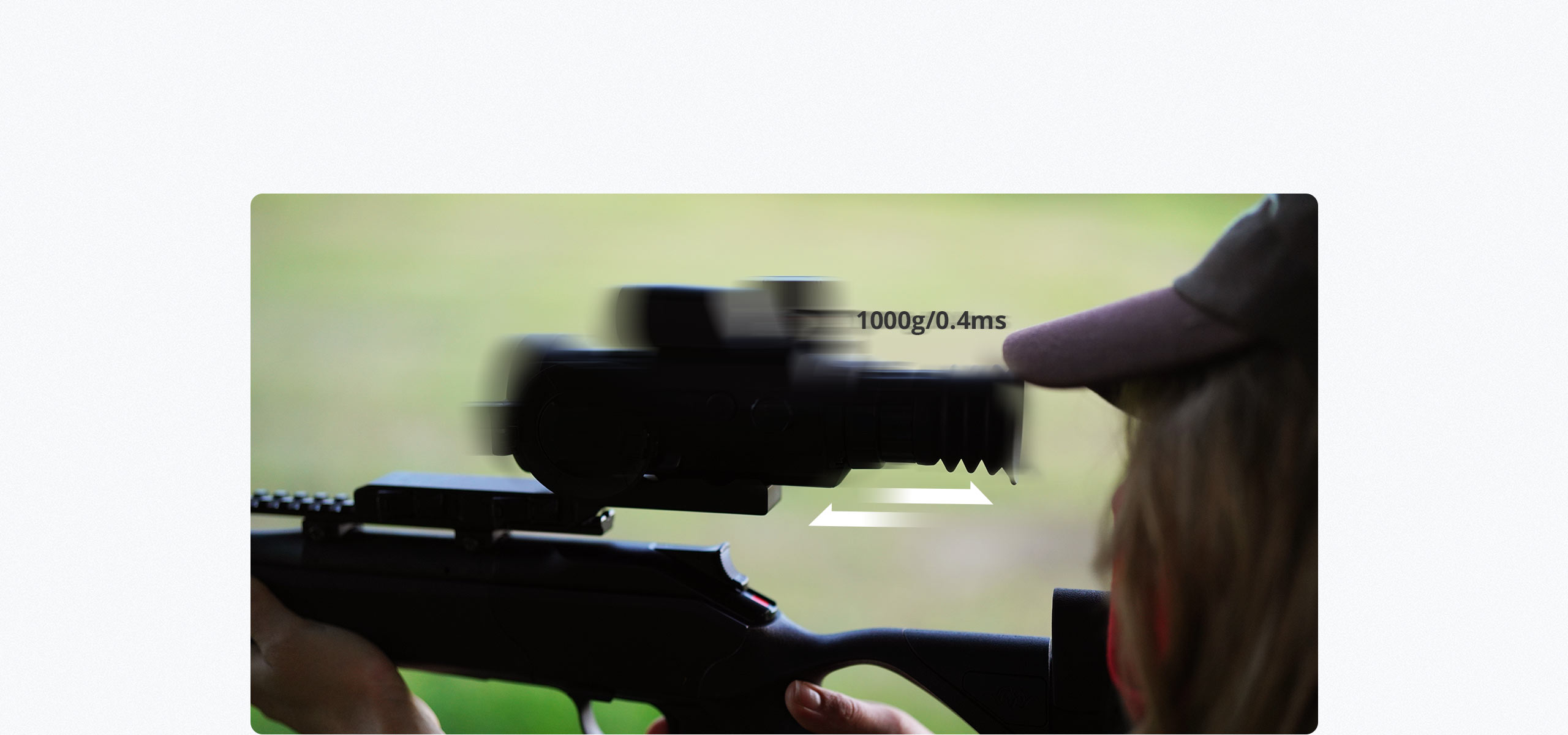

High shock resistance
Metal housing and rugged components enable PANTHER 2.0 high shock resistance up to 1000g/0.4ms on larger calibers to .375 H&H, 12-gauge and 9.3 × 64.

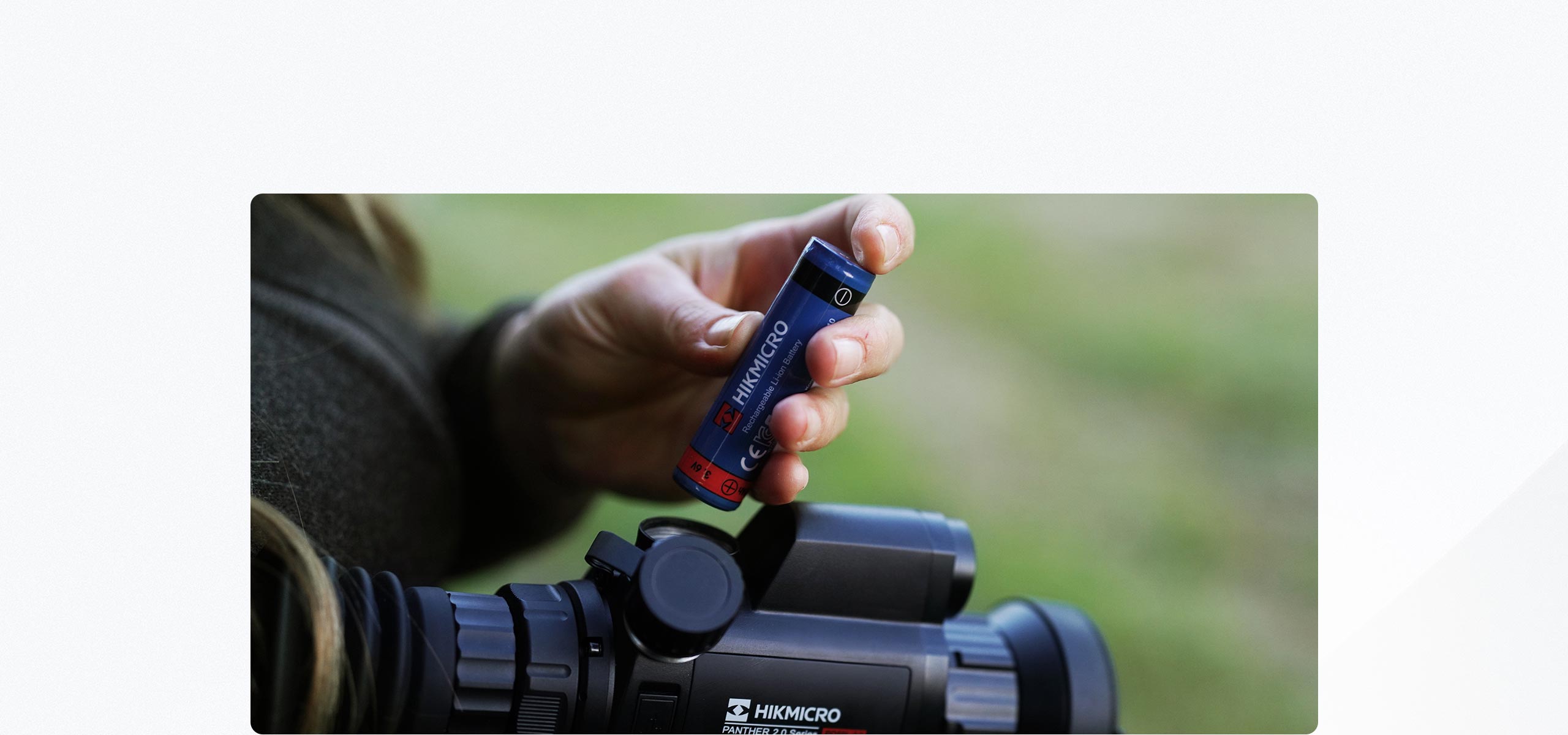

Replaceable and rechargeable battery
Two batteries and an external battery charger are included in the package box, which gives the freedom to use as long as needed even a full day.
Specification

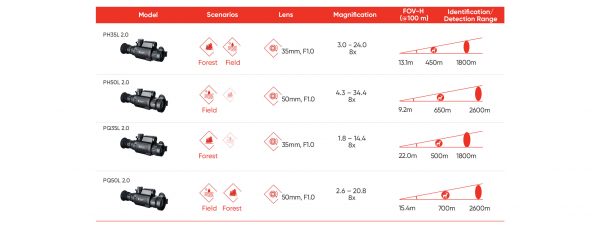

| Product Model | PH35L 2.0 | PH50L 2.0 | PQ35L 2.0 | PQ50L 2.0 |
|---|---|---|---|---|
| Thermal Module | ||||
| Image Sensor | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays |
| Max. Resolution | 384×288 | 384×288 | 640×512 | 640×512 |
| Frame Rate | 50Hz | 50Hz | 50Hz | 50Hz |
| Pixel Interval | 12μm | 12μm | 12μm | 12μm |
| NETD | Less than 20mK (25 °C, F#=1.0) | Less than 20mK (25 °C, F#=1.0) | Less than 20mK (25 °C, F#=1.0) | Less than 20mK (25 °C, F#=1.0) |
| Lens (Focal Length) | 35mm | 50mm | 35mm | 50mm |
| Detection Range | 1800m | 2600m | 1800m | 2600m |
| Field of View (H × V) | 7.5° × 5.7° / 13.1m × 10.0m | 5.3° × 4.0° / 9.3m × 7.0m | 12.5° × 10.0° / 21.9m × 17.5m | 8.8° × 7.0° / 15.4m × 12.2m |
| Min. Focusing Distance | 2m | 5m | 2m | 5m |
| Aperture | F1.0 | F1.0 | F1.0 | F1.0 |
| Magnification | 3.0× – 24.0× (8×) | 4.3× – 34.4× (8×) | 1.8× – 14.4× (8×) | 2.6× – 20.8× (8×) |
| Image Display | ||||
| Display | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED | 1024×768, 0.39 inch, OLED |
| Brightness Adjustment | Yes | Yes | Yes | Yes |
| Palettes | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Exit Pupil | 6mm | 6mm | 6mm | 6mm |
| Eye Relief | 45mm | 45mm | 45mm | 45mm |
| Diopter (Range) | -5D to 3D | -5D to 3D | -5D to 3D | -5D to 3D |
| Tone Adjustment | Cold, Warm | Cold, Warm | Cold, Warm | Cold, Warm |
| General | ||||
| Protection Level | IP67 | IP67 | IP67 | IP67 |
| Weight | 518g without Battery | 585g without Battery | 518g without Battery | 585g without Battery |
| Dimension | 214.6 mm x 67.0 mm x 87.1 mm | 226.8 mm x 73.3 mm x 87.1 mm | 214.6 mm x 67.0 mm x 87.1 mm | 226.8 mm x 73.3 mm x 87.1 mm |
| Working Temperature | -30 °C to +55 °C (-22 °F to 131°F) | -30 °C to +55 °C (-22 °F to 131°F) | -30 °C to +55 °C (-22 °F to 131°F) | -30 °C to +55 °C (-22 °F to 131°F) |
| System | ||||
| Record Video | Yes | Yes | Yes | Yes |
| Capture Snapshot | Yes | Yes | Yes | Yes |
| Hotspot | Yes | Yes | Yes | Yes |
| Standby Mode | Yes | Yes | Yes | Yes |
| Storage | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) | Built-in EMMC (16GB) |
| PIP | Yes | Yes | Yes | Yes |
| Hot Track | Yes | Yes | Yes | Yes |
| Distance Measurement | Yes | Yes | Yes | Yes |
| Audio Recording | Yes | Yes | Yes | Yes |
| Recoil-activation Recording | Yes | Yes | Yes | Yes |
| Max. Recoil | 1000g/0.4ms | 1000g/0.4ms | 1000g/0.4ms | 1000g/0.4ms |
| Ballistic Calculation | Yes | Yes | Yes | Yes |
| Zeroing Profiles | 5 | 5 | 5 | 5 |
| Power Supply | ||||
| Battery Type | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | ≥6h (25 °C, with hotspot off) | ≥6h (25 °C, with hotspot off) | ≥5h (25 °C, with hotspot off) | ≥5h (25 °C, with hotspot off) |
| Type-C Power Supply | 5V DC, 2 A | 5V DC, 2 A | 5V DC, 2 A | 5V DC, 2 A |
| Supports External Power Supply | Yes | Yes | Yes | Yes |
| Laser Rangefinder | ||||
| Safety Class for Laser | Class 1 | Class 1 | Class 1 | Class 1 |
| Wavelength | 905nm | 905nm | 905nm | 905nm |
| Max. Measuring Range | 600m | 600m | 600m | 600m |
| Measurement Accuracy | ±1m | ±1m | ±1m | ±1m |
| Min. Measuring Range | 10m | 10m | 10m | 10m |
Advantages
- New UI
- Up to 2600m detection range
- Wide-FoV
- Recoil-activation and audio recording
