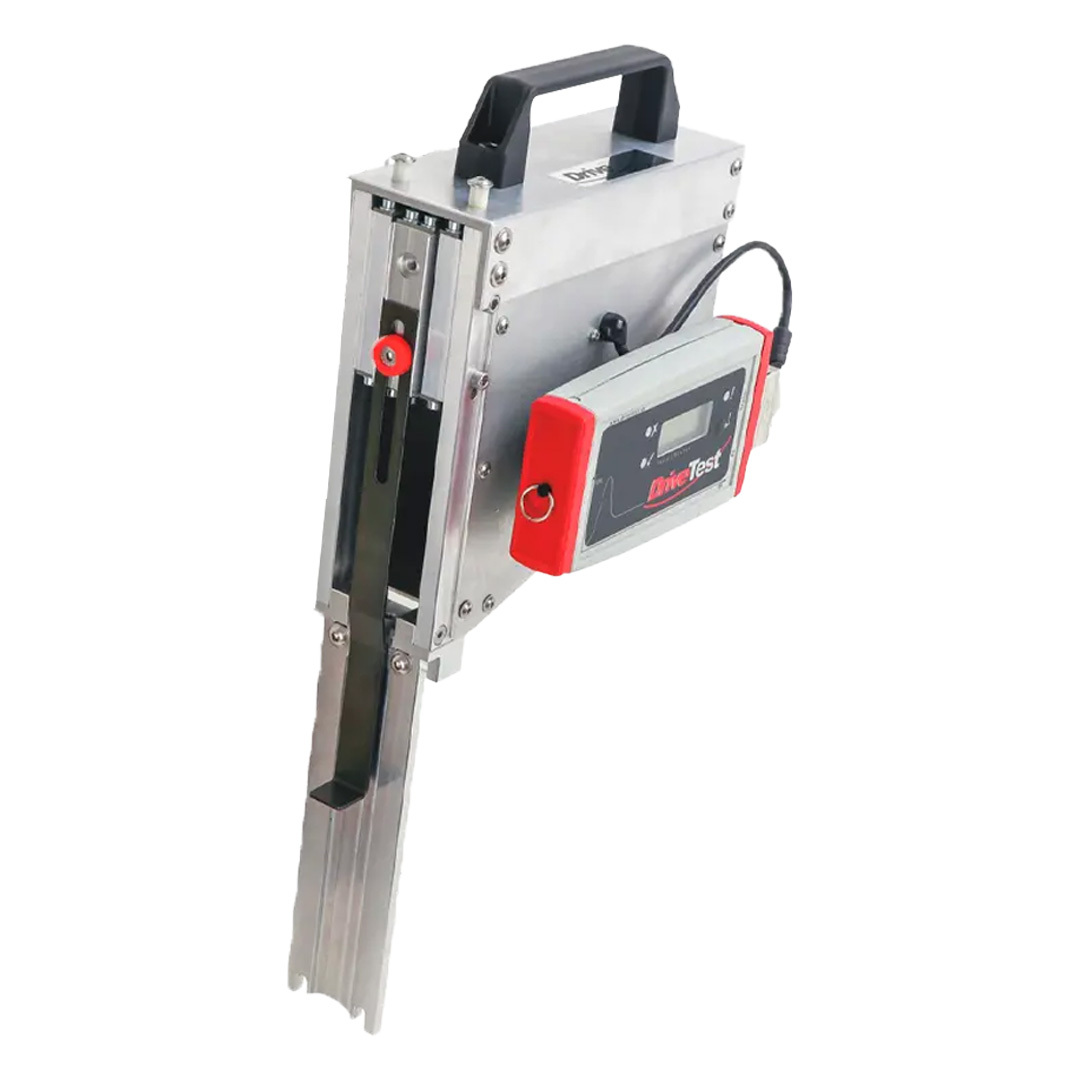

Closing force measurement for sliding roofs, automatic window lifters and tailgates
Description
Closing force measurement for sliding roofs, automatic window lifters and tailgates
For measurement set-ups in testing and manufacturing, quick and easy execution is of great importance. For this purpose, software has been developed that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be transferred to a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test sequence.
– Support of relevant standards – 2000/4 EG, US Standard FMVSS 118, ECE-R 21; additional measurement
with low spring stiffness: 2 N/mm
– Precise measurements – due to friction-free guidance and platform load cell
– Robust design – durable aluminum ensures a long service life in tough use
– Professional, extensive PC software – PinchPilot leaves nothing to be desired
– Complete scope of supply – includes all necessary components for tailgates, windows and
Sunroofs packed in a high-quality transport case
– Accessories for every application – spacers (200 mm), force introductions (clamp and platform),
Monopod, Bumper Support Block, Window Support Block, Sunroof Support Block,
sunroof spacer
Specification
| FM208 | |
| Application of force | on one side |
| Measuring range | 0 … 200 N |
| Accuracy | +/– 3 N (0-100 N) or +/– 3 % (> 100 N) |
| Spring stiffness | 2 N/mm, +/–(10%) |
| Gap width | 30 mm / 1.1″ |
| Area | 20 x 20 mm / 0.7 x 0.7″ |
| Force sensor | DMS bridge |
| Dimensions | ca. 220 x 80 x 250 mm / 8.6 x 3.1 x 9.8″ |
| Weight | ca. 2.5 kg / 5.5 lb |
| Display device SEB2.2 | |
| – Display device SEB2.2 data logger unit with LCD display | |
| and LED status indicators, control button, USB interface | |
| – Optional PC-controlled measurement | |
| – Lithium polymer battery | |
| – Real time clock | |
| – Memory for 100 measurements | |
| – Sensor and PC interface | |
| – Peak value display and effective power display | |
| – Rating display i. O./n. i. O. | |
| PC evaluation software PinchPilot | |
| – Multilingual (DE, EN, IT, FR, ES) | |
| – Graphic representation of the force curve | |
| – Calculation of the standard-relevant characteristic values | |
| – Evaluation according to different guidelines possible | |
| – Custom policy adjustable | |
| – Log printout | |
| – Data export (Excel, CSV, PDF) | |
| – Optional measuring point identification | |
| – System requirements software Software PinchPilot (see tab Software/App) | |
Delivery Scope
1 x Display unit SEB2 separate with LCD display, LED status indicators, operating button and USB
interface
1 x 9 V block battery
1 x Accessory for each application: Spacer (200 mm), force inputs (clamp and platform),
monopod, bumper support block, window support block, sunroof support block,
sliding roof spacer
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB stick with PC evaluation software PinchPilot
1 x Manual
1 x ISO calibration certificate
